- Model: AGAMMIXS70B-2T-CS

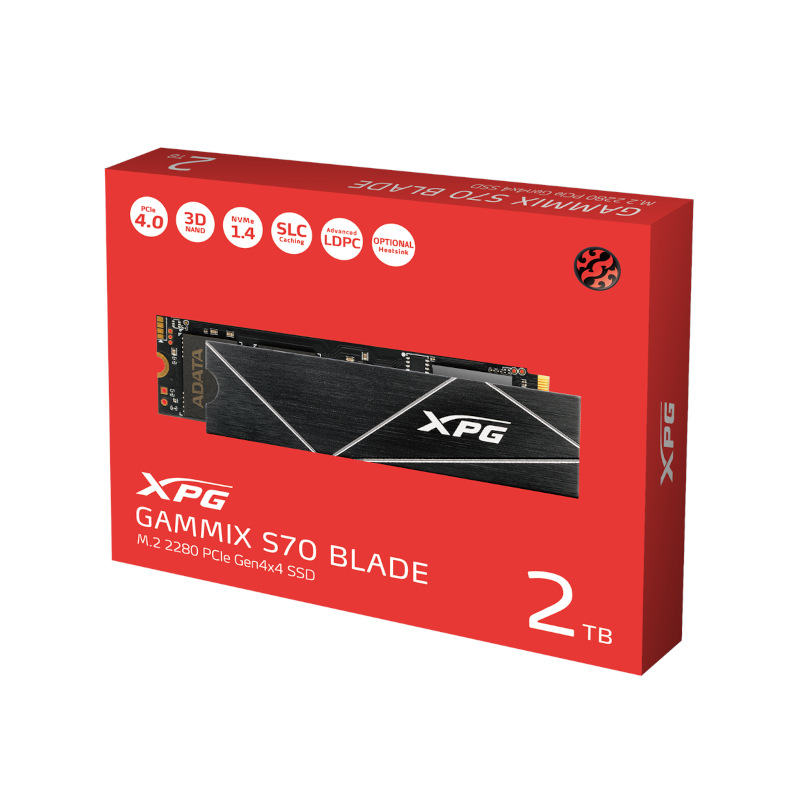

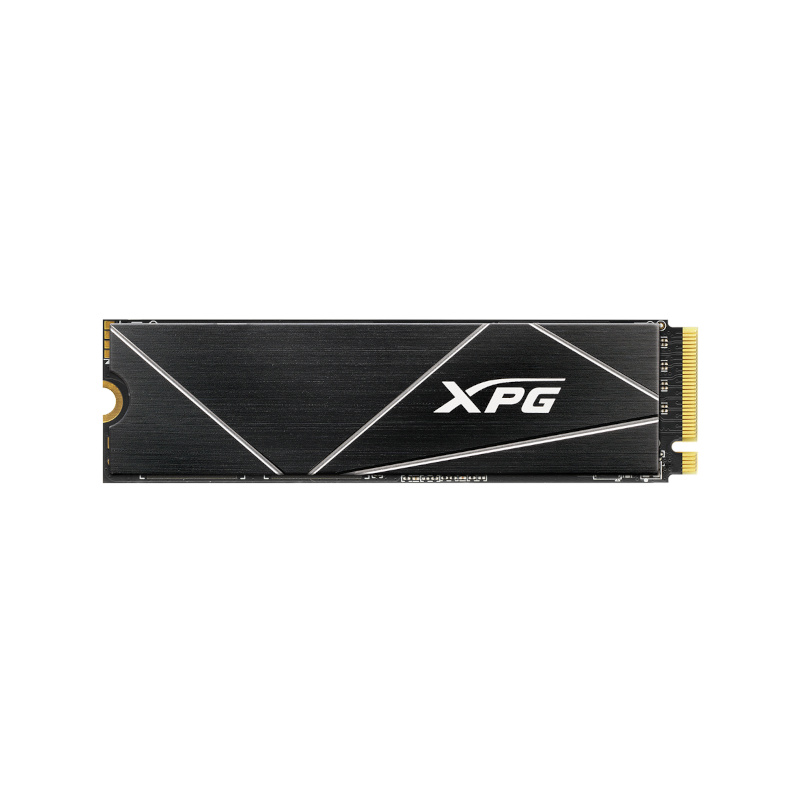

XPG GAMMIX S70 BLADE PCIe Gen4x4 M.2 2280 Solid State Drive – 2TB
AGAMMIXS70B-2T-CS
Features
- R/W speed up to 7,400/6,800MB/s for PC/laptop
- Ultra-fast PCIe Gen4x4 interface
- Compliant with NVMe 1.4
- Work with PS5
- Read speed up to 6,100MB/s for PS5
- High-temperature resistant aluminum heat sink which is able
to reduce temperatures by up to 20%
- Capacity up to 2TB
- SLC Caching and DRAM cache buffer
- Advanced LDPC ECC Technology
- E2E Data Protection and RAID Engine
- AES 256-bit encryption support
- Compact M.2 2280 form factor – ideal for gaming and high-end
desktops
|
Specification |
|
|
Capacity |
2 TB |
|
NAND Flash |
3D NAND |
|
Interface |
PCIe Gen4x4 |
|
Form Factor |
M.2 2280 |
|
Controller |
IG5236A1 |
|
MTBF |
2,000,000 hours |
|
Dimensions (LxWxH) |
80 x 22 x 4.3mm (with heatsink) 80 x 22 x 3.3mm (without heatsink) |
|
Weight |
10g / 0.35oz (with heat sink) 7g / 0.24oz (without heat sink) |
|
Sequential Read (Max) |
Up to 7400MB/s |
|
Sequential Write (Max) |
Up to 6800MB/s |
|
4KB Random Read IOPS(Max) |
Up to 750K |
|
4KB Random Write IOPS(Max) |
Up to 750K |
|
Sequential Read (Max PS5) |
up to 6,100MB/s (PS5) |
|
Operating temperature |
0°C - 70°C |
|
Storage temperature |
-40°C - 85°C |
|
Shock resistance |
1500G/0.5ms |
|
Certifications |
CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS |
|
Terabytes Written (TBW)(Max Capacity) |
1480TB |
|
Warranty |
5-year limited warranty |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
