- Model: PYLON650B-BKCEU

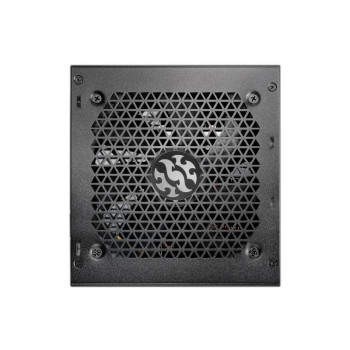

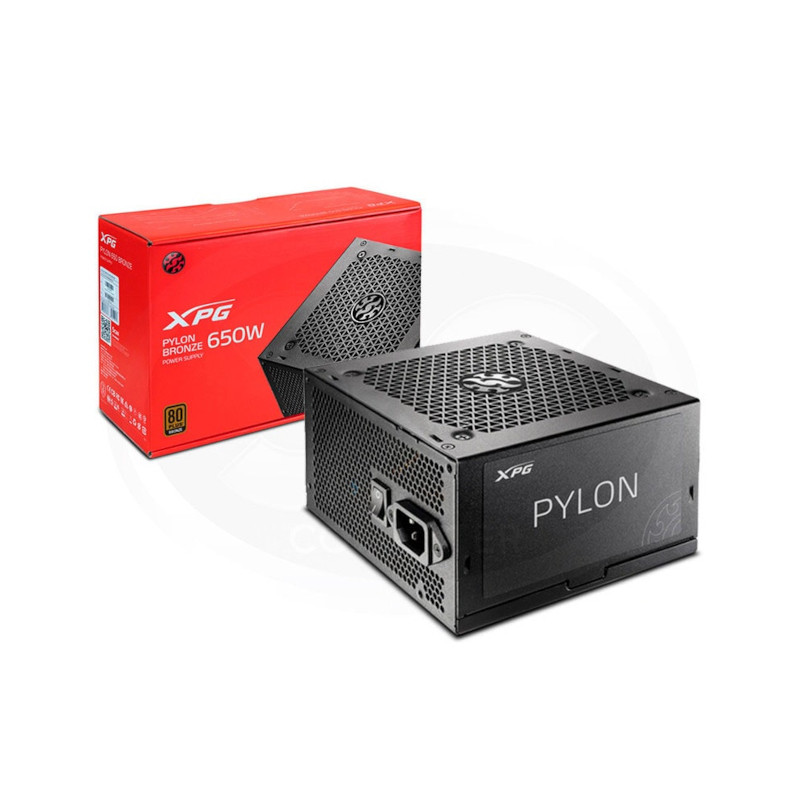

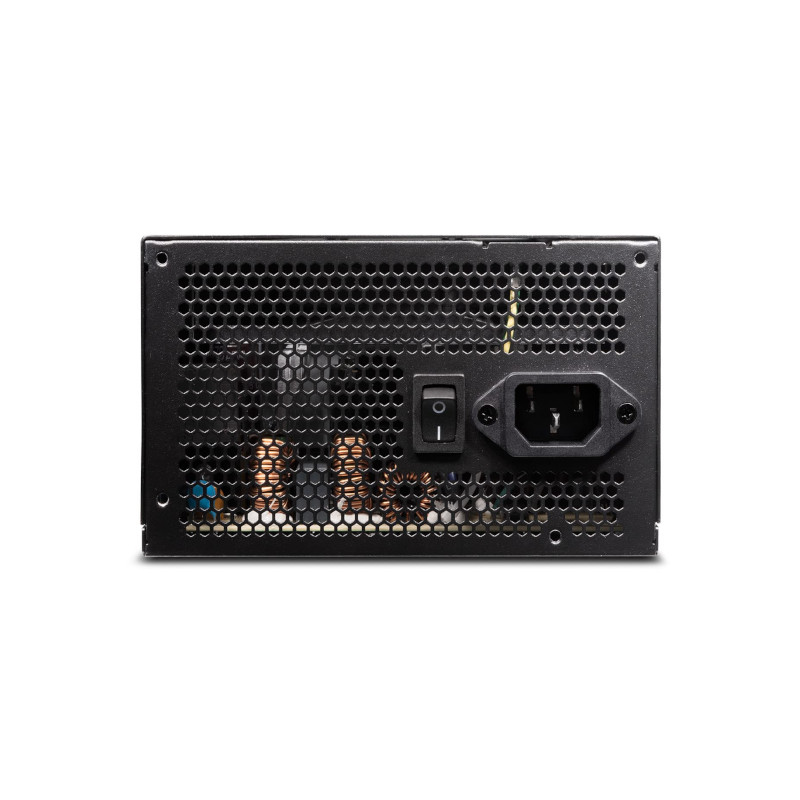

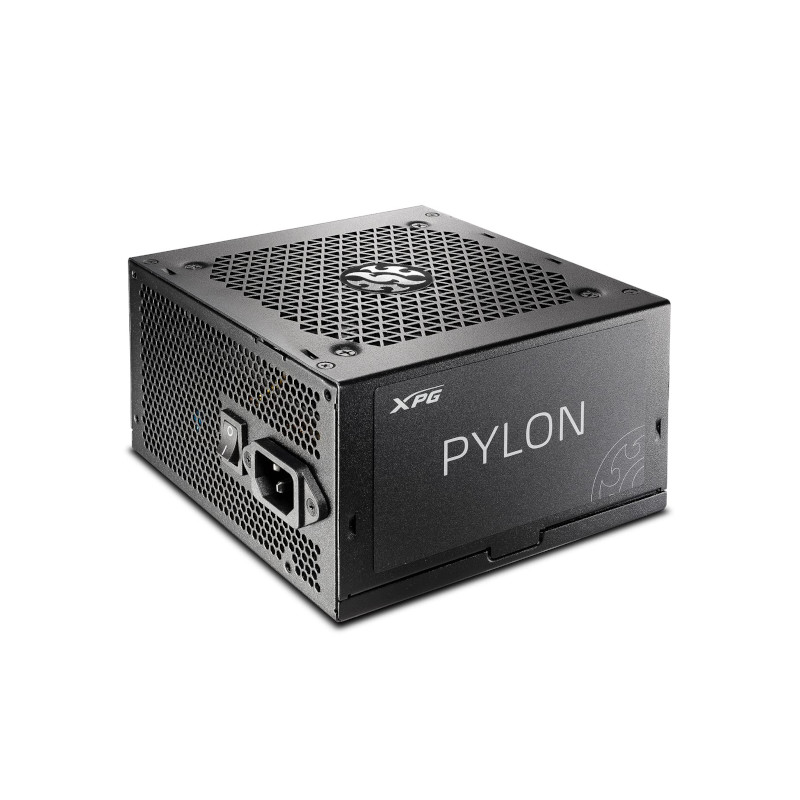

PYLON Power Supply Unit – 650 WATT
PYLON650B-BKCEU
- DC-to-DC Circuit in
BRONZE Grade
- 80 Plus Bronze
Certification
- Cybenetics ETA and
LAMBDA Certified
- 120mm Fluid Dynamic
Bearing (FDB) Fan
- Main Japanese
Capacitor at 105°C
- 8 Industrial-Level
Protections
Specification |
|
Dimensions (L x W
x H) |
140 x 150 x 86mm |
80 PLUS RATING |
BRONZE |
ATX Version |
Intel ATX 12V
V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52) |
Protections |
OCP / OVP / UVP /
OPP / SCP / OTP / NLO / SIP |
Certification |
CE / UKCA / CB /
FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC |
PFC |
0.99 |
Input Voltage |
100V-240V |
Input Current |
10A/5A |
Input Frequency |
50Hz - 60Hz |
Operating
Temperature |
50°C |
Fan Size |
120mm |
Fan Bearing |
FDB (Fluid
Dynamic Bearing)* |
Fan Speed |
2,000 RPM |
MTBF |
100K Hours at 25℃ |
ATX 24 Pin
Connector |
1 |
EPS 8 (4+4) Pin
Connector |
1 |
EPS 8 Pin
Connector |
1 |
PCI-E 6+2 Pin
Connector |
4 |
SATA Connector |
8 |
Peripheral 4 Pin
Connector |
3 |
Floppy 4 Pin
Connector |
1 |
Weight |
Product:1.87kg (4.1lb) ±5% with Package:2.38kg (5.2lb) ±5% |
Warranty |
5 Years (3 years
when purchased before 2022 January) |
Note* |
Price,
feature and specifications are subject to change without notice. |
