- Model: PYLON750B-BKCEU

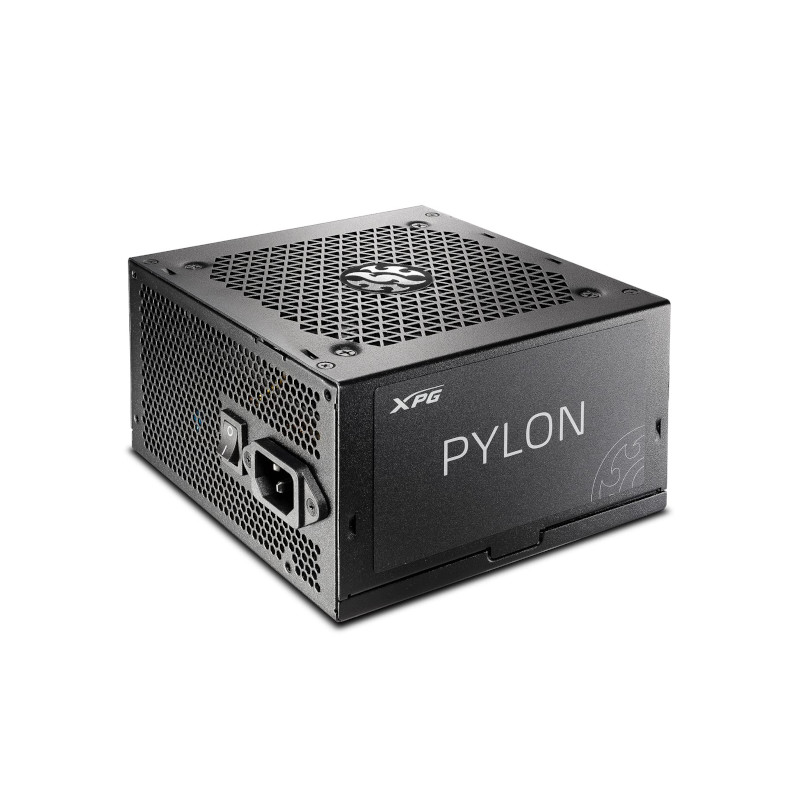

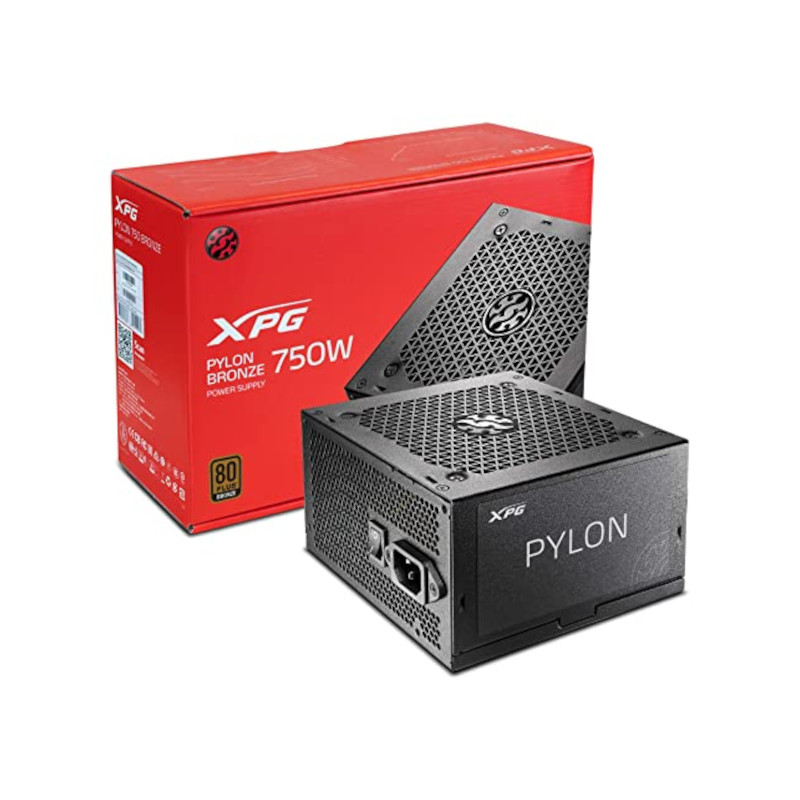

PYLON Power Supply Unit – 750 WATT
PYLON750B-BKCEU
- DC-to-DC Circuit in
BRONZE Grade
- 80 Plus Bronze
Certification
- Cybenetics ETA and
LAMBDA Certified
- 120mm Fluid Dynamic
Bearing (FDB) Fan
- Main Japanese
Capacitor at 105°C
- 8 Industrial-Level
Protections
Specification |
|
Dimensions (L x W x H) |
140 x 150 x 86mm |
80 PLUS RATING |
BRONZE |
ATX Version |
Intel ATX 12V V2.4 (Timing complies with Intel
ATX12V Specific guidelines to version 2.52) |
Protections |
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP |
Certification |
CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV /
cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC |
PFC |
0.99 |
Input Voltage |
100V-240V |
Input Current |
10A/5A |
Input Frequency |
50Hz - 60Hz |
Operating Temperature |
50°C |

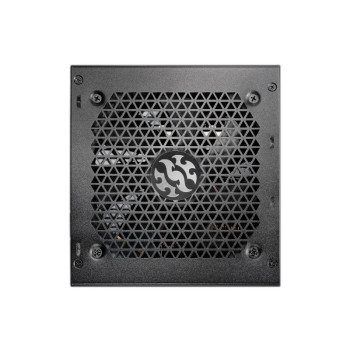

Fan Size |
120mm |
Fan Bearing |
FDB (Fluid Dynamic Bearing)* |
Fan Speed |
2,000 RPM |
MTBF |
100K Hours at 25℃ |
ATX 24 Pin Connector |
1 |
EPS 8 (4+4) Pin Connector |
1 |
EPS 8 Pin Connector |
1 |
PCI-E 6+2 Pin Connector |
4 |
SATA Connector |
8 |
Peripheral 4 Pin Connector |
3 |
Floppy 4 Pin Connector |
1 |
Weight |
Product:2.12kg (4.7lb) ±5% with Package:2.63kg (5.8lb) ±5% |
Warranty |
5 Years (3 years when purchased before 2022
January) |
Note* |
Price,
feature and specifications are subject to change without notice. |
