- Model: ASX6000PNP-256GT-C

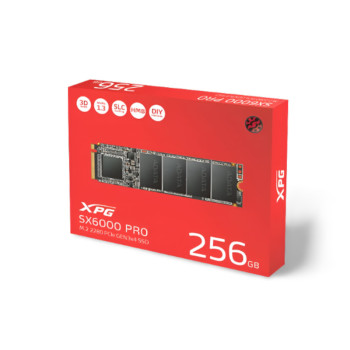

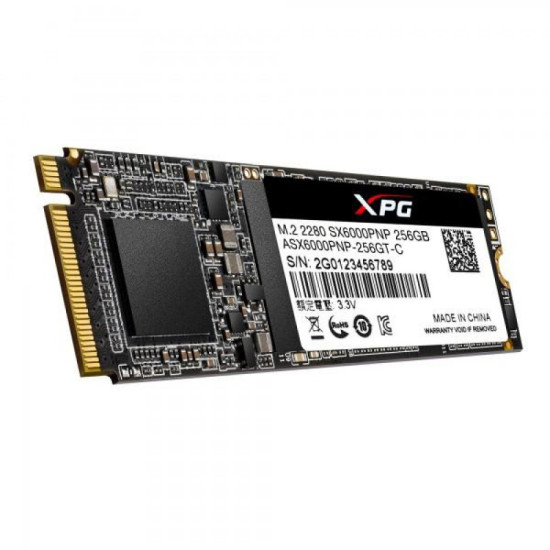

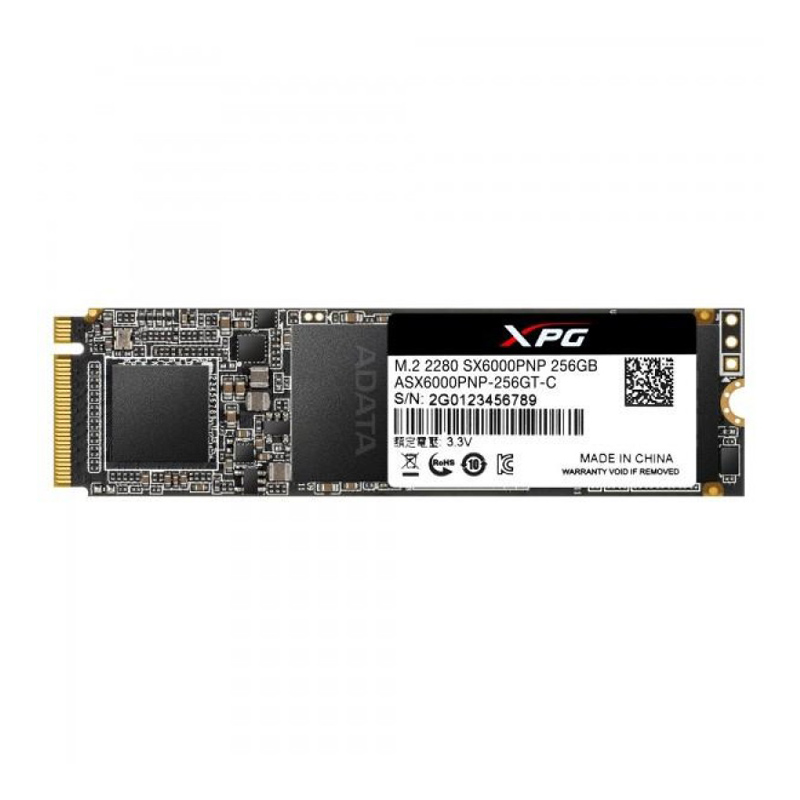

XPG SX6000 Pro PCIe Gen3x4 M.2 2280 Solid State Drive
Boot, load, and transfer faster with the XPG SX6000 Pro PCIe Gen3x4 M.2 2280 solid state drive (SSD). With support for NVMe 1.3 and equipped with 3D NAND Flash, it offers up to 4 times faster performance than SATA SSDs and up to 1TB of capacity. What’s more, the SX6000 Pro is slimmer than standard M.2 2280 SSDs for a higher level of compatibility thanks to its single-sided design.
Features
- Ultra-fast PCIe Gen3x4 interface: R/W speed up to 2100/1500MB/s
- NVMe 1.3 support
- 2 ND generation 64-layer 3D NAND Flash
- Advanced LDPC ECC Technology
- HMB (Host Memory Buffer) and SLC Caching
- Single-sided design – 2.15mm thick
- Compact M.2 2280 form factor – ideal for gaming notebooks and high-end desktops
Specification | |
Capacity | 256GB |
Controller | Realtek |
NAND Flash | 2 nd Generation 64-layer 3D TLC |
Interface | PCIe Gen3x4 |
Form factor | M.2 2280 |
MTBF | 2,000,000 hours |
Dimensions (L x W x H) | 22 x 80 x 2.15mm |
Weight | 8g |
Power Consumption | 0.33W Active (Typical), 0.14W Slumber (Typical) (*measured by power meter) |
Operating temperature | 0°C-70°C |
Storage temperature | -40°C-85°C |
Shock resistance | 1500G/0.5ms |
LDPC | ECC Engine |
Error correction | RoHS, CE, FCC, BSMI, VCCI, KC |
Warranty | 5 years |
Note* | Price, feature and specifications are subject to change without notice. |
