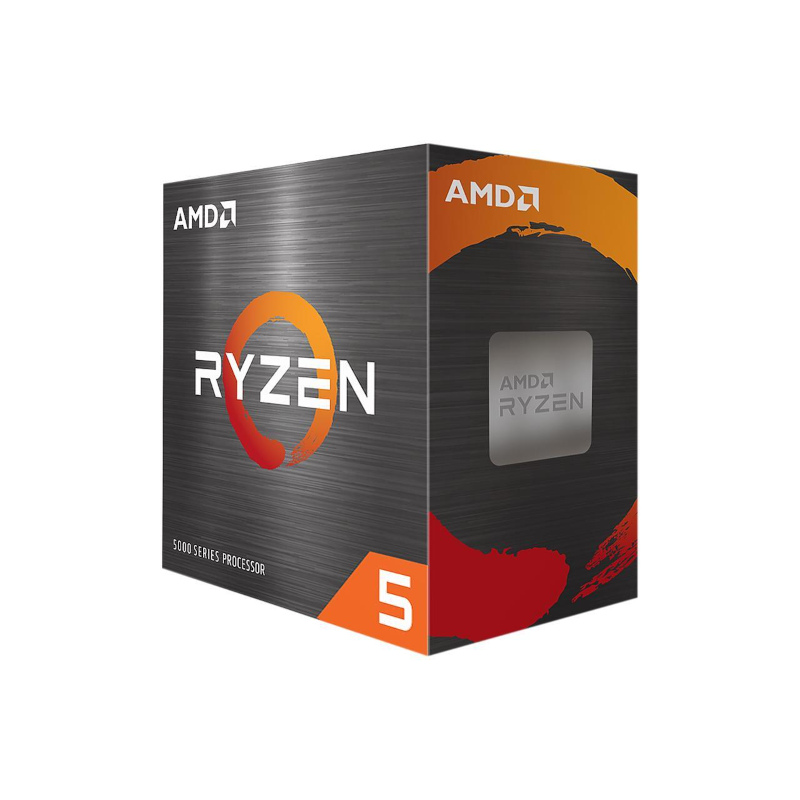

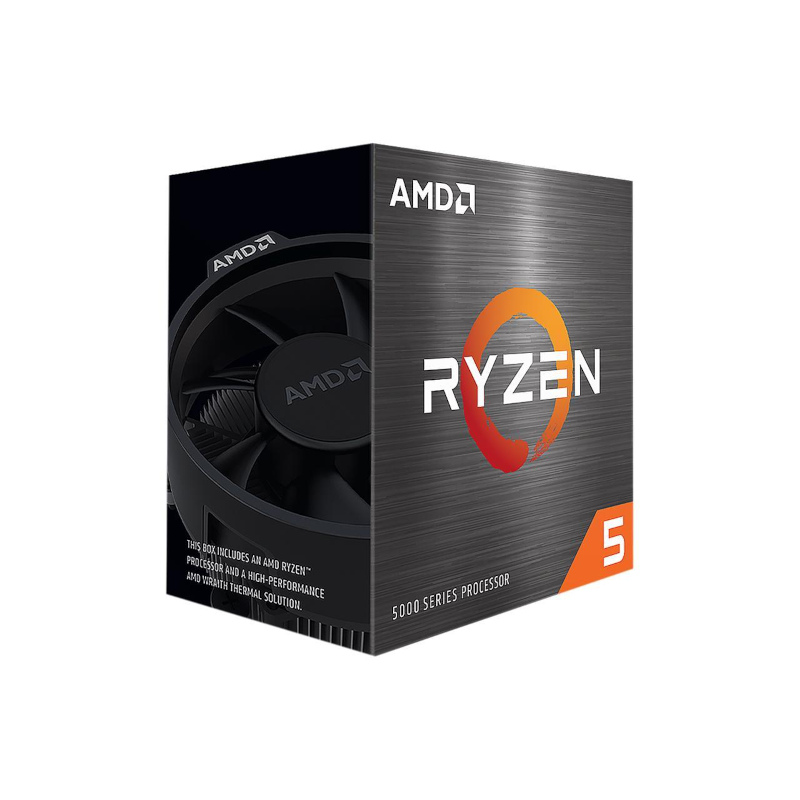

AMD Ryzen 5 5600 Processor

General Specifications

Platform: Desktop

Product Family: AMD Ryzen™ Processors

Product Line: AMD Ryzen™ 5 Desktop Processors

# of CPU Cores: 6

# of Threads: 12

Max. Boost Clock: Up to 4.4GHz

Base Clock: 3.5GHz

L1 Cache: 384KB

L2 Cache: 3MB

L3 Cache: 32MB

Default TDP: 65W

Processor Technology for CPU Cores: TSMC 7nm FinFET

Unlocked for Overclocking: Yes

CPU Socket: AM4

Socket Count: 1P

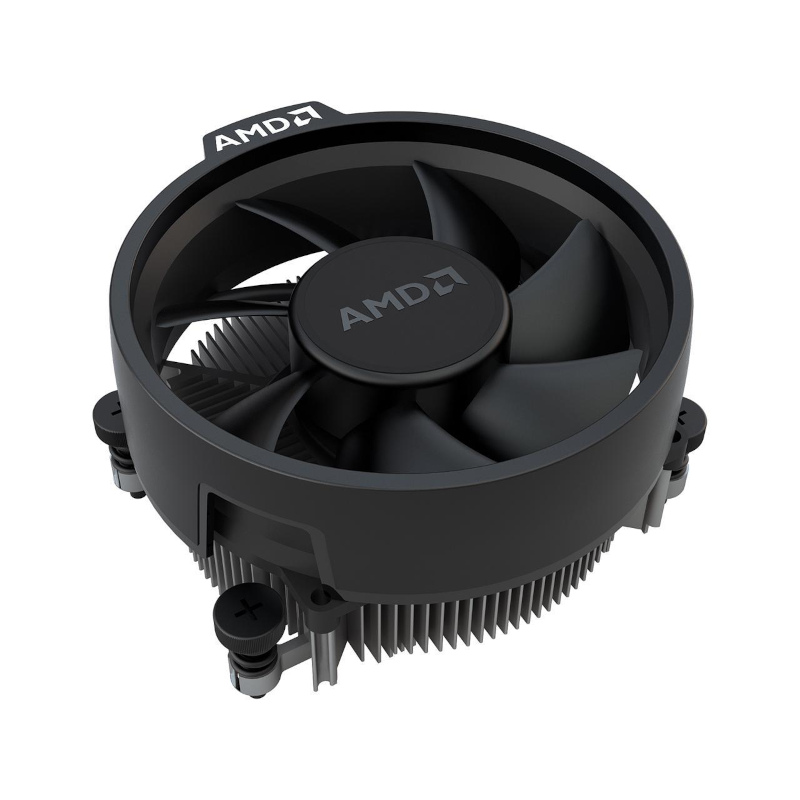

Thermal Solution (PIB): AMD Wraith Stealth

Max. Operating Temperature (Tjmax): 90°C

Launch Date: 4/4/2022

*OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express® Version: PCIe 4.0

System Memory Type: DDR4

Memory Channels: 2

System Memory Specification: Up to 3200MHz

Max Memory Speed:

2x1R                      DDR4-3200

2x2R                      DDR4-3200

4x1R                      DDR4-2933

4x2R                      DDR4-2667

Graphics Capabilities

Required Separate Graphics Card for Video Output

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
