General Specifications

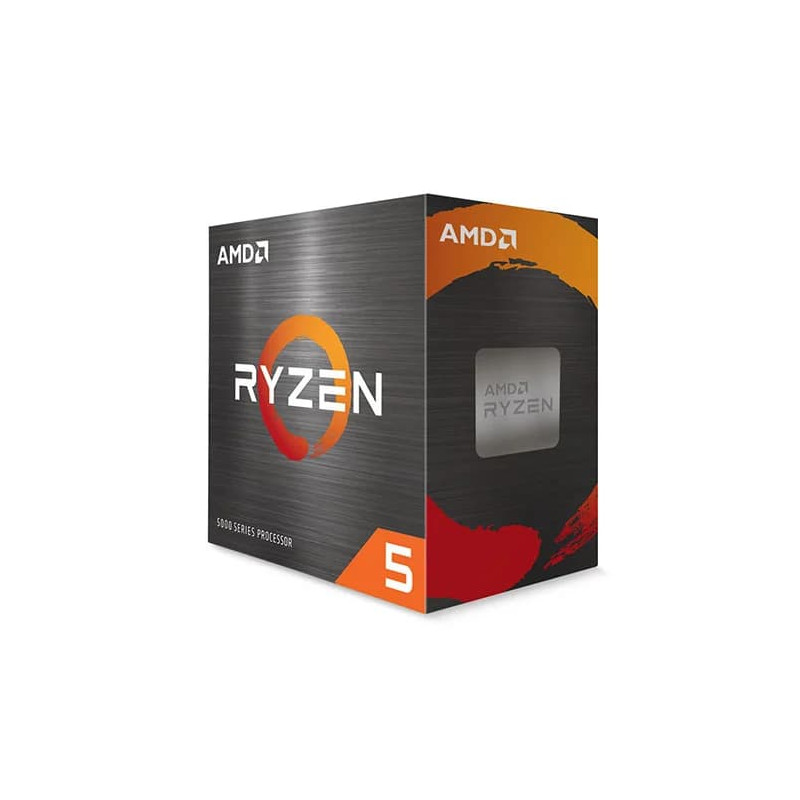

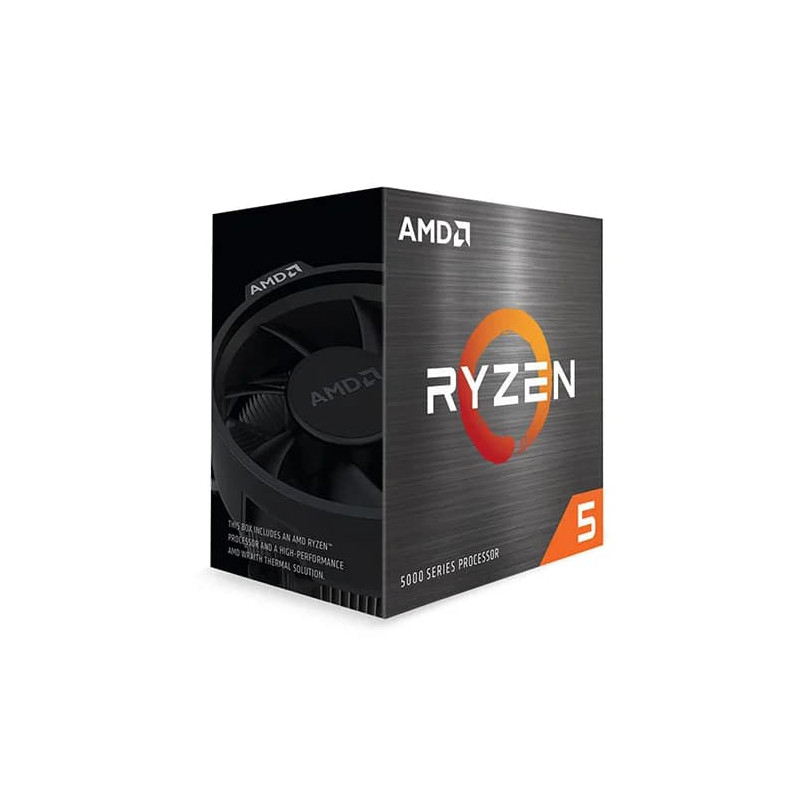

Name: AMD Ryzen 5 5600F

Family: Ryzen

Series: Ryzen 5000 Series

Form Factor: Desktops, Boxed Processor

Market Segment: Mainstream Desktop

Former Codename: Vermeer

Processor Architecture: Zen 3

# of CPU Cores: 6

Multithreading (SMT): Yes

# of Threads: 12

Max. Boost Clock: Up to 4 GHz

Base Clock: 3 GHz

L1 Cache: 384 KB

L2 Cache: 3 MB

L3 Cache: 32 MB

Default TDP: 65W

Processor Technology for CPU Cores: TSMC 7nm FinFET

Processor Technology for I/O Die: 12nm (Globalfoundries)

CPU Compute Die (CCD) Size: 74mm²

I/O Die (IOD) Size: 125mm²

Package Die Count: 2

Unlocked for Overclocking: Yes

CPU Socket: AM4

Supporting Chipsets: X570 , X470 , X370 , B550 , B450 , B350 , A520

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64

Max. Operating Temperature (Tjmax): 95°C

*OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps): 4

Native USB 3.2 Gen 1 (5Gbps): 0

Native USB 2.0 (480Mbps): 0

Native SATA Ports: 2

PCI Express® Version: PCIe® 4.0

Native PCIe® Lanes (Total/Usable): 24 , 20

NVMe Support: Boot , RAID0 , RAID1 , RAID10

System Memory Type: DDR4

Memory Channels: 2

Max. Memory: 128 GB

System Memory Subtype: UDIMM

System Memory Specification: Up to 3200 MT/s

Max Memory Speed:

2x1R      DDR4-3200

2x2R      DDR4-3200

4x1R      DDR4-2933

4x2R      DDR4-2667

ECC Support: Yes (Requires mobo support)

Graphics Capabilities

Graphics Model: Discrete Graphics Card Required

Key Features

Supported Technologies: AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
