General Specifications

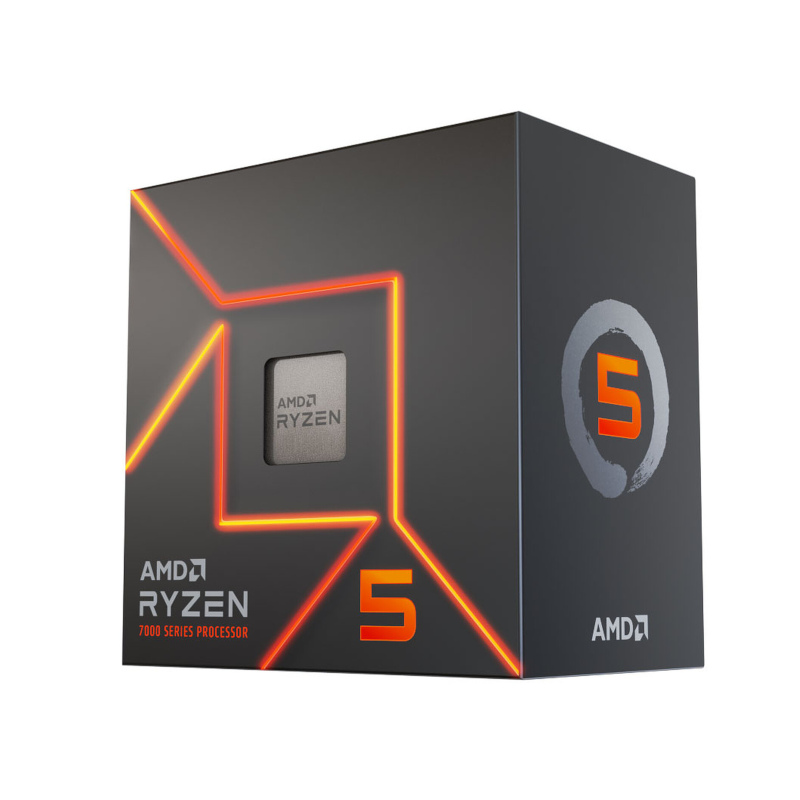

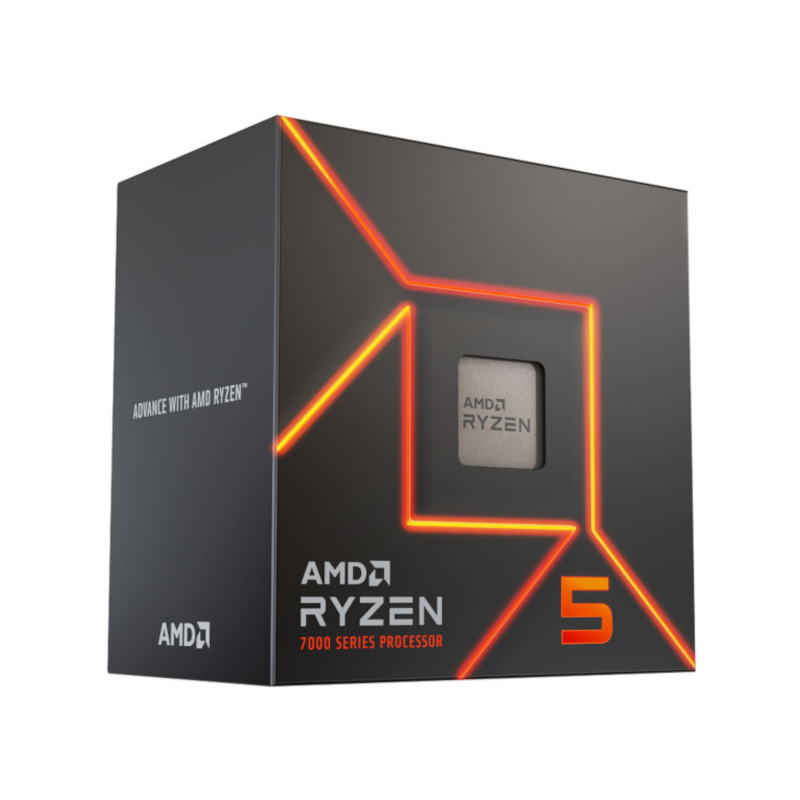

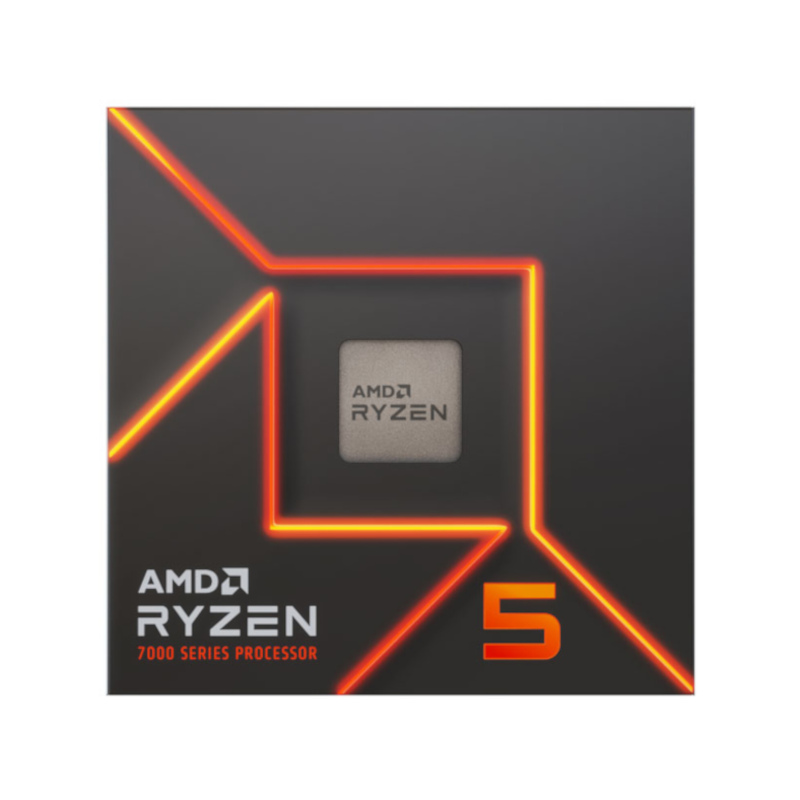

Name: AMD Ryzen 5 7500F

Family: Ryzen

Series: Ryzen 7000 Series

Form Factor: Desktops, Boxed Processor

Market Segment: Enthusiast Desktop

AMD PRO Technologies: No

Regional Availability: Global

Former Codename: Raphael AM5

Processor Architecture: Zen 4

# of CPU Cores: 6

Multithreading (SMT): Yes

# of Threads: 12

Max. Boost Clock: Up to 5 GHz

Base Clock: 3.7 GHz

L1 Cache: 384 KB

L2 Cache: 6 MB

L3 Cache: 32 MB

Default TDP: 65W

Processor Technology for CPU Cores: TSMC 5nm FinFET

Processor Technology for I/O Die: TSMC 6nm FinFET

CPU Compute Die (CCD) Size: 71mm²

I/O Die (IOD) Size: 122mm²

Package Die Count: 2

Unlocked for Overclocking: Yes

AMD EXPO™ Memory Overclocking Technology: Yes

Precision Boost Overdrive: Yes

Curve Optimizer Voltage Offsets: Yes

AMD Ryzen™ Master Support: Yes

CPU Socket: AM5

Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB): AMD Wraith Stealth

Max. Operating Temperature (Tjmax): 95°C

*OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps): 4

Native USB 3.2 Gen 1 (5Gbps): 0

Native USB 2.0 (480Mbps): 1

Native SATA Ports: 0

PCI Express® Version: PCIe® 5.0

Native PCIe® Lanes (Total/Usable): 28 , 24

Additional Usable PCIe Lanes from Motherboard:

X670E   12x Gen4

X670     12x Gen4

B650E   8x Gen4

B650     8x Gen4

A620     4x Gen3

NVMe Support: Boot , RAID0 , RAID1 , RAID10

System Memory Type: DDR5

Memory Channels: 2

Max. Memory: 128 GB

System Memory Subtype: UDIMM

Max Memory Speed:

2x1R      DDR5-5200

2x2R      DDR5-5200

4x1R      DDR5-3600

4x2R      DDR5-3600

ECC Support: Yes (Requires mobo support)

Graphics Capabilities

Graphics Model: Discrete Graphics Card Required

Key Features

AMD EXPO™ Technology , AMD Ryzen™ Technologies

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
