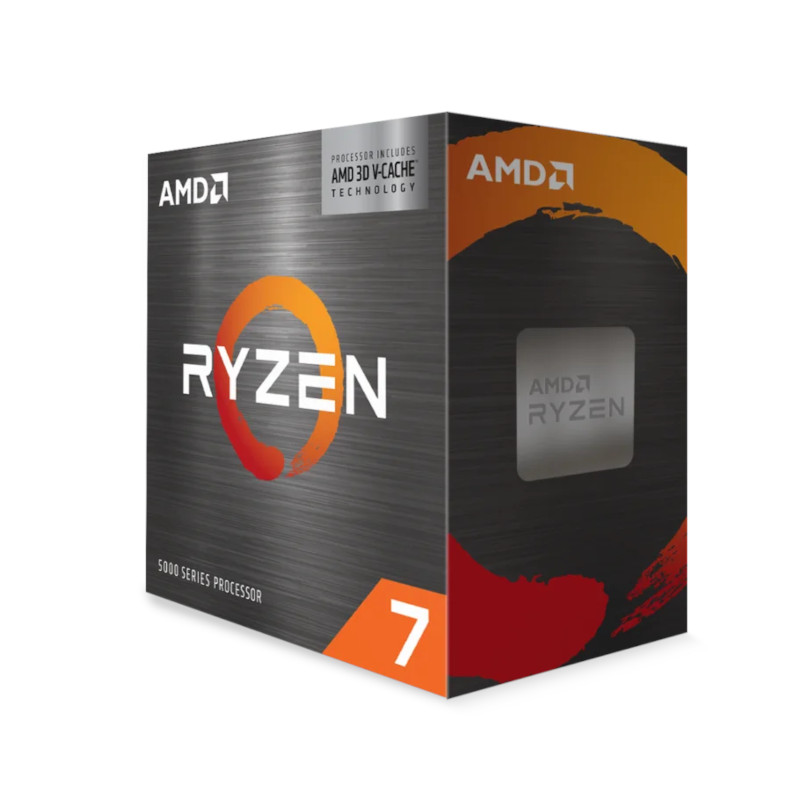

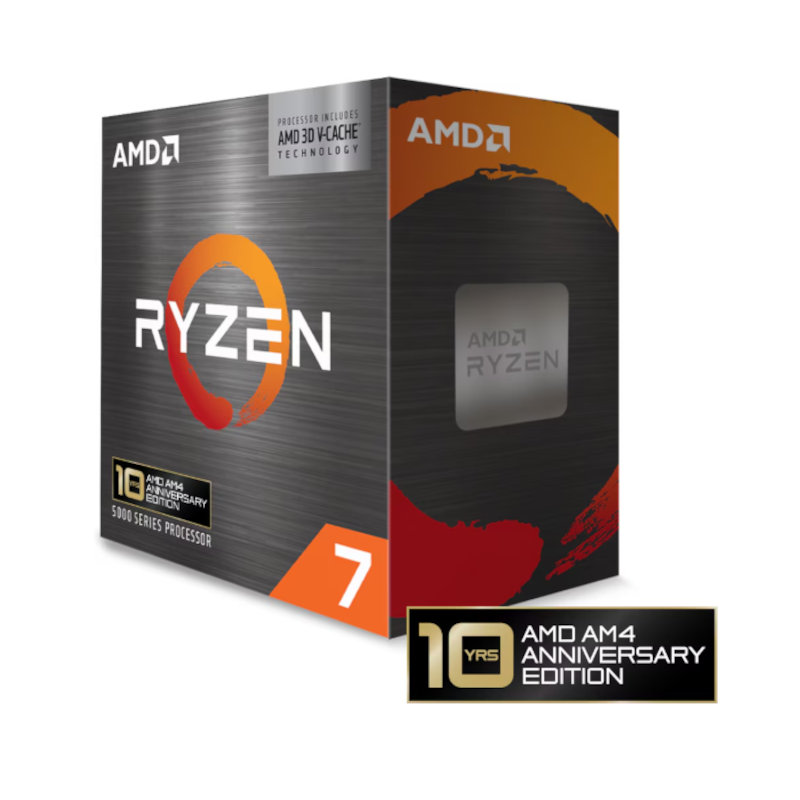

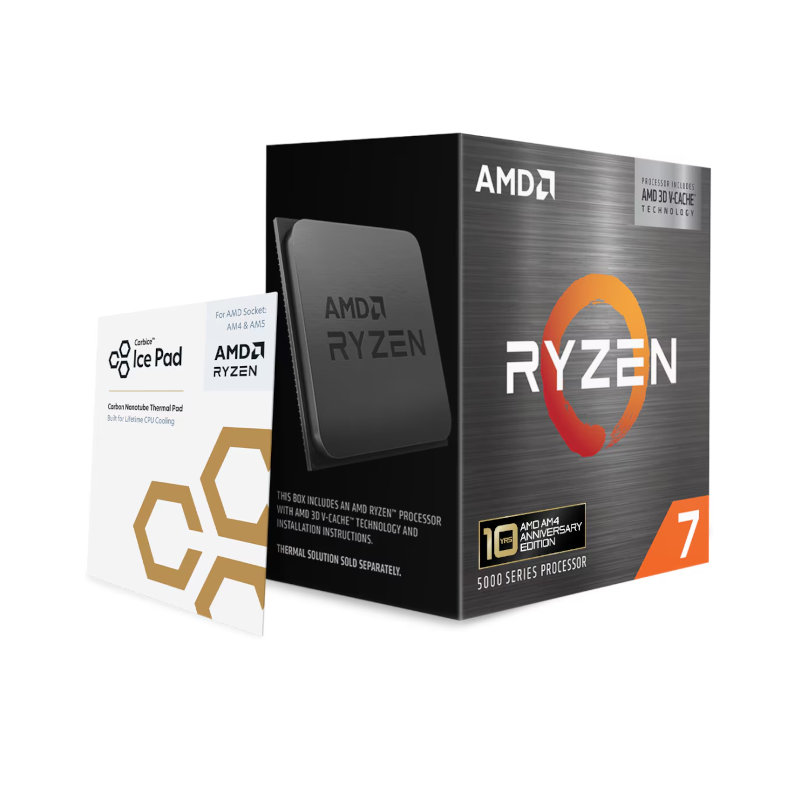

AMD Ryzen 7 5800X3D 10th Anniversary Edition Gaming Processor (8 Cores, 16 Threads, Max. Boost Clock Up To 4.5GHz, AM4 Socket and 100MB Cache)

General Specifications

Name: AMD Ryzen 7 5800X3D

Family:  Ryzen

Series: Ryzen 5000 Series

Form Factor: Desktops , Boxed Processor

Market Segment: Enthusiast Desktop

Former Codename: Vermeer

Processor Architecture: Zen 3

# of CPU Cores: 8

Multithreading (SMT): Yes

# of Threads: 16

Max. Boost Clock: Up to 4.5 GHz

Base Clock: 3.4 GHz

L1 Cache: 512 KB

L2 Cache: 4 MB

L3 Cache: 96 MB

Default TDP: 105W

Processor Technology for CPU Cores: TSMC 7nm FinFET

Processor Technology for I/O Die: 12nm (Globalfoundries)

CPU Compute Die (CCD) Size: 74mm²

I/O Die (IOD) Size: 125mm²

Package Die Count: 2

CPU Socket: AM4

Supporting Chipsets: X570 , X470 , B550 , B450 , A520

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB): Not Included

Recommended Cooler: Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax): 90°C

*OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps): 4

Native USB 3.2 Gen 1 (5Gbps): 0

Native USB 2.0 (480Mbps): 0

Native SATA Ports: 2

PCI Express® Version: PCIe® 4.0

Native PCIe® Lanes (Total/Usable): 24 , 20

Additional Usable PCIe Lanes from Motherboard:

                                                X570      16x Gen 4

                                                X470      2x Gen 3, 8x Gen 2

NVMe Support: Boot , RAID0 , RAID1 , RAID10

System Memory Type: DDR4

Memory Channels: 2

Max. Memory: 128 GB

System Memory Subtype: UDIMM

Max Memory Speed:

                                                2x1R      DDR4-3200

                                                2x2R      DDR4-3200

                                                4x1R      DDR4-2933

                                                4x2R      DDR4-2667

ECC Support: Yes (Requires mobo support)

Graphics Capabilities

Graphics Model: Discrete Graphics Card Required

Key Features

Supported Technologies:

AMD 3D V-Cache™ Technology ,

Windows® 11 Gaming ,

AMD Ryzen™ VR-Ready Premium

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notic
