General Specifications

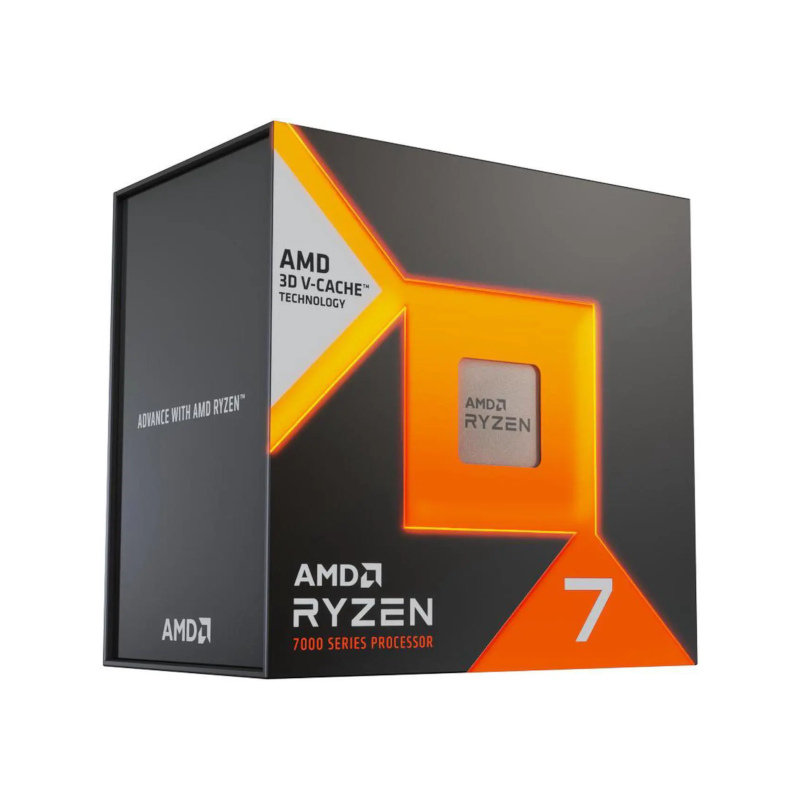

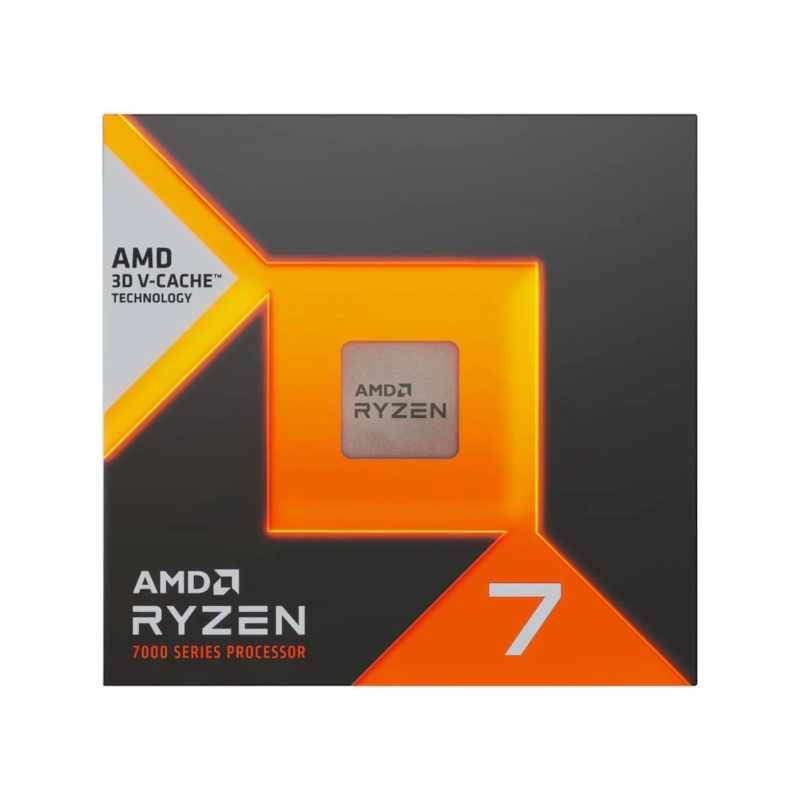

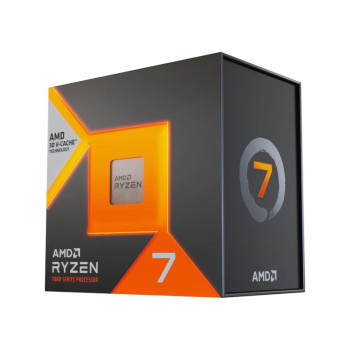

Name: AMD Ryzen 7 7700X3D

Family: Ryzen

Series: Ryzen 7000 Series

Form Factor: Desktops, Boxed Processor

Market Segment: Enthusiast Desktop

Regional Availability: Global

Former Codename: Raphael AM5

Processor Architecture: Zen 4

# of CPU Cores: 8

Multithreading (SMT): Yes

# of Threads: 16

Max. Boost Clock: Up to 4.5 GHz

Base Clock: 4 GHz

L1 Cache: 512 KB

L2 Cache: 8 MB

L3 Cache: 96 MB

Default TDP: 120W

Processor Technology for CPU Cores: TSMC 5nm FinFET

Processor Technology for I/O Die: TSMC 6nm FinFET

CPU Compute Die (CCD) Size: 71mm²

I/O Die (IOD) Size: 122mm²

Package Die Count: 2

AMD EXPO™ Memory Overclocking Technology: Yes

Precision Boost Overdrive: Yes

Curve Optimizer Voltage Offsets: Yes

AMD Ryzen™ Master Support: Yes

CPU Socket: AM5

Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64

Thermal Solution (PIB): Not Included

Recommended Cooler: Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax): 89°C

*OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps): 4

Native USB 3.2 Gen 1 (5Gbps): 0

Native USB 2.0 (480Mbps): 1

PCI Express® Version: PCIe® 5.0

Native PCIe® Lanes (Total/Usable): 28 , 24

NVMe Support: Boot , RAID0 , RAID1 , RAID10

System Memory Type: DDR5

Memory Channels: 2

Max. Memory: 128 GB

System Memory Subtype: UDIMM

Max Memory Speed:

                2x1R      DDR5-5200

                2x2R      DDR5-5200

                4x1R      DDR5-3600

                4x2R      DDR5-3600

ECC Support: Yes (Requires mobo support)

Graphics Capabilities

Graphics Model: AMD Radeon™ Graphics

Graphics Core Count: 2

Graphics Frequency: 2200 MHz

USB Type-C® DisplayPort™ Alternate Mode: Yes

Key Features

AMD Secure Processor: Yes

AMD Platform Secure Boot: Yes

Windows Secure Boot: Yes

UEFI Secure Boot: Yes

Windows Device Guard: Yes

Supervisor Mode Execution Prevention (SMEP): Yes

Guest Mode Execution (GMET) Trap: Yes

Virtualization-Based Security (VBS): Yes

Windows Secured-Core PC: Yes

Firmware TPM: Yes

AMD-V (SVM): Yes

AMD AVIC (Interrupt Virtualization): Yes

AMD-Vi (I/O MMU Virtualization): Yes

Second Level Address Translation (SLAT): Yes

Advanced Encryption Standard New Instructions (AES-NI): Yes

AMD Enhanced Virus Protection (NX bit): Yes

AMD Shadow Stack: Yes

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
