Ant Esports 690 Air Cabinet

Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Free Shipping Out Of Stock
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
Ant Esports 690 Air Cabinet
from Save -34%
₹6,840.00
₹10,299.00
  • Stock: Out Of Stock
  • Brand: Ant Esports
  • Model: 690 Air Black
  • EAN: 8906136070936

Ant Esports 690 Air ARGB (E-ATX) Mid Tower Gaming Cabinet - Black

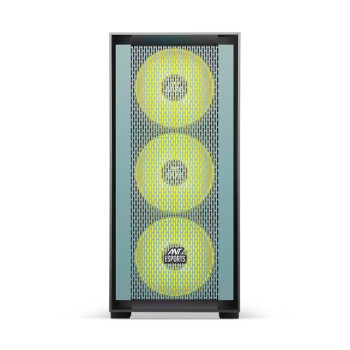

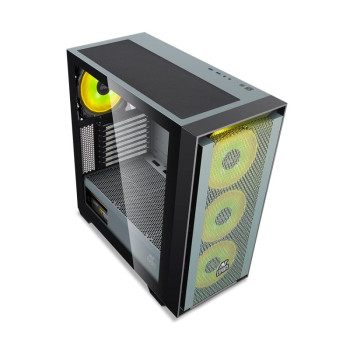

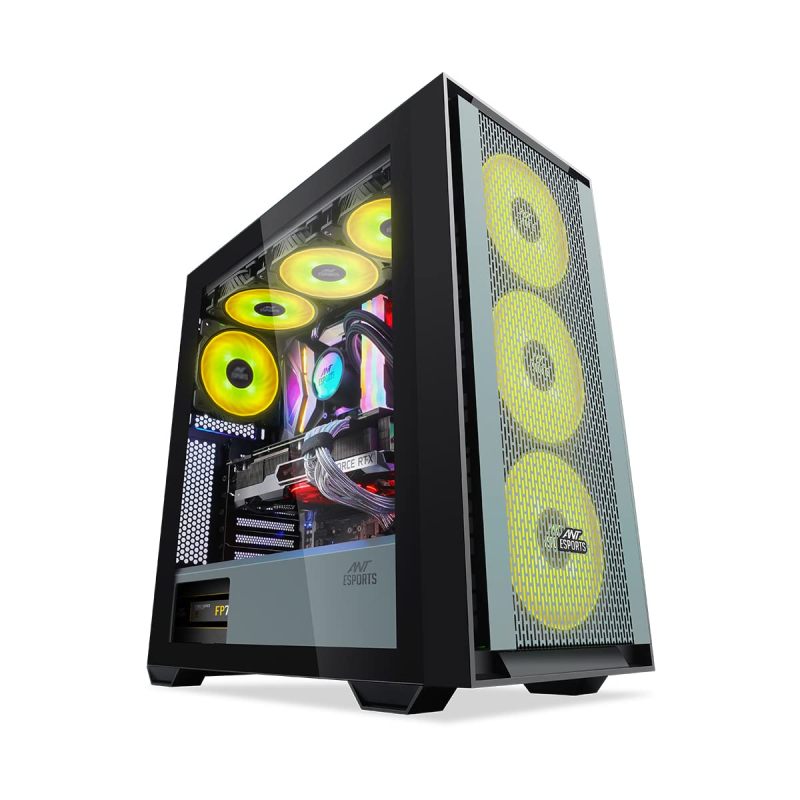

Ant Esports 690 Air ARGB is a mid tower gaming cabinet. It comes with a front mesh design for high-airflow, 3 pre-installed 120mm ARGB fans, supports up to E-ATX motherboards, 390mm GPU, 175mm CPU Air Cooler, 360mm AIO cooler & 220mm ATX PSU.

The Ant Esports 690 Air is a mid-tower gaming case delivering high end premium features at a pocket friendly price tag. The case supports upto E-ATX motherboards, multiple storage drives and liquid coolers upto 360mm on top making it ideal ofr high end gaming or production systems. With a front mesh panel with magnetic dust filter and a direct air flow path the Ant Esports 690 Air not only keeps high end gaming hardware cool under load but also prevents dust accumulation. The 690 Air not only supports a massive 360mm radiator on top for a thermally perfect build but also has space for a 240mm radiator on the side so one can choose the mount of their choice and even install multiple radiators at the same time if needed. In terms of storage the case supports two dedicated 2.5” SSD mounts one dedicated 3.5” HDD drive and one swappable SSD or HDD mount totaling in at four storage drive mounts.

  • Multiple Radiator Mounts - For enthusiast-grade cooling dual 360 millimeter radiators are supported on the top and front panel while a single 240mm is supported on the side to keep the most extreme systems cool.
  • Large Storage Options – Dual 2.5” SSD mounts and dual 3.5” HDD mounts the Ant Esports 690 Air is ideal to build any gaming or production system.
  • Movable Disk Bracket – The HDD cage under the PSU shroud is movable and can be slid towards the front to make space for long PSUs and increase it to 220mm if needed.

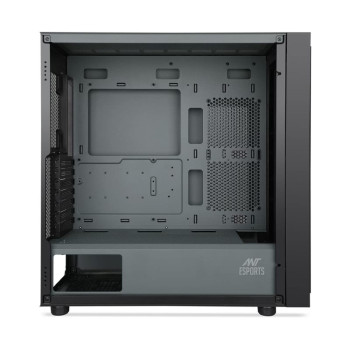

  • Spacious Interiors - The spacious interior fits upto an E-ATX motherboard configuration. Support for up to a 390mm graphics card, a 175mm CPU cooler, and up to a 220mm PSU in length provides room for upgrades.

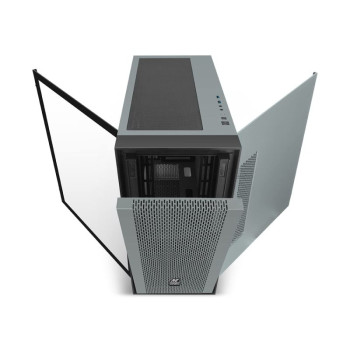

  • Four Dust Filters – With magnetic dust filters in the front, side and top along with a pull tray one on the PSU, the 690 Air facilitates high air flow while filtering out dust particles.

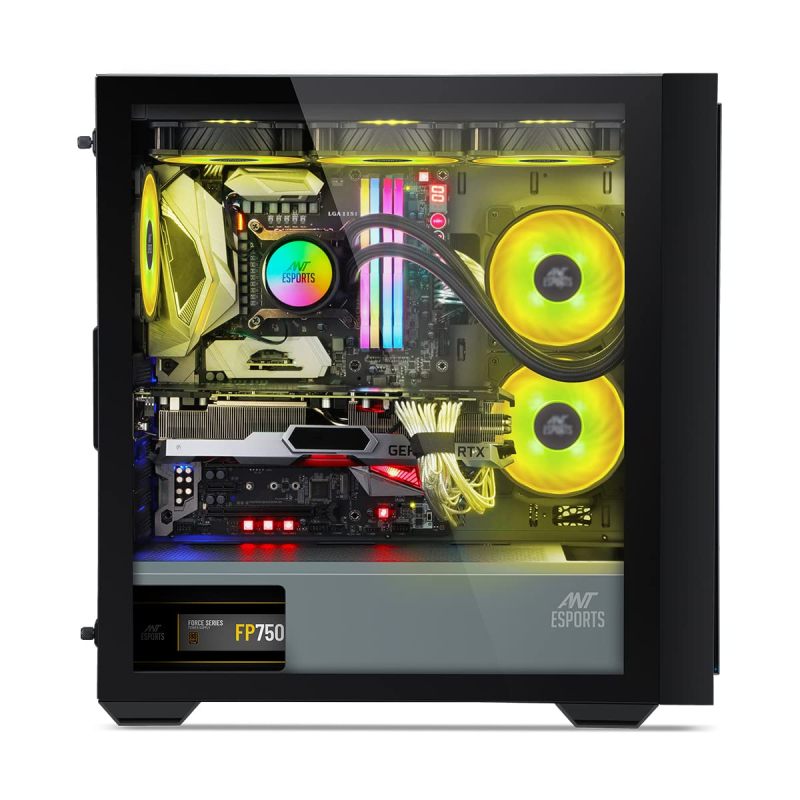

For enthusiast grade systems or cooling setups the Ant Esports 690 Air supports upto dual 360mm radiators in the front and on top while the side 240mm radiator mount not only lets one opt for custom loop cooling but even using graphics cards with AIO coolers is now possible. CPU Air Cooler clearance of upto 175mm ensures installation of massive air coolers with ease and the 220mm PSU clearance under the PSU shroud makes the 690 Air the perfect case to build power hungry systems in. The case comes with dual SSD and a single HDD mount along with one swappable mount for SSD/HDD to provide enough storage for your gaming or production PCs.



Specification

Dimensions

Chassis Size: 421 x 221 x 470 mm
Packing Size: 572 x 322 x 575 mm

Motherboard Type

E-ATX, ATX, Micro-ATX, Mini ITX

Drive Bays

3.5 Inch: x 2
2.5 Inch: x 2
5.25 Inch: None

Fan Support

Front: 120/140 mm x 3
Top: 120mm x 3/ 140mm x 2
Bottom: 120mm x 2
Rear: 120mm x 1
Side: 120mm x 2

Liquid Cooling Support

Front: 120/240/280/360 mm
Rear: 120mm
Top: 120/240/280/360 mm

Pre-Installed Fans

Front: x 3 ARGB Fans

Compatibility(Maximum)

VGA Card Length: 390mm
CPU Cooler Height: 175mm

I/O Panel

2x USB 3.0, 1x Audio In, 1x Mic, LED Control Button

Expansion Slots

7

Warranty

1 Year

Note*

Price, feature and specifications are subject to change without notice
