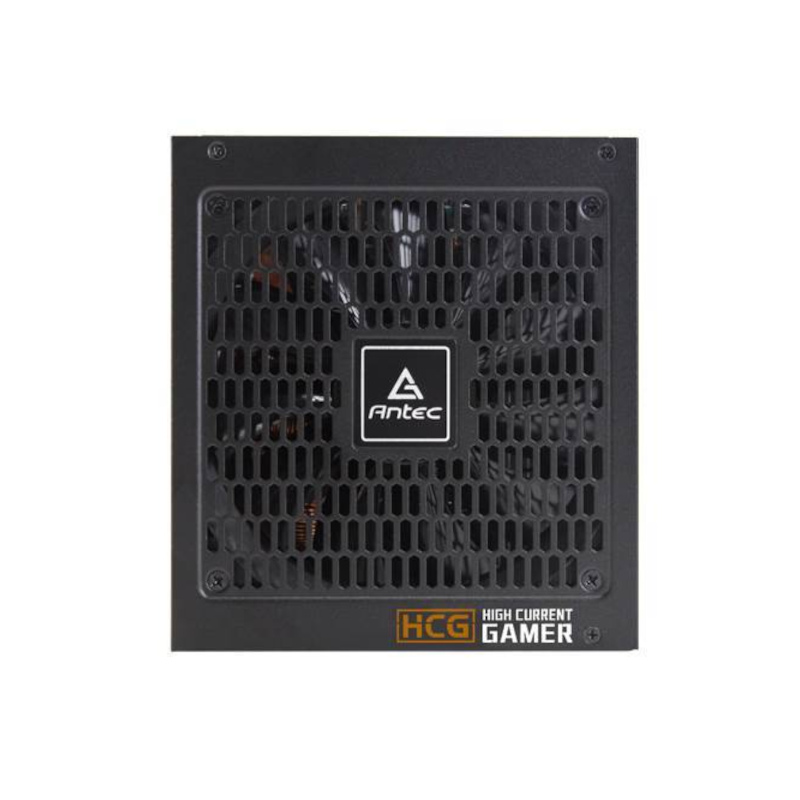

- Model: HCG750 Bronze GB
High Current Gamer Bronze Series 750W
The latest generation of High Current Gamer Bronze power
supplies delivers unparalleled stability and 80 PLUS® Bronze-certified
efficiency, with 100% Japanese capacitors and fully-modular cable management
and a quiet 135 mm Double Ball Bearing fan completes the package.
- The CircuitShield™ suite of industrial -grade protections ensures that the power delivered to your system is safe and reliable in any environment.
- High-performance Japanese capacitors ensure the tightest DC
stability and regulation, for reliability that you and your system can count
on.
- Antec Quality 5 year parts and labor warranty, and you get
unlimited access to Antec's incomparable technical support and customer
service.
135mm DBB FAN
The 135 mm Double Ball Bearing (DBB) Fan is ideal for quiet
computing and is designed for longer life,
guaranteeing hours of operation.
Features
- Dimension: 165(L)*150(W)*86(H)
- Guaranteed 750W Continuous Power from Antec
- 100% Modular-Improves airflow and reduces clutter
- DC-DC-Based on a DC-DC topology
- 80 PLUS® Bronze certified-Up to 89% efficient, to reduce your
electricity bill
- Antec Quality 5-year warranty and lifetime global 24/7
support
- 135mm DBB Fan-Whisper-quiet high-quality double
ball bearing fan with long lifetime
- 99%+12V - Output for maximum CPU &s; GPU support
- CircuitShield™-Full suite of industrial grade
protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage
regulation &s; low ripple &s; noise to maximize your system’s
performance
- 28(18+10) pin MBU socket - For possible future MBU
connectors
- ATX12V 2.4-Engineered according to the newest PSU guideline and
compatible with the latest CPU generation
Specification |
|
Model |
HCG750 Bronze |
Type |
ATX 12V 2.4 |
Modular |
Fully Modular |
Dimension |
165(L)*150(W)*86(H) |
Input Voltage |
100-240 VAC ±10% |
Input Current |
12A-6A |
Input Frequency Range |
50Hz ~ 60Hz |
PFC |
Active PFC (>0.9 typical) |
Power Good Signal |
100-500ms |
Efficiency |
89% Typically |
Protection |
OCP/OVP/SCP/OPP/OTP/SIP/NLO |
Output Capacity |
750W |
Operation Temperature |
0~40°C |
Regulatory |
cTUVus/TUV/CB/RCM/CE/EAC/FCC |
Fan |
135mm DBB Fan |
Certifications |
80 Plus Bronze |
Connector |
1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 4 x 8(6+2) Pin PCI-E 9 x SATA 4 x Molex 1 x FDD |
Net Weight |
1.62 kgs |
Gross Weight |
2.78 kgs |
Warranty |
5 years |
Note* |
Price, feature and specifications
are subject to change without notice |
