- Model: NX800

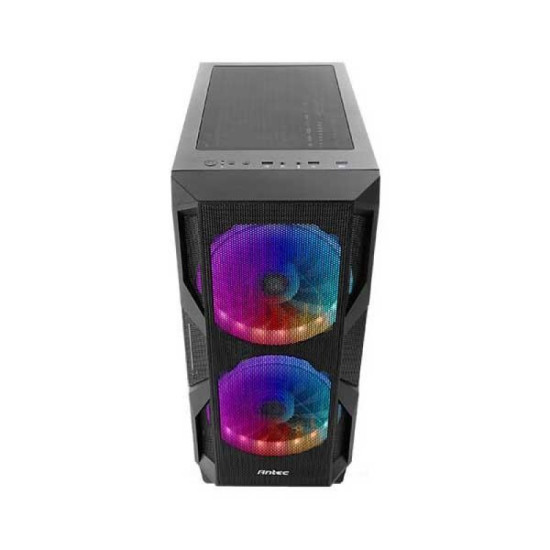

Built for Gaming NX800
NX series-Mid Tower Gaming Case
The NX800 mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes 2 x 200mm ARGB fans in front & 1x 120mm ARGB fan in rear. With support for up to a 360 mm liquid cooling radiator in front & 280 radiator on top, NX800 is easy to build with, and easy to cool.
- A Motherboard support: Up to E-ATX
- B 2.5" SSD: 4
- C 3.5" HDD/2.5" SSD (convertible): 3/1
- D Graphics Card Support: Up to 350 mm
- E CPU Cooler Support: Up to 180 mm
- F PSU Support: Up to 200 mm
|
Specification |
|
|
fan support |
Front = 3 x 120mm / 3 x 140mm / 2 x 200mm Top = 2 x 120mm / 2 x 140mm Rear = 1 x 120mm / 1 x 140mm Included Fan(s) = 2 x 200mm ARGB fans in front & 1 x 120mm ARGB fan in rear |
|
radiator support |
Front = ≤ 360mm Top = 280mm Rear = 140mm |
|
Case specification |
Dimensions = 470 x 230 x 500 mm (DWH) Form Factor = Mid Tower Materials = SPCC + Plastic Mainboard Support = E-ATX, ATX, Micro-ATX, ITX Front Access & Controls = Power, Reset, LED Control Button, MIC/Audio, USB2.0 x 2, USB3.0 x 1 Side Panel = Tempered Glass |
|
Clearances |
Max GPU Length ≤ 350mm, Max CPU Height ≤ 180mm, PSU Support ≤ 200mm, |
|
Miscellaneous |
Dust Filter = Front / Top / Bottom UPC# = 0-761345-81080-7 Net Weight = 7.87 Kgs Gross Weight = 9.11 Kgs |
|
Expansion & drive bays |
Expansion Slots = 7 5.25" = 0 3.5"/2.5" (convertible) = 3 /1 2.5" = 4 |
|
Warranty |
1 year |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
