- Model: ACFAN00164A

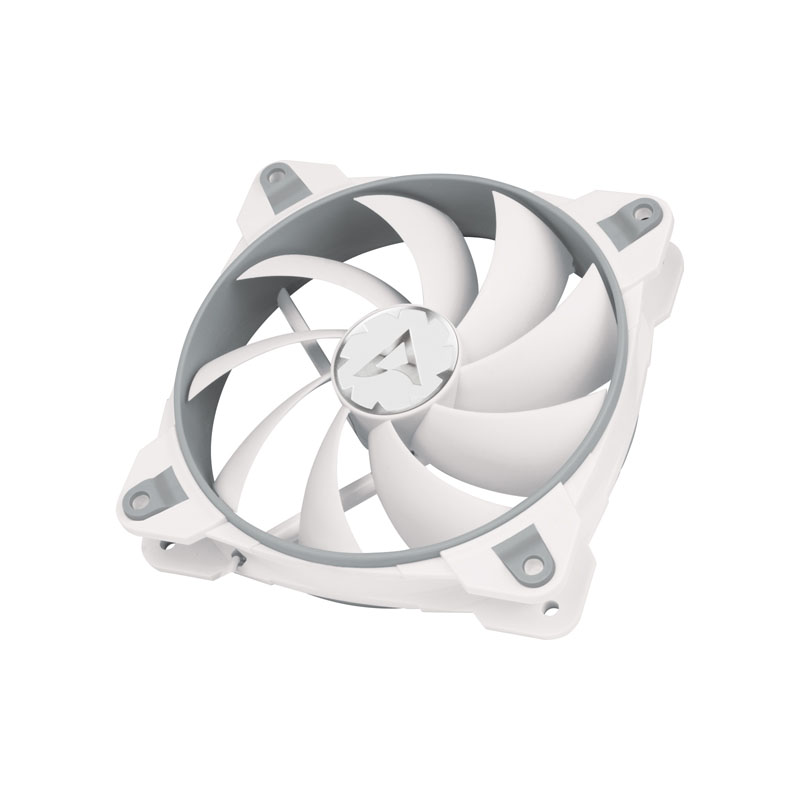

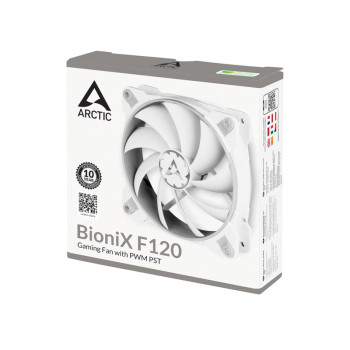

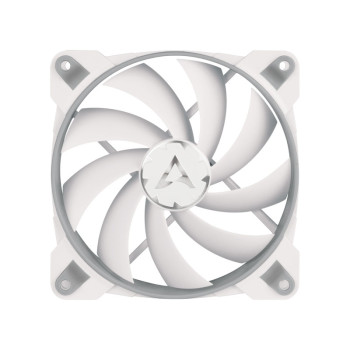

BioniX F120 - Gaming Fan with PWM PST – Grey/White
EXTENDED LIFE SPAN
10 °C lower motor temperature doubles the life span. The
BioniX gaming fans have a four times longer service life through low coil
temperature. Therefore, we extend the warranty to 10 years.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Extremely quiet operation through a newly developed motor
guarantees long sessions without annoying noise.ARCTIC's new motor of the
BioniX Fans eliminates vibrations directly at its source, in particular at the
motor. The ARCTIC motor absorbs 95 % of vibrations compared to a conventional
DC motor. Thus, there is no need for rubber spacers due to the steady torque
and smoother switching of the magnet field.
200 TO 1800 RPM
With a wide range of regulation and the PWM Sharing
Technology (PST), the BioniX F120 fan speed can be controlled synchronously
with all your other fans together and thus keep the noise at a minimum while guaranteeing
maximum cooling performance when needed.
OPTIMISED FAN DESIGN
We further optimised the fan blade design to get a higher
airflow at lower noise generation. This guarantees high pressure and highly
efficient ventilation for your gaming case.
ENHANCED BEARING
Due to a new alloy/lubricant combination developed in
Germany, the friction within the bearing is reduced and a greater efficiency is
achieved. This way, there is less heat development as well as less bearing
noise and you can enjoy a longer service life of your cooler.
TWO WAY INSTALLATION
Specification |
|
Model |
ACFAN00164A |
Performance |
Fan Speed: 200 - 1800 rpm Airflow: 69 CFM/ 117 m³/h Static Pressure: 2.10 mm H₂O Noise Level: 0.5 Sone Operating Ambient Temperature: 0 - 40 °C |
Fan |
Fan Frame: BioniX Control Type: PWM PST Connector: 4-Pin-Connector + 4-Pin-Socket Fan Bearing: Fluid Dynamic Bearing |
Electric Characteristics |
Typical Voltage: 12 V DC Starting Voltage: 4.8 V Current/ Voltage: 0.20 A / 12 V Cable Length: 400 mm |
Size & Weight |
Lenght:120 mm Width:120 mm Height:27 mm Weight: 129 g |
Packaging |
Width:131 mm Height:126 mm Length: 35 mm Weight:0.167 kg |
Warranty |
Limited 10 Years |
Note* |
Price, feature and specifications
are subject to change without notice. |
