Model

ACFRE00121A

Compatibility

Intel: LGA1851 | LGA1700

AMD Socket:AM5 | AM4

PI | NNPI: 250 | 234

TIM: MX-6 (0.8 g)

Operating Ambient Temperature: 0 - 40 °C

Dimensions: 104 (L) x 126 (W) x 159 (H) mm

Weight: 890 g

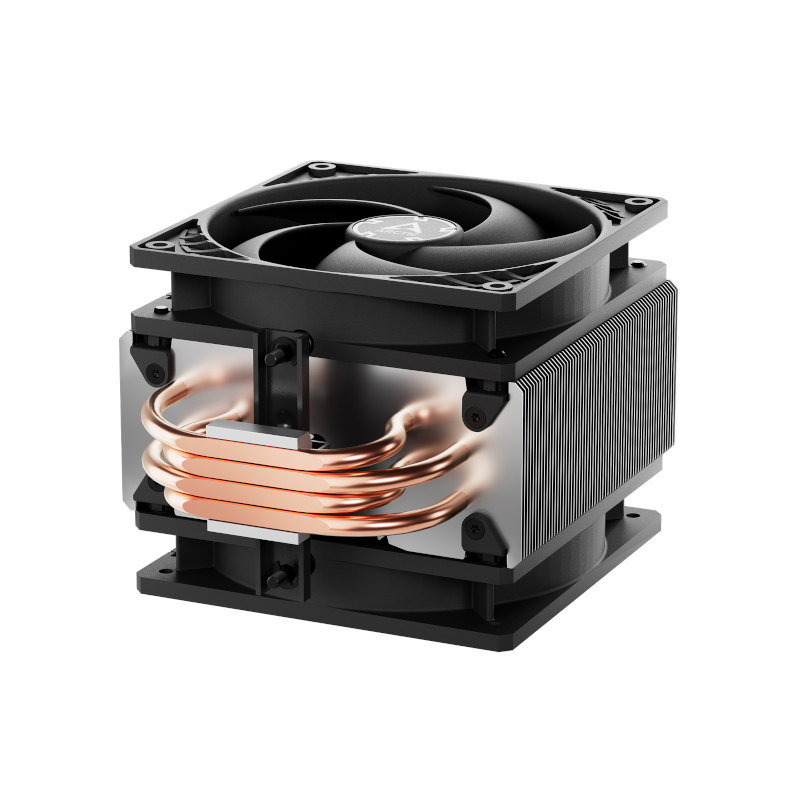

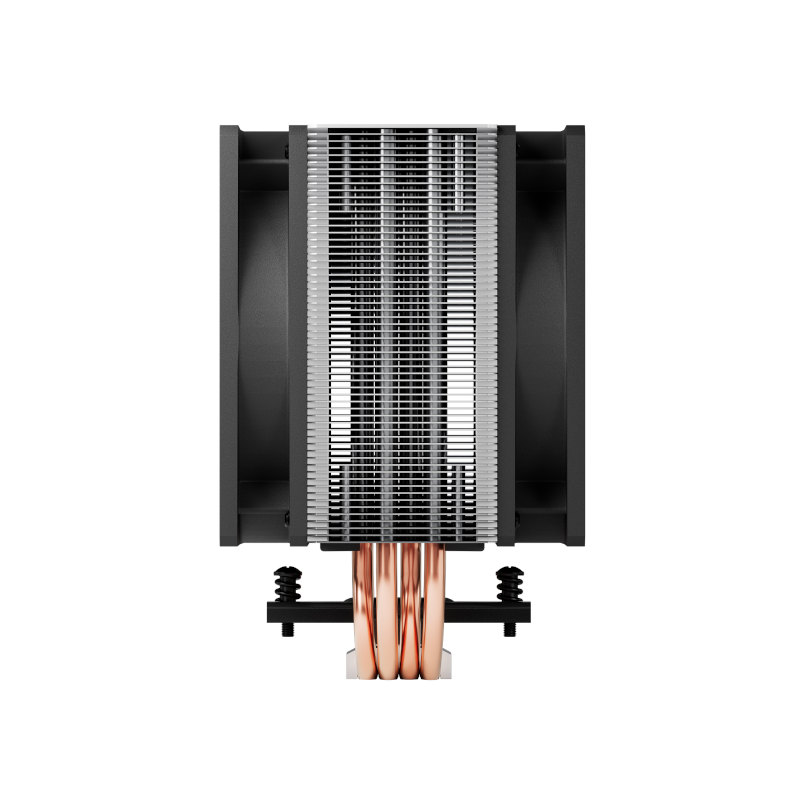

Heatsink

Heat Pipes: 4x 6 mm Ø, Copper

Fin Stack: 59x 0.4 mm, Aluminium

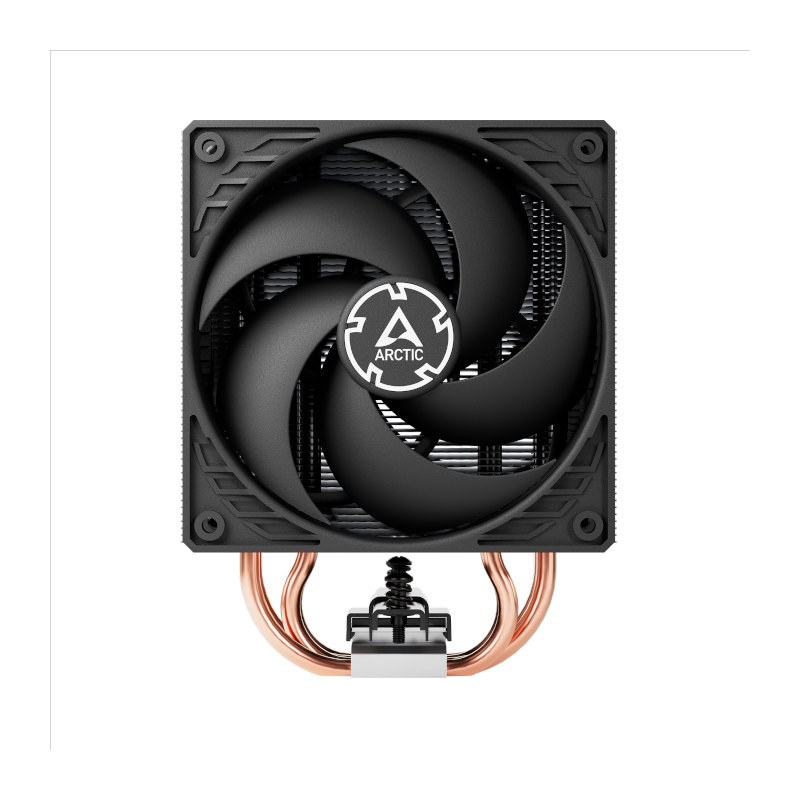

Fan

Fan:2x P12 PWM PST

Speed:200 - 1800 rpm, PWM Controlled (0 rpm below 5 % PWM)

Bearing: Fluid Dynamic Bearing

Current | Voltage:0.10 A | 12 V DC

Cable Lenght:200 mm + 80 mm Splitter Cable

Connector:4-Pin PWM-Connector + 4-Pin Plug

Packaging

Width: 186 mm

Height: 117 mm

Length: 190 mm

Weight: 1.23 kg

Warranty

6 Years

Note*

Price, feature and specifications are subject to change without notice.
