Model

ACFRE00125A

Compatibility

Intel:LGA1851 | LGA1700

AMD Socket:AM5 | AM4

PI | NNPI:245 | 219

TIM:MX-6 (0.8 g)

Operating Ambient Temperature:0 - 40 °C

Dimensions:104 (L) x 126 (W) x 159 (H) mm

Weight: 917 g

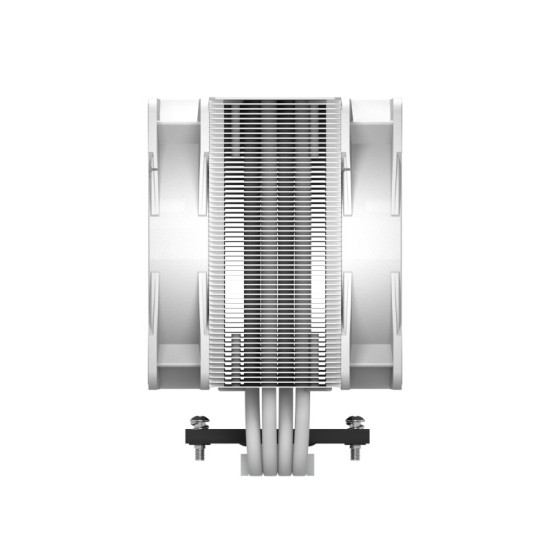

Heatsink

Heat Pipes:4x Ø6 mm, Copper

Fin Stack:59x 0.4 mm, Aluminium

Fan

Fan:2x P12 PWM PST A-RGB

Speed:200 - 2000 rpm, PWM Controlled (0 rpm below 5 % PWM)

Bearing:Fluid Dynamic Bearing

Current | Voltage:0.11 A | 12 V DC

Cable Lenght:200 mm + 80 mm Splitter Cable

Connector:4-Pin PWM-Connector + 4-Pin Plug

RGB

LEDs:12x A-RGB LEDs

Current | Voltage:0.40 A | 5 V DC

Cable Lenght:200 mm + 80 mm Splitter Cable

Connector:3-Pin A-RGB-Connector + 3-Pin Plug

Packaging

Width: 186 mm

Height: 117 mm

Length: 190 mm

Weight: 1.258 kg

Warranty

6 Years

Note*

Price, feature and specifications are subject to change without notice.
