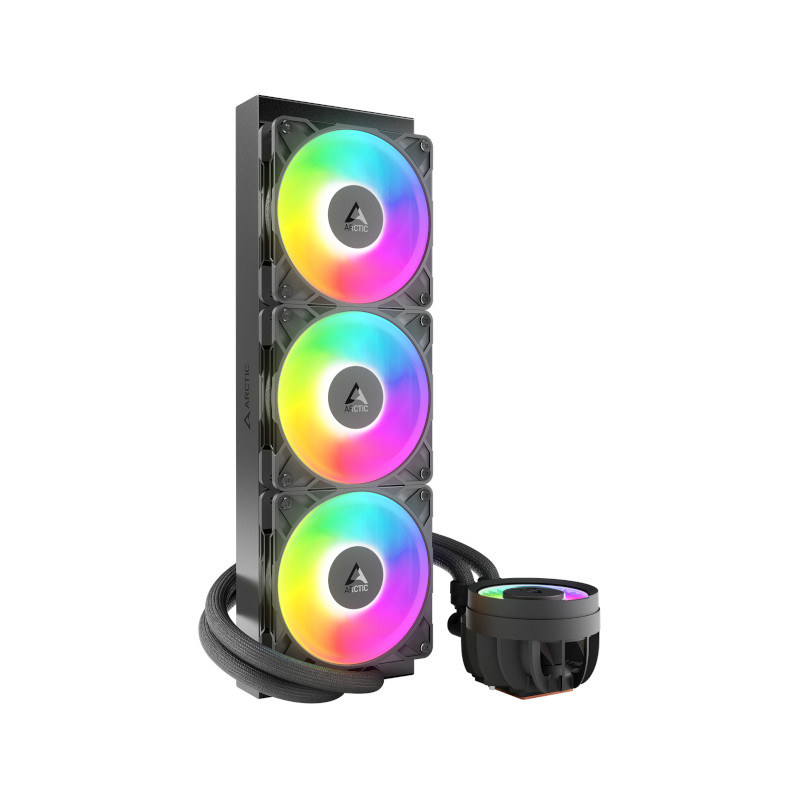

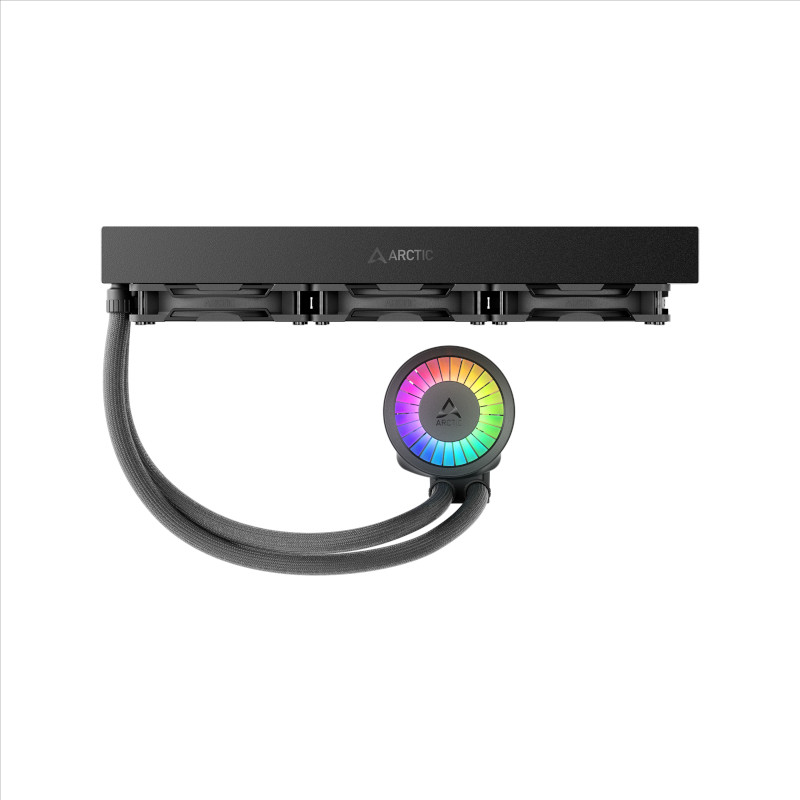

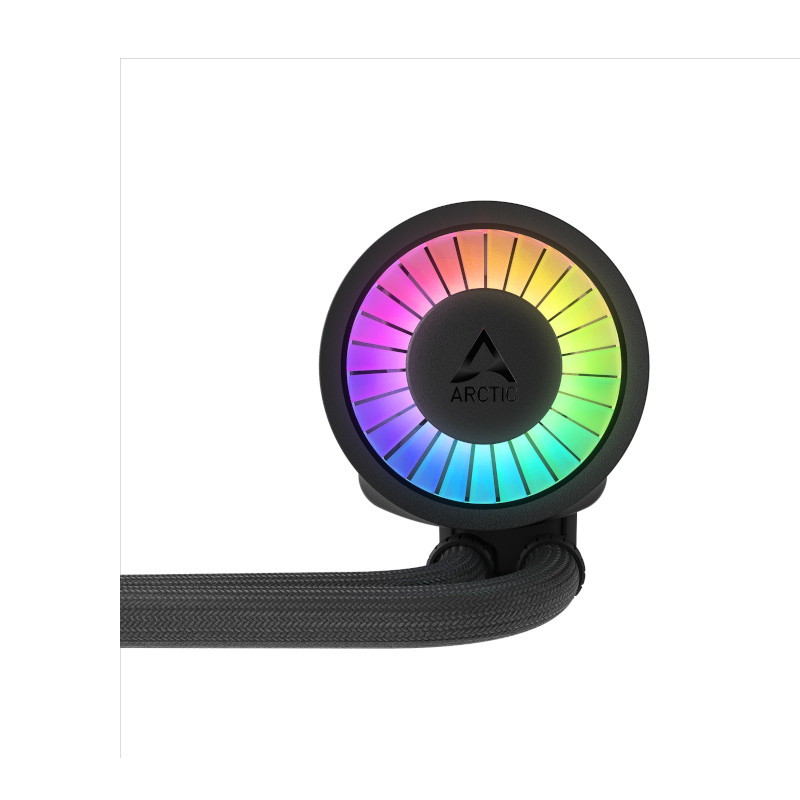

Model

ACFRE00184A

General Specifications

TIM: MX-6 (0.8 g)

Operating Ambient Temperature: 0—40 °C

Pump: 800–2800 rpm (PWM controlled)

Current | Voltage: 0.35 A | 12 V DC

Cold Plate: Copper, Micro Skived Fins

Tube Length: 450 mm

Tube Diameter: Outer: 12.4 mm

Inner: 6.0 mm

Weight: 2005 g

Compatibillity

Intel: LGA1851, LGA1700

AMD: AM5, AM4

Radiator

Material: Aluminium

Dimensions: 398 (L) x 120 (W) x 38 (H) mm

VRM Module

VRM Fan: 400–2500 rpm(PWM-controlled)

Current | Voltage: 0.05 A | 12 V DC

LEDs: 12x A-RGB Gen2 LEDs

Current | Voltage: 0.40 A | 5 V DC

Radiator Fan

General: 3x P12 Pro A-RGB

Speed: 600–3000 rpm

Airflow: 77 cfm | 131 m³/h3/h

Static Pressure: 6.9 mmH2O

Bearing: Fluid Dynamic Bearing

Current | Voltage: 0.33 A | 12 V DC

Connector: 4-Pin Fan Plug

RGB

LEDs: 12x A-RGB Gen2 LEDs

Current | Voltage: 0.40 A | 5 V DC

Connector: 3-Pin A-RGB Plug + 3-Pin Socket

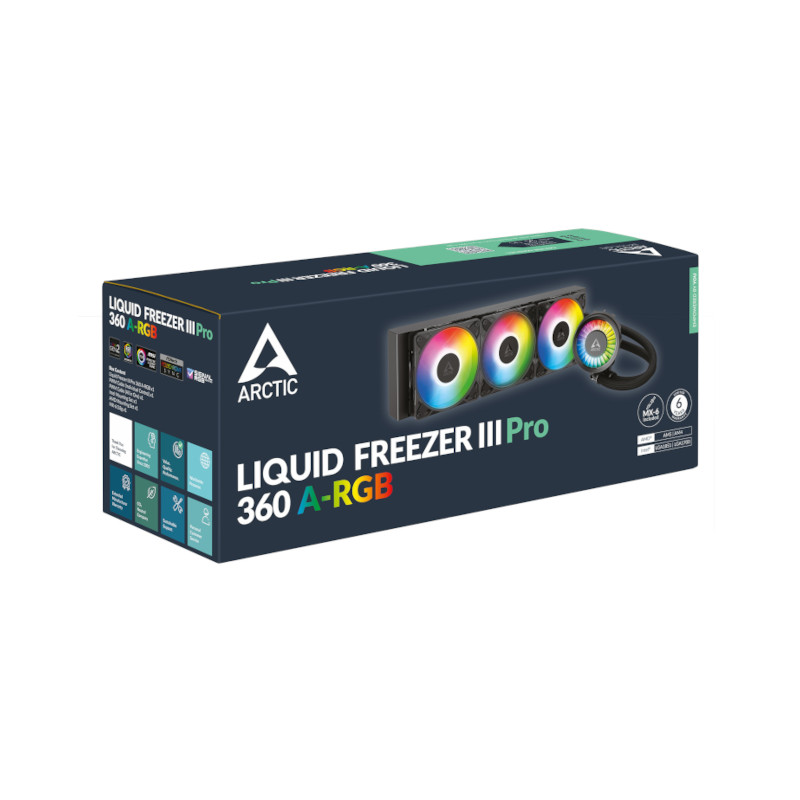

Packaging

Width: 167 mm

 Height: 142 mm

 Length: 414 mm

Weight: 2.45 kg

Warranty

6 Years

Note*

Price, feature and specifications are subject to change without notice.
