- Model: ACFAN00118A

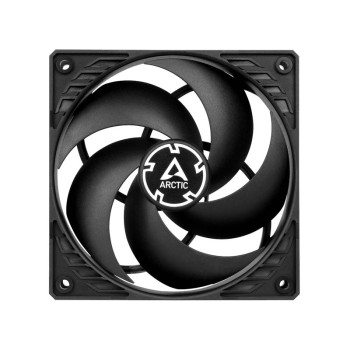

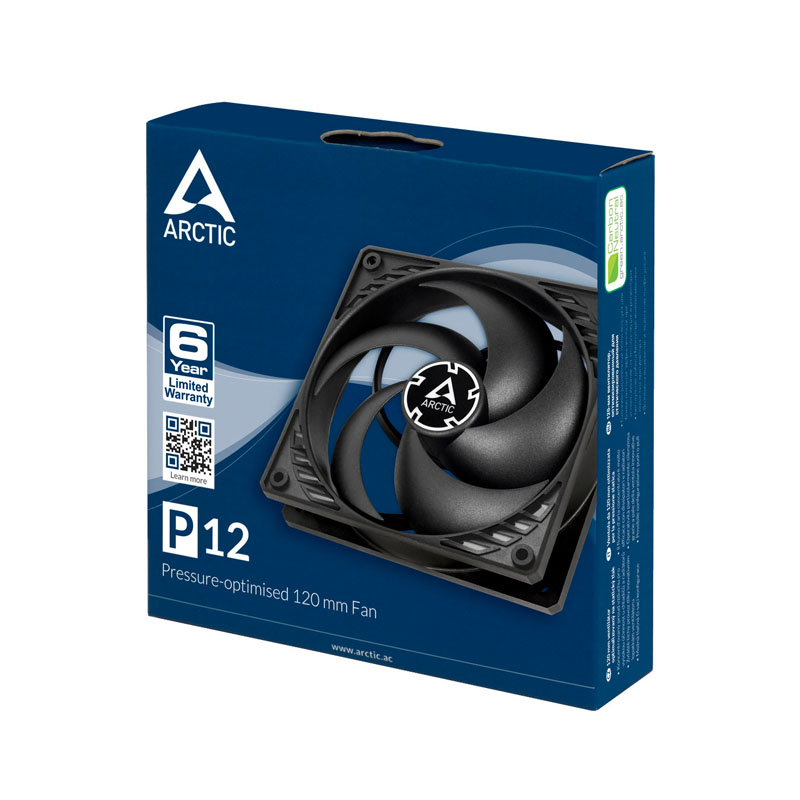

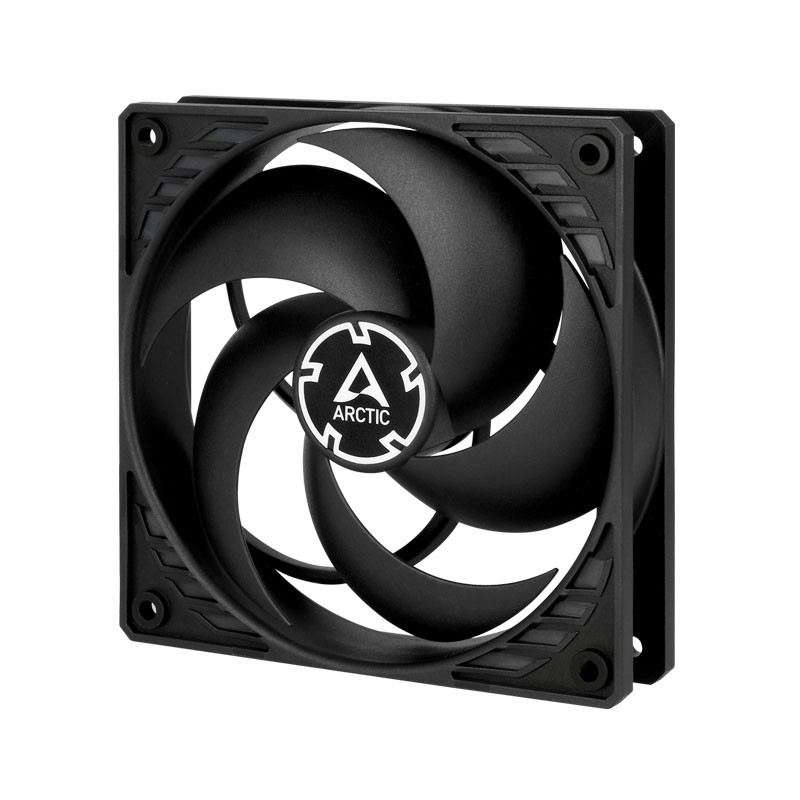

P12 - Pressure-optimised 120 mm Fan – Black
OPTIMISED FOR STATIC PRESSURE
During the development of the new P12, special emphasis was
placed on a focused airstream and thus a high static pressure. The fan
guarantees extremely efficient cooling, even with increased air resistance.
Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
STRONG COOLING PERFORMANCE
Numerous improvements, such as an updated engine technology
and a newly developed fan design, have noticeably increased the performance of
P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left
many competitors behind.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in
Germany, friction within the bearing is reduced and greater efficiency is
achieved. As a result, there is less heat development as well as less bearing
noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case. Pull cool air into your case
|
Specification |
|
|
Model |
ACFAN00118A |
|
Performance |
Fan Speed: 1800 rpm Airflow: 56.3 CFM/
95.7 m³/h Static Pressure: 2.20 mm H₂O Noise Level: 0.3 Sone Operating Ambient Temperature: 0 - 40 °C |
|
Fan |
Fan Frame: Standard Control Type: Fixed Speed Connector: 3-Pin-Connector Fan Bearing: Fluid Dynamic Bearing |
|
Electric Characteristics |
Typical Voltage: 12 V DC Starting Voltage: 2.8 V Current/ Voltage: 0.20 A / 12 V Cable Length: 400 mm |
|
Size & Weight |
Lenght:120 mm Width:120 mm Height:25 mm Weight:139 g |
|
Packaging |
Width:123 mm Height:123 mm Length:27 mm Weight:0.17 kg |
|
Warranty |
Limited 6 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
