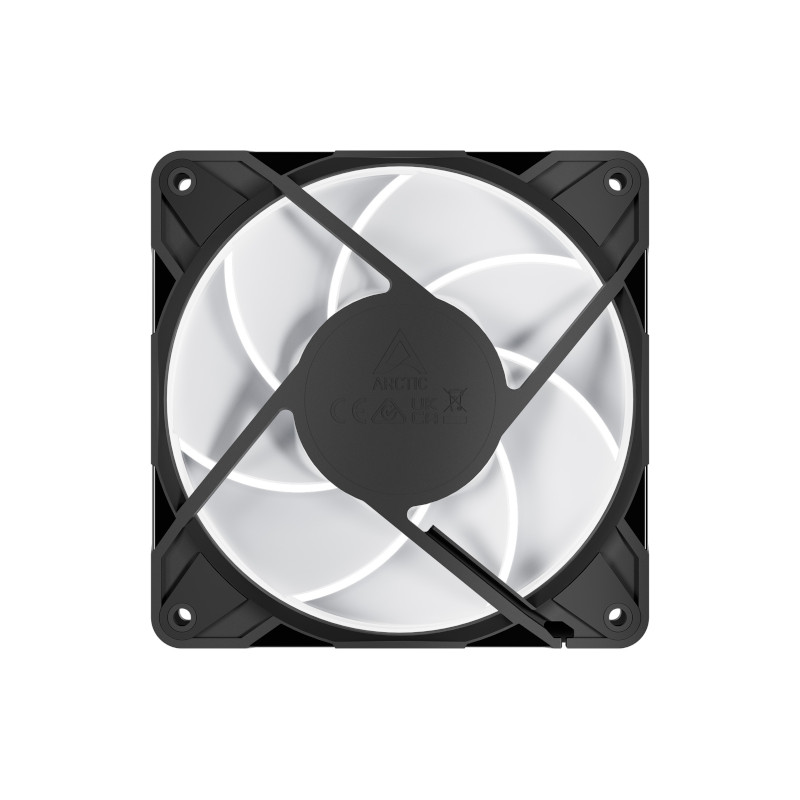

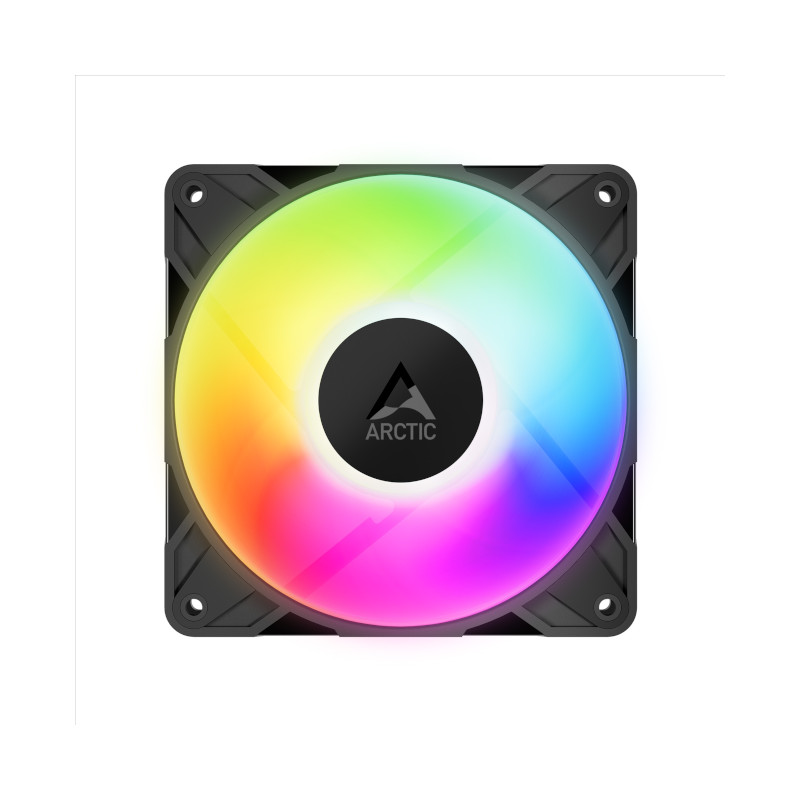

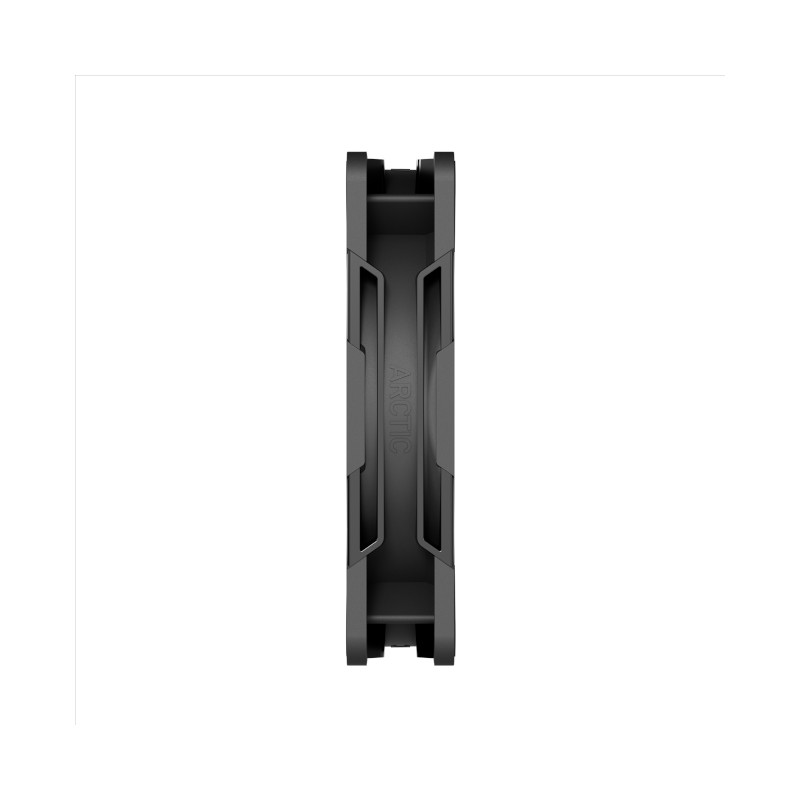

Fan Specs

Fan Speed: 600–3000 rpm, PWM controlled, 0 rpm below 5 % PWM

Airflow: 77 cfm | 131 m³/h

Static Pressure: 6.9 mmH2O

Fan Bearing: Fluid Dynamic Bearing

Typical Voltage: 12 V DC

Start Up Voltage: 3.3 V DC

Current: 0.33 A

Cable Length: 400 mm + 80 mm Daisy-Chain Cable

Connector: 4-Pin Fan Plug + 4-Pin Socket

RGB Specs

LEDs: 12x A-RGB Gen2 LEDs

Current | Voltage: 0.40 A | 5 V DC

Connector: 3-Pin A-RGB Plug + 3-Pin Socket

Operating Ambient Temperature

0–40 °C

Dimensions

120 (L) x 120 (W) x 25 (H) mm

Net Weight

185 g

Packaging

Width: 124 mm

Height: 86 mm

Length: 127 mm

Weight: 0.633 kg

Warranty

6 Years

Note*

Price, feature and specifications are subject to change without notice.
