Model

ACFAN00137A

Performance

Fan Speed: 200—1800 rpm PWM Controlled (0 rpm below 5 % PWM)

Airflow: 56.30 cfm | 95.70 m³/h

Static Pressure: 2.20 mmH2O

Noise Level: 0.3 Sone

Operating Ambient Temperature:0—40 °C

Fan

Fan Frame: Standard

Control Type: PWM PST

Connector: 4-Pin Connector + 4-Pin Socket

Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics

Typical Voltage: 12 V DC

Starting Voltage: 3.9 V

Current | Voltage:0.1 A | 12 V DC

Cable Length: 400 mm

Size & Weight

Length: 120 mm

Width:  120 mm

Height:  25 mm

Weight: 145 g

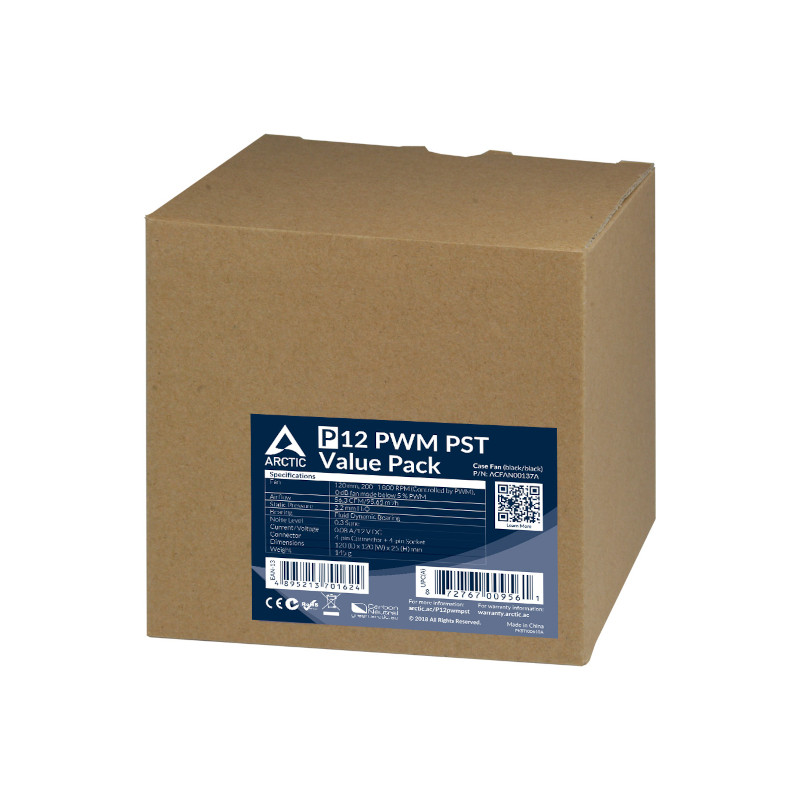

Packaging

Width: 130 mm

 Height: 127 mm

 Length: 123 mm

Weight: 0.8 kg

Warranty

6 Years

Note*

Price, feature and specifications are subject to change without notice.
