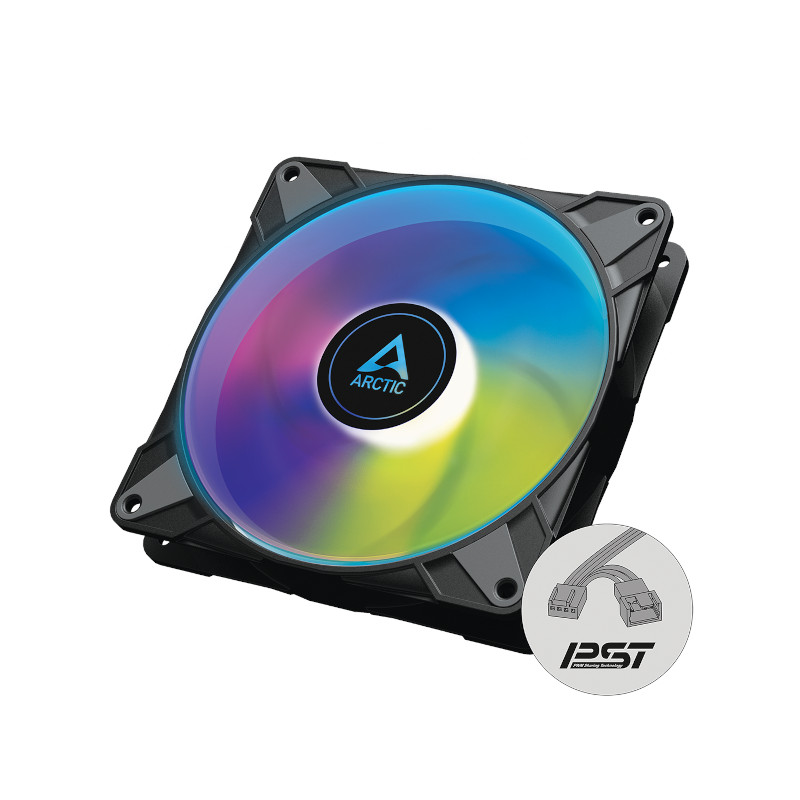

Model

ACFAN00239A

Performance

Fan Speed:200—1900 rpm PWM Controlled (0 rpm below 5% PWM)

Airflow: 68.90 cfm | 117.06 m³/h

Static Pressure:2 mmH2O

Noise Level:0.3 Sone

Fan

Fan Frame:Standard

Control Type:PWM PST

Connector:4-Pin Connector + 4-Pin Socket

Fan Bearing:Fluid Dynamic Bearing

Operating Ambient Temperature:0—40 °C

Electric Characteristics

Typical Voltage:12 V DC

Starting Voltage:5 V

Current | Voltage:0.17 A | 12 V DC

Cable Length:400 mm

RGB Specifications

LEDs:12 A-RGB LEDs

Connector:3-Pin 5 V-DI-GND Connector

Current/Voltage:0.4 A | 5 V

Cable:400 mm Cable with 80 mm Sharing Cable, Black

Size & Weight

Length: 140 mm

Width:  140 mm

Height:  27 mm

Weight: 225 g

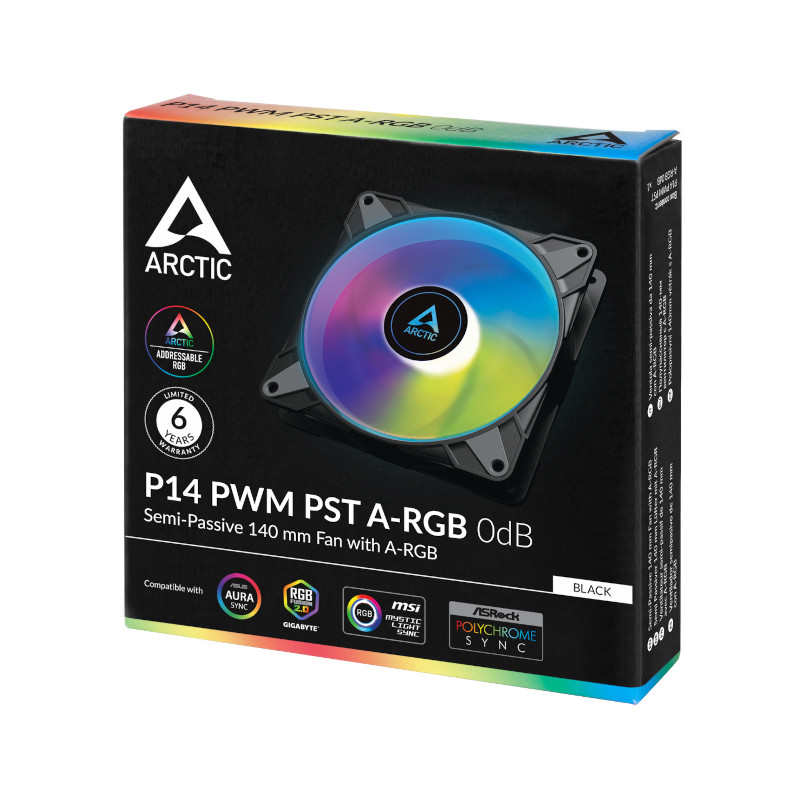

Packaging

Width: 167 mm

 Height: 34 mm

 Length: 167 mm

Weight: 0.297 kg

Warranty

6 Years

Note*

Price, feature and specifications are subject to change without notice.
