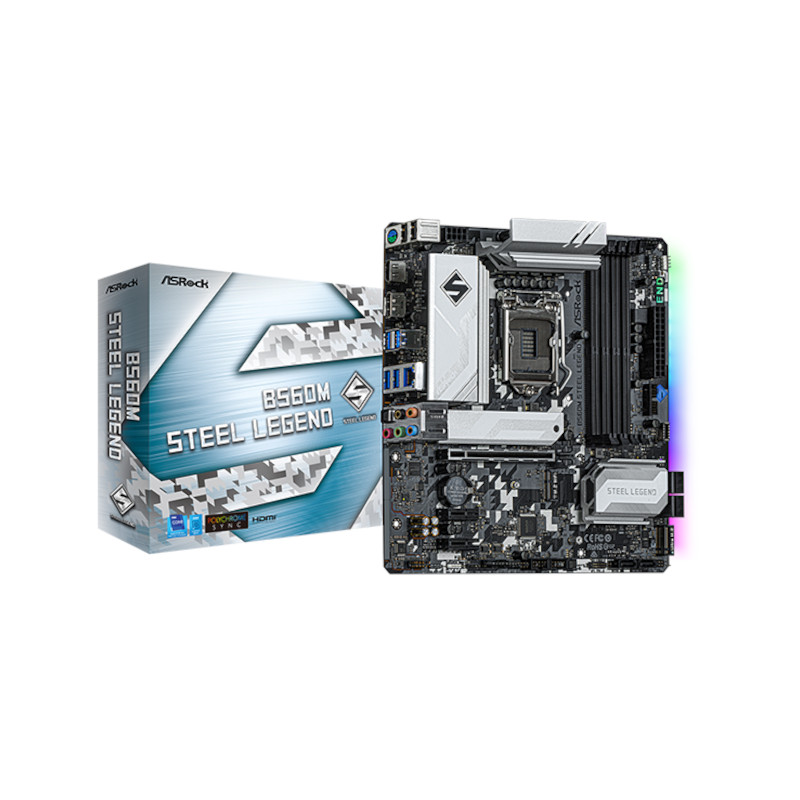

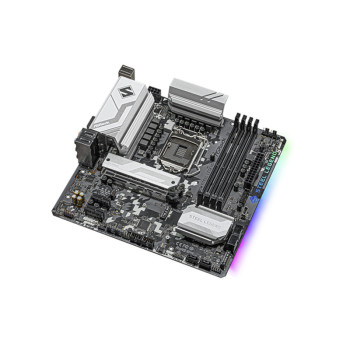

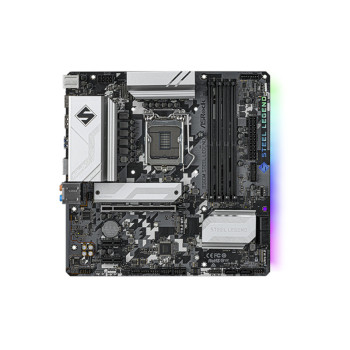

- Model: B560M Steel Legend
B560M Steel Legend
Supports 10th Gen Intel® Core™ Processors
and 11th Gen Intel® Core™ Processors
10 Phase Dr.MOS Power Design
Supports DDR4 4800MHz (OC)
1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, 1 x M.2
Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio
Codec), Nahimic Audio
6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s)
6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
6 x USB 2.0 (2 x Rear, 4 x Front)
Dragon 2.5 Gigabit LAN
Specification |
|
Unique
Feature |
ASRock
USB 3.2 Gen2 -
ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) ASRock
Super Alloy -
XXL Aluminum Alloy Heatsink -
Premium 60A Power Choke -
50A Dr.MOS -
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer
capacitors) -
Matte Black PCB -
High Density Glass Fabric PCB 2.5G
LAN ASRock
Steel Slot ASRock
Full Coverage M.2 Heatsink ASRock
Hyper M.2 (PCIe Gen4x4) ASRock
POST Status Checker (PSC) ASRock
Full Spike Protection (for all USB, Audio, LAN Ports) ASRock
Live Update & APP Shop |
CPU |
-
Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™
Processors (LGA1200) -
Digi Power design -
10 Power Phase design -
Supports Intel® Turbo Boost Max 3.0 Technology |
Chipset |
Intel®
B560 |
Memory |
Dual
Channel DDR4 Memory Technology -
4 x DDR4 DIMM Slots -
11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up
to 4800+(OC)* -
10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up
to 4666+(OC)* -
Supports ECC UDIMM memory modules (operate in non-ECC mode) -
Max. capacity of system memory: 128GB** -
Supports Intel® Extreme Memory Profile (XMP) 2.0 -
15μ Gold Contact in DIMM Slots
*11th
Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium®
and Celeron® support DDR4 2666 natively. 10th
Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium®
and Celeron® support DDR4 2666 natively.
**Due
to the operating system limitation, the actual memory size may be less than
4GB for the reservation for system usage under Windows® 32-bit OS. For
Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
BIOS |
128Mb
AMI UEFI Legal BIOS with multilingual GUI support -
ACPI 6.0 Compliant wake up events -
SMBIOS 2.7 Support -
CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX,
Voltage Multi-adjustment |
Graphics |
11th
Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12).
10th Gen Intel® Core™ Processors support Gen 9 Graphics -
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent
display controllers -
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with
11th Gen Intel® Core™ Processors -
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with
10th Gen Intel® Core™ Processors -
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @
60Hz -
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate
Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) -
Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th
Gen Intel® Core™ Processors)
*Intel®
UHD Graphics Built-in Visuals and the VGA outputs can be supported only with
processors which are GPU integrated. Graphics
specifications may vary between CPU types. |
Audio |
7.1
CH HD Audio (Realtek ALC897 Audio Codec) -
Supports Surge Protection -
Gold Audio Jacks -
15μ Gold Audio Connector -
Nahimic Audio |
LAN |
2.5
Gigabit LAN 10/100/1000/2500 Mb/s -
Dragon RTL8125BG -
Supports Dragon 2.5G LAN Software -
Smart Auto Adjust Bandwidth Control -
Visual User Friendly UI -
Visual Network Usage Statistics -
Optimized Default Setting for Game, Browser, and Streaming Modes -
User Customized Priority Control -
Supports Wake-On-LAN -
Supports Lightning/ESD Protection -
Supports Energy Efficient Ethernet 802.3az -
Supports PXE |
Slots |
11th
Gen Intel® Core™ Processors -
1 x PCI Express 4.0 x16 Slot* 10th
Gen Intel® Core™ Processors -
1 x PCI Express 3.0 x16 Slot*
-
2 x PCI Express 3.0 x1 Slots -
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and
Intel® CNVi (Integrated WiFi/BT) -
15μ Gold Contact in VGA PCIe Slot (PCIE1) |
Storage |
6
x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ,
AHCI and Hot Plug* -
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI
Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel® Core™
Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)** -
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s
module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If
M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
**M2_1
supports Intel® Optane™ Technology (with 10th Gen Intel® Core™ Processors) Supports
NVMe SSD as boot disks Supports
ASRock U.2 Kit |
Connector |
1
x SPI TPM Header -
1 x Chassis Intrusion and Speaker Header -
2 x RGB LED Headers* -
2 x Addressable LED Headers** -
1 x CPU Fan Connector (4-pin)*** -
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** -
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** -
1 x 24 pin ATX Power Connector (Hi-Density Power Connector) -
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) -
1 x Front Panel Audio Connector (15μ Gold Audio Connector) -
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) -
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD
Protection) -
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD
Protection)
*Support
in total up to 12V/3A, 36W LED Strip
**Support
in total up to 5V/3A, 15W LED Strip
***The
CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The
CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan
power.
*****The
Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan
power. CPU_FAN2/WP,
CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin
fan is in use. |
Rear
Panel I/O |
-
3 x Antenna Mounting Points -
1 x PS/2 Mouse/Keyboard Port -
1 x HDMI Port -
1 x DisplayPort 1.4 -
1 x Optical SPDIF Out Port -
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) -
2 x USB 2.0 Ports (Supports ESD Protection) -
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) -
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone (Gold Audio Jacks) |
Software
and UEFI |
Software -
ASRock Motherboard Utility (A-Tuning) -
ASRock Dragon 2.5G LAN Software -
ASRock Polychrome SYNC* UEFI -
ASRock EZ Mode -
ASRock Full HD UEFI -
ASRock My Favorites in UEFI -
ASRock Instant Flash -
ASRock Internet Flash
*These
utilities can be downloaded from ASRock Live Update & APP Shop. |
Support
CD |
Drivers,
Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and
Toolbar |
Accessories |
Quick
Installation Guide, Support CD, I/O Shield -
2 x SATA Data Cables -
3 x Screws for M.2 Sockets -
1 x Standoff for M.2 Socket |
Hardware
Monitor |
Fan
Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans -
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water
Pump, Chassis/Water Pump Fans -
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans -
CASE OPEN detection -
Voltage monitoring: CPU Vcore, VCCIN AUX, DRAM, VCCIO, VPPM, VCCSA, CPU PLL,
+12V, +5V, +3.3V |
Form
Factor |
-
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
OS |
-
Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications |
FCC,
CE ErP/EuP
ready (ErP/EuP ready power supply is required) |
Warranty |
3
Years |
Note* |
Price, feature and
specifications are subject to change without notice. |
