Unique Feature

Superb Productivity

PCIe Gen5 (Graphics)

Dual Channel DDR5

Rock-Solid Durability

10+1+1 Power Phase, 50A Dr.MOS for VCore+GT

Pre-Installed I/O Shield

Ultrafast Connectivity

2.5G LAN,

802.11ax Wi-Fi 6EModule

EZ Update

ASRock Auto Driver Installer

EZ Troubleshooter

ASRock Post Status Checker

CPU

Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)

Supports Intel® Hybrid Technology

Supports Intel® Turbo Boost Max 3.0 Technology

Supports Intel® Thermal Velocity Boost (TVB)

Supports Intel® Adaptive Boost Technology (ABT)

Chipset

Intel® B760

Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

Max. capacity of system memory: 192GB

Supports Intel® Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.

1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.

2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.

2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Graphics

Intel® Xe Graphics Architecture (Gen 12)

1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Slots

CPU:

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*

1 x PCIe 3.0 x1 Slot (PCIE2)*

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Supports AMD CrossFire™

*Supports NVMe SSD as boot disks

Wireless LAN

802.11ax Wi-Fi 6E Module

Supports IEEE 802.11a/b/g/n/ac/ax

Supports Dual-Band 2x2 with extended 6GHz band support*

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.3 + High speed class II

Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

A 6GHz compatible router is required for 6E functionality.

Storage

CPU:

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Volume Management Device (VMD)

Supports NVMe SSD as boot disks

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)

1 x USB 3.2 Gen2 Type-A (Rear)

6 x USB 3.2 Gen1 (4 Rear, 2 Front)

4 x USB 2.0 (2 Rear, 2 Front)

* All USB ports support ESD Protection

Connector

1 x eDP Signal Connector

1 x SPI TPM Header

1 x Power LED and Speaker Header

2 x RGB LED Headers*

2 x Addressable LED Headers**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

1 x 24 pin ATX Power Connector

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector

1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~5/WP support the fan power up to 2A (24W).

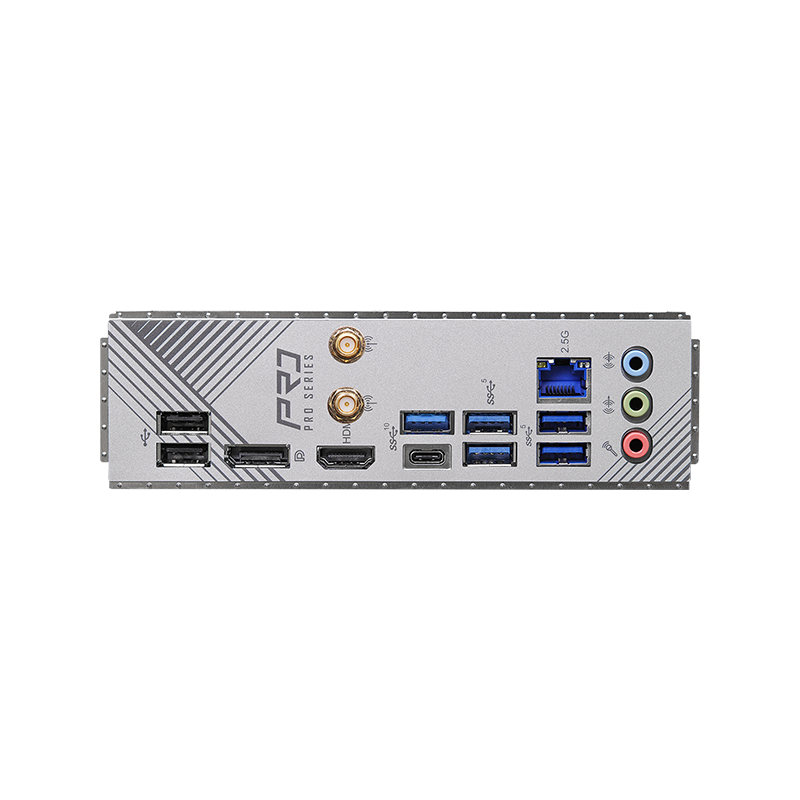

Rear Panel I/O

2 x Antenna Ports

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

4 x USB 3.2 Gen1 Ports

2 x USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock Motherboard Utility (A-Tuning)

ASRock Dragon 2.5G LAN Software

ASRock Polychrome SYNC*

UEFI

ASRock EZ Mode

ASRock Full HD UEFI

ASRock My Favorites in UEFI

ASRock Auto Driver Installer

ASRock Instant Flash

ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

1 x User Manual

2 x SATA Data Cables

2 x ASRock WiFi 2.4/5/6 GHz Antennas

3 x Screws for M.2 Sockets

1 x Standoff for M.2 Socket

Form Factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

OS

 Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
