Graphic Engine

Radeon RX 6600 XT

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

8GB GDDR6

Engine Clock

OC mode : up to 2607 MHz (Boost Clock)/up to 2402 MHz (Game Clock)
Gaming mode : up to 2593 MHz (Boost Clock)/up to 2382 MHz (Game Clock)

Stream Processors

2048

Memory Speed

16 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

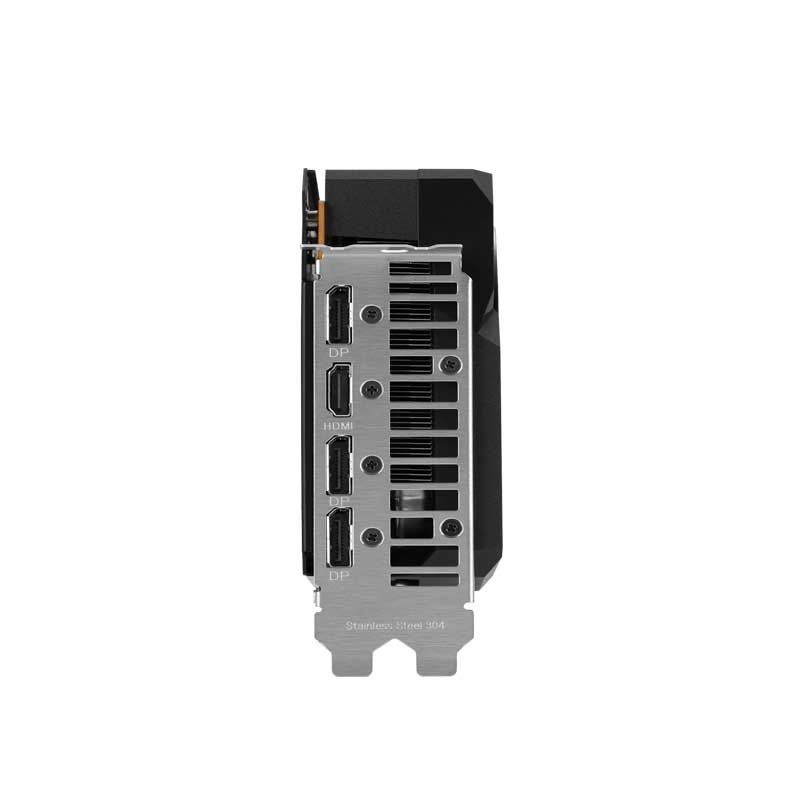

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

Yes

Software

ASUS GPU Tweak II & Drivers: please download all software from the support site

Accessories

1 x Collection Card
1 x Speedsetup Manual

Dimensions

243 x 134 x 49 mm
9.6 x 5.3 x 1.9 inch

Recommended PSU

500W

Power Connectors

1 x 8-pin

Slot

2.5 Slot

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
