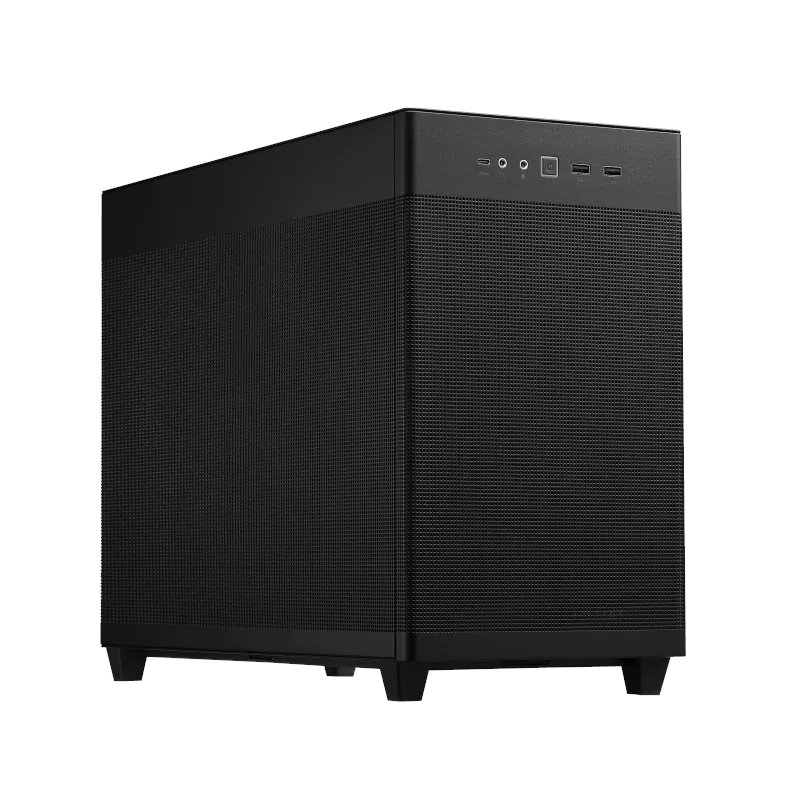

ASUS Prime AP201 MicroATX Case
The ASUS Prime AP201 is a stylish 33-liter MicroATX case
with tool-free side panels and a quasi-filter mesh, with support for 360 mm
coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
- Quasi-Filter Mesh Panels: A mesh design comprised of over
57,000 precision-machined 1.5mm holes increases airflow and provides a
compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm
radiators and up to six fans, the AP201 is primed to deal with the thermal
onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L
footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to
338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism
allows chassis side panels to be easily removed and resistant to accidental
dislodging.
- Sizeable Cable-Management: The AP201 features an extended
motherboard tray with strategically placed cutouts and a 32 mm gap to tuck
cables out of sight.
- Front Panel USB Type-C® Support: The front panel of the
AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds
of up to 10 Gbps.
Specification | |
Model | ASUS
Prime AP201 MicroATX Case |
Case
Size | Small
Tower |
Motherboard
Support | Micro-ATX Mini-ITX |
Drive
Bays | 1 x
2.5" Bay 3 x
2.5"/3.5" Combo Bay |
Expansion
Slots | 4 |
Front
I/O Port | 1 x
Headphone 1 x
Microphone 2 x USB
3.2 Gen1 1 x USB
3.2 Gen2 Type C |
Radiator
Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm |
Radiator
Support (Rear) | 120 mm |
Cooling
Support (Top) | 3 x 120
mm 2 x 140
mm |
Cooling
Support (Rear) | 1 x 120
mm |
Pre-installed
Fans | 1 x 120 mm (Rear) |
Maximum
CPU Cooler Height | 170 mm |
Maximum
GPU Length | 338 mm |
Maximum
PSU Length | 140-180
mm |
Removable
Dust Filters | Bottom |
Maximum
Cable Management Space | 32 mm |
Dimensions | 205 x
350 x 460 mm |
Weight | 5.8 Kg
(Mesh Edition) |
Warranty | 1 Year |
Note* | Price, feature and specifications
are subject to change without notice |
