- Model: PRIME B760 PLUS

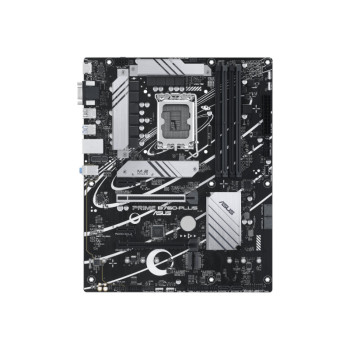

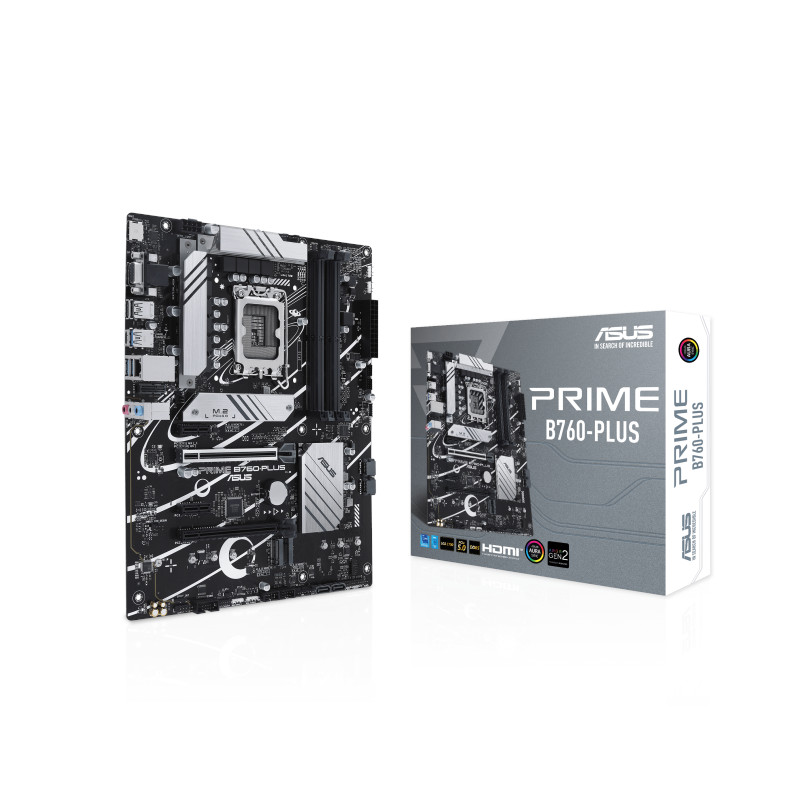

PRIME B760-PLUS
ASUS Prime
B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe
4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6
Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™
(USB4®) support, Aura Sync
- Intel® LGA 1700
Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast
Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen
2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header
support
- Comprehensive
Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan
Xpert 2+
- Exclusive Memory
Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB
Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED
strips, easily synced with Aura Sync-capable hardware
Specification |
|
CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™
& 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and
Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support
depends on the CPU types. |
Chipset |
Intel® B760 Chipset |
Memory |
4 x DIMM, Max. 192GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and
number of DRAM modules vary depending on the CPU and memory configuration,
for more information please refer to CPU/Memory Support under the Support tab
or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports
On-Die ECC function. |
Graphics |
1 x DisplayPort** 1 x VGA port 1 x HDMI™ port***
* Graphics specifications may vary between CPU
types. Please refer to www.intel.com for any updates. ** Supports max. [email protected] as specified in
DisplayPort 1.4. *** Supports [email protected] as specified in HDMI™ 2.1. |
Expansion Slots |
Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/ for the list of
supported peripherals. |
Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s
ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports
PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports
PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA
RAID 0/1/5/10. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth |
Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
USB |
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB
Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional
USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0
ports |
Audio |
Realtek 7.1 Surround Sound High Definition Audio
CODEC* - Supports: Jack-detection, Multi-streaming,
Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front
panel is required to support 7.1 Surround Sound audio output. |
Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®
) 1 x USB 3.2 Gen 1 header supports 2 additional
USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0
ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis
intrude function 1 x Thunderbolt™ (USB4®) header |
Special Features |
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
Operating System |
Windows® 11
64-bit, Windows® 10 64-bit |
Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty |
3 Years |
Note* |
Price,
feature and specifications are subject to change without notice. |
