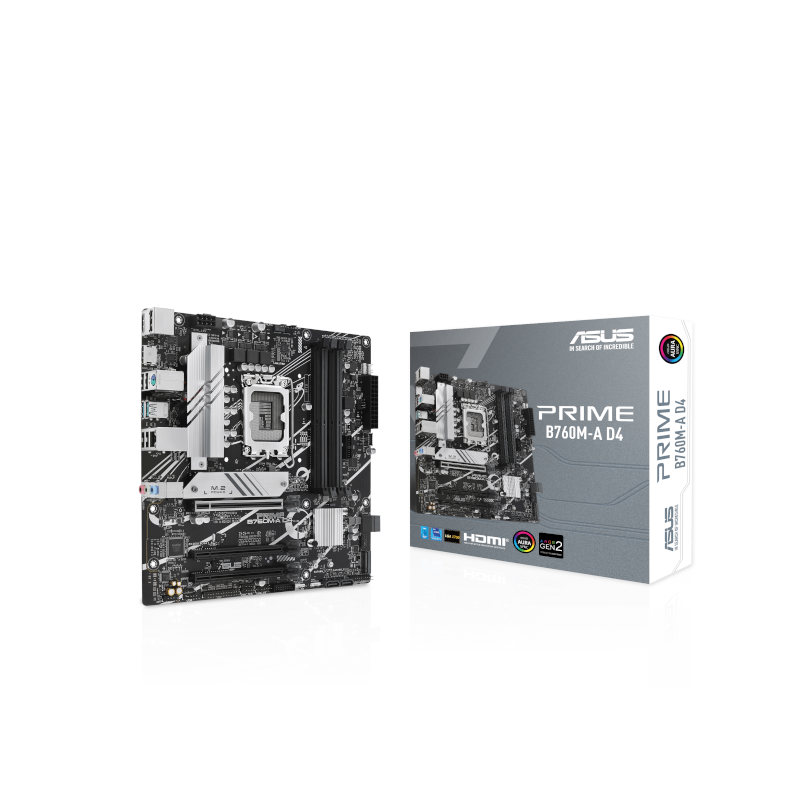

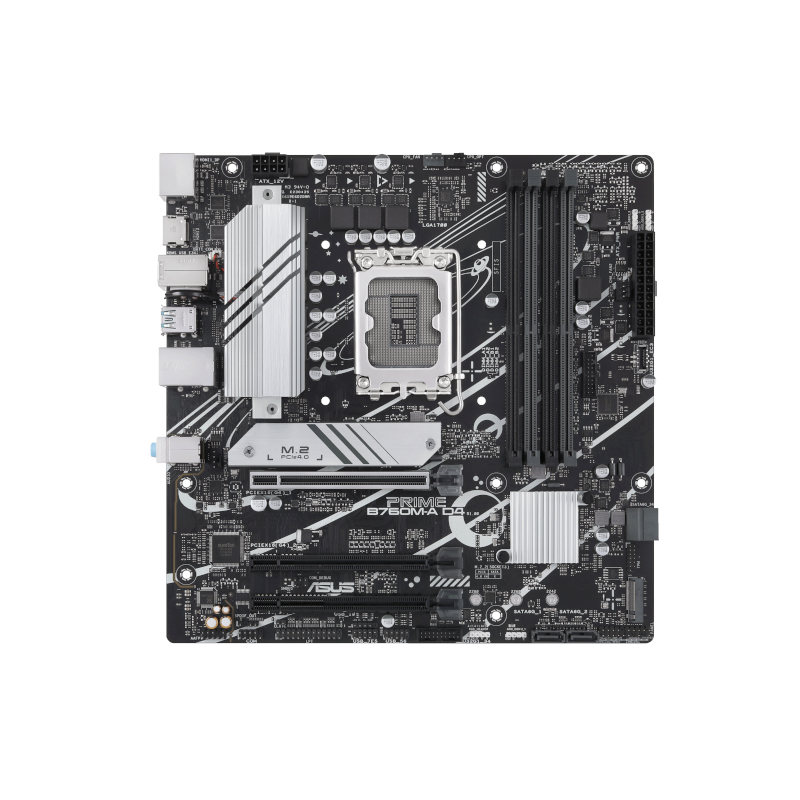

- Model: PRIME B760M-A D4
PRIME B760M-A D4
Intel® B760 (LGA
1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet,
DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1
Type-C®, Aura Sync
- Intel® LGA 1700
Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast
Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen
2, front USB 3.2 Gen 1 Type-C®
- Comprehensive
Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan
Xpert 2+
- ASUS OptiMem II:
Careful routing of traces and vias, plus ground layer optimizations to preserve
signal integrity for improved memory overclocking
- Aura Sync RGB
Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED
strips, easily synced with Aura Sync-capable hardware
Specification |
|
CPU |
Intel® Socket
LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™,
Pentium® Gold and Celeron® Processors* Supports Intel®
Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to
www.asus.com for CPU support list. ** Intel® Turbo
Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel® B760
Chipset |
Memory |
4 x DIMM, Max.
128GB, DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/
4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/
2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel
Memory Architecture Supports Intel®
Extreme Memory Profile (XMP) OptiMem II * Supported
memory types, data rate(Speed), and number of DRAM modules vary depending on
the CPU and memory configuration, for more information refer to www.asus.com
for memory support list. |
Graphics |
1 x DisplayPort** 2 x HDMI®
ports*** * Graphics
specifications may vary between CPU types. Please refer to www.intel.com for
any updates. ** Supports max.
4K@60Hz as specified in DisplayPort 1.4. *** Supports
4K@60Hz as specified in HDMI® 2.1. |
Expansion Slots |
Intel® 13th &
12th Gen Processors 1 x PCIe 4.0 x16
slot Intel® B760
Chipset 1 x PCIe 4.0 x16
slot (supports x4 mode) 1 x PCIe 4.0 x16
slot (supports x1 mode) Note: To ensure
compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals. |
Storage |
Total supports 2
x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th &
12th Gen Processors M.2_1 slot (Key
M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760
Chipset M.2_2 slot (Key
M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s
ports * Intel® Rapid
Storage Technology supports SATA RAID 0/1/5/10. |
Ethernet |
1 x Realtek 2.5Gb
Ethernet |
USB |
Rear USB (Total 6
ports) 2 x USB 3.2 Gen 2
ports (2 x Type-A ) 4 x USB 2.0 ports
(4 x Type-A) Front USB (Total
10 ports) 2 x USB 3.2 Gen 1
headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1
connector (supports USB Type-C®) 2 x USB 2.0
headers support 4 additional USB 2.0 ports 1 x USB 2.0
header supports 1 additional USB 2.0 port |
Audio |
Realtek 7.1
Surround Sound High Definition Audio CODEC* - Supports:
Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to
24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio
capacitors - Dedicated audio
PCB layers * A chassis with
an HD audio module in the front panel is required to support 7.1 Surround
Sound audio output. |

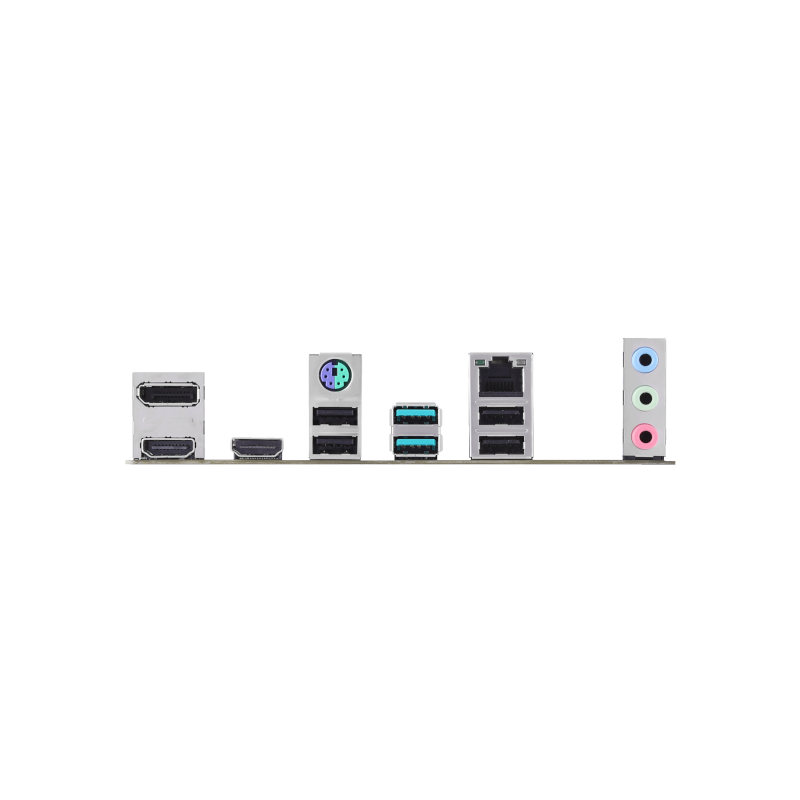

Back Panel I/O
Ports |
2 x USB 3.2 Gen 2
ports (2 x Type-A ) 4 x USB 2.0 ports
(4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Realtek 2.5Gb
Ethernet port 3 x Audio jacks 1 x PS/2
Keyboard/Mouse combo port |
Internal I/O
Connectors |
Fan and Cooling
related 1 x 4-pin CPU Fan
header 1 x 4-pin CPU OPT
Fan header 2 x 4-pin Chassis
Fan headers Power related 1 x 24-pin Main
Power connector 1 x 8-pin +12V
Power connector Storage related 2 x M.2 slots
(Key M) 4 x SATA 6Gb/s
ports USB 2 x USB 3.2 Gen 1
headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1
connector (supports USB Type-C®) 2 x USB 2.0 headers
support 4 additional USB 2.0 ports 1 x USB 2.0
header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable
Gen 2 headers 1 x Aura RGB
header 1 x Clear CMOS
header 1 x COM Port
header 1 x Front Panel
Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out
header 1 x SPI TPM
header (14-1pin) 1 x 20-3 pin
System Panel header with Chassis intrude function |
Special Features |
ASUS 5X
PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage
Protection - SafeSlot Core+ - Stainless-Steel
Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal
Solution - M.2 heatsink - VRM heatsink
design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen
2 headers |
Software Features |
ASUS Exclusive
Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton Deluxe (60
Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree
BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS
EZ Mode |
BIOS |
128 Mb Flash ROM,
UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables 2 x SATA 6Gb/s
cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber
Package 1 x Screw package
for M.2 SSD Documentation 1 x User guide |
Operating System |
Windows® 11
64-bit, Windows® 10 64-bit |
Form Factor |
mATX Form Factor 9.6 inch x 9.6
inch ( 24.4 cm x 24.4 cm ) |
Warranty |
3 Years |
Note* |
Price,
feature and specifications are subject to change without notice. |
