CPU

Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors

Supports up to Intel 65W CPU

*Refer to www.asus.com for CPU support list

Chipset

Intel H610 Chipset

Memory

2x DIMM Max 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics

1x D-Sub

1x HDMI port

*Graphics specifications may Vary between CPU types. Please refer to www.intes.com for any updates

Expansion Slots

Intel® 12th Gen Processors

1 x PCle 4.0 x16 slot

Intel H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)

2x USB 3.2 Gen 1 ports (2x Type-A)

4x USB 2.0 ports (4x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC -Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

-Audio Shielding

-Supports up to 24-Bit/192 kHz playback

-Premium audio capacitors -Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 2.1 Surround Sound audio output

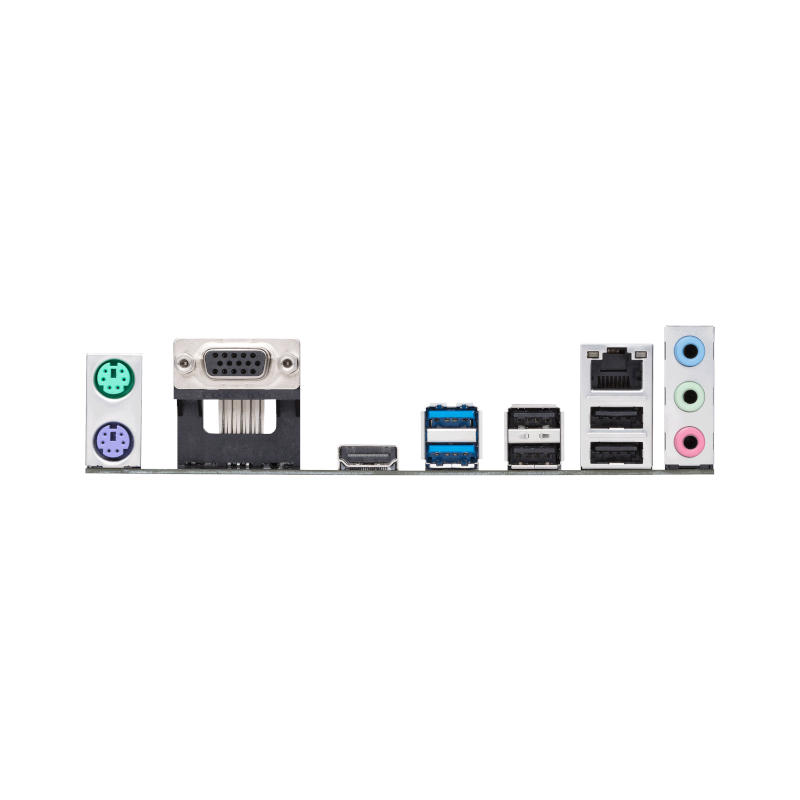

Back Panel I/O Ports

-2x USB 3.2 Gen 1 ports (2 x Type-A)

-4x USB 2.0 ports (4x Type-A)

-1 x D-Sub port

-1 x HDMI port

-1x Realtek 1Gb Ethernet port

-3x Audio jacks

-1 x PS/2 Keyboard (purple) port

1x PS/2 Mouse (green) port

BIOS

UEFI BIOS

Operating System

Windows 11 x64, Windows 10 x64

Form Factor

micro-ATX

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
