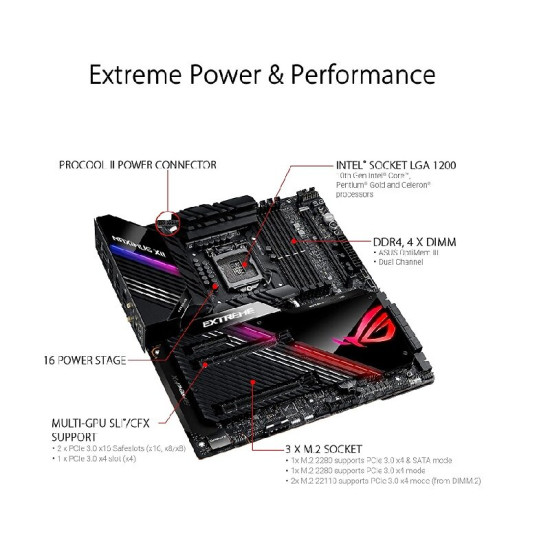

ASUS ROG Maximus XII Extreme Motherboard

ROG Maximus XII Extreme

Expertly tuned by our ROG Engineers to bring you the ultimate performance. Made to be extreme as the name suggested, is positioned for max performance water-cooling enthusiasts. Combining hardware and software, to achieve optimized overclocking, high-speed memory support and comprehensive water and fan cooling controls, Maximus XII Extreme delivers ultimate performance combined with efficient, reliable operation.



Specification

CPU


Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Supports Intel® 14nm CPU

* Refer to www.asus.com for CPU support list

Chipset


Intel® Z490

MEMORY


4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

OptiMem III

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Supports Intel® Extreme Memory Profile (XMP)

Dual Channel Memory Architecture

Multi-GPU Support

Supports NVIDIA 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

Intel® 10th Gen Processors

Intel® Z490 Chipset

1 x PCIe 3.0 x4 *1

2 x PCIe 3.0 x16 (x16 or dual x8)

Storage

Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports

Intel® 10th Gen Processors :

Intel® Z490 Chipset :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*3

1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2

Intel® Rapid Storage Technology supports

8 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

LAN


Intel® I225-V 2.5Gb Ethernet

Marvell® AQtion AQC107 10Gb Ethernet

ASUS LANGuard

Wireless Data Network

Intel® Wi-Fi 6 AX201

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports up to 2.4Gbps max data rate

Supports CNVI interface

Supports channel bandwidth: HT20/HT40/HT80/HT160

Supports dual band frequency 2.4/5 GHz

Bluetooth


Bluetooth v5.1*

*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220

- ESS™ ES9023 DAC + RC4580 OP AMP

- Premium Japanese audio capacitors

- Audio Cover

LED-illuminated audio jacks

- SupremeFX Shielding™ Technology

- Impedance sense for front and rear headphone outputs

- Supports : Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- Supports up to 32-Bit/192kHz playback

- Optical S/PDIF out port(s) at back panel

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Audio Feature :

USB Ports


Rear USB Port ( Total 12 )

1 x USB 3.2 Gen 2x2 port(s)

3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM)

6 x USB 3.2 Gen 1 port(s)(6 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 10 )

2 x USB 3.2 Gen 2 front panel connector port(s)

4 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

Software Features

ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- OLED Display
AI Suite 3:
- 5-Way Optimization with AI Overclocking
TPU
EPU
Digi+ Power Control
Fan Xpert 4
Turbo app
- EZ update
AI Charger
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

ASUS Special Features

ROG Extreme OC kit
- EZ PLUG
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- Infineon TDA21490 Power Stage
- MicroFine Alloy Choke
ASUS Q-Design
- ASUS Q-Code
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink cover
- Steel backplate
ASUS EZ DIY
- BIOS Flashback™ button
- Clear CMOS button
- Procool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- ROG Aura sync backplate
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
LiveDash OLED 2"

Back I/O Ports


1 x LAN (2.5G) port(s)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2

1 x USB BIOS FlashBack™ Button(s)

6 x USB 3.2 Gen 1

5 x LED-illuminated audio jacks

1 x Aquantia AQC-107 10G LAN port

1 x Optical S/PDIF out

1 x Clear CMOS button(s)

1 x ASUS Wi-Fi Module

2 x USB 2.0

Internal I/O Ports

1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)

2 x USB 3.2 Gen 2 front panel connector

2 x RSVD Switch

1 x FlexKey button

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

8 x ProbeIt Measurement Points

2 x W_PUMP+ connector

1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

2 x 8-pin ATX 12V Power connector(s)

8 x Radiator Fan Headers

1 x Thunderbolt header(s)

1 x 4-pin EZ_PLUG Power connector(s)

1 x WB_SENSOR

1 x BIOS Switch button(s)

1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x W_IN header

1 x W_OUT header

1 x W_FLOW header

1 x Node Connector(s)

1 x AAFP connector

2 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

8 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x Slow Mode switch(es)

1 x Thermal sensor connector(s)

1 x LN2 Mode jumper(s)

1 x Safe Boot button

1 x ReTry button

1 x System panel connector

1 x Speaker connector

1 x Start button

2 x Aura RGB Strip Headers

Accessories

2 x mini DisplayPort Cable

8 x ROG weave SATA 6G cable

2 x M.2 Pad for ROG DIMM.2

1 x ROG Multi-Bit screwdriver

1 x THUNDERBOLTEX 3-TR Card

1 x ASUS TB header cable

1 x USB2.0 Cable

ROG key chain

1 x 2-in-1 Rubber pad

1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)

3 x M.2 Screw Package

1 x ROG DIMM.2 with heatsink

3 x Thermistor cable(s)

1 x USB drive with utilities and drivers

1 x ROG logo plate sticker

1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)

1 x Fan Extension Card II power cable

1 x Fan Extension Card II NODE connector cable

1 x Fan Extension Card II screw package

1 x ROG big sticker

1 x Q-Connector

1 x Wi-Fi Antenna(s)

1 x Extension Cable for RGB strips (80 cm)

User´s manual

1 x Extension cable for Addressable LED

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Form Factor

12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Extended ATX Form Factor

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.


*1 PCIEx4 slot shares bandwidth with SATA6G_56 and PCIEx4 slot is default set at x2 mode. Please adjust BIOS settings to enable Thunderbolt card.
*2 The DIMM.2 Slots are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots.
*3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled.
*4 USB 3.2 Gen 2x2 works at PCIe 3.0 x2 speeds
