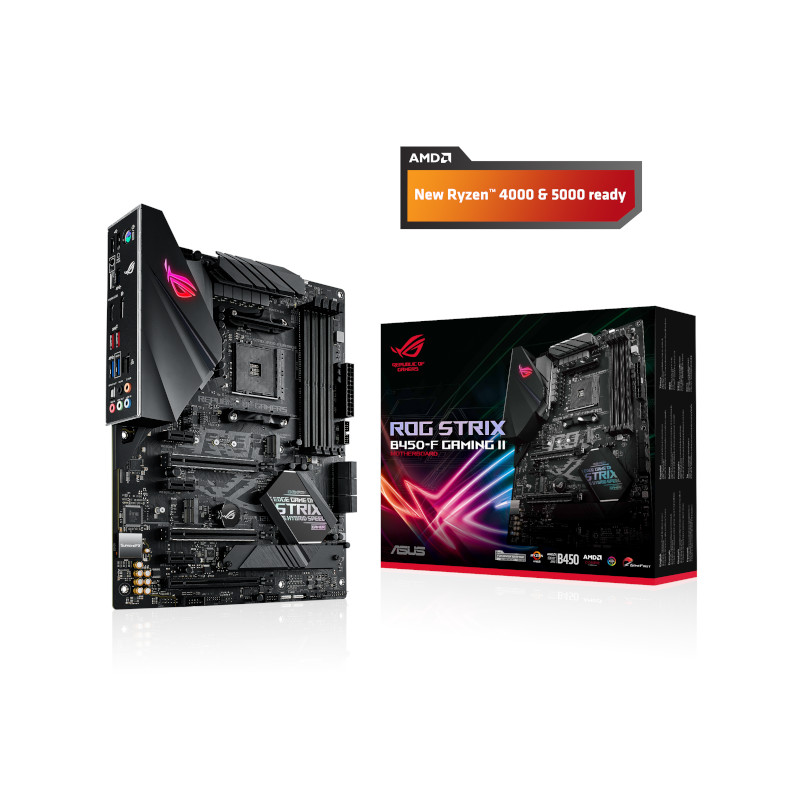

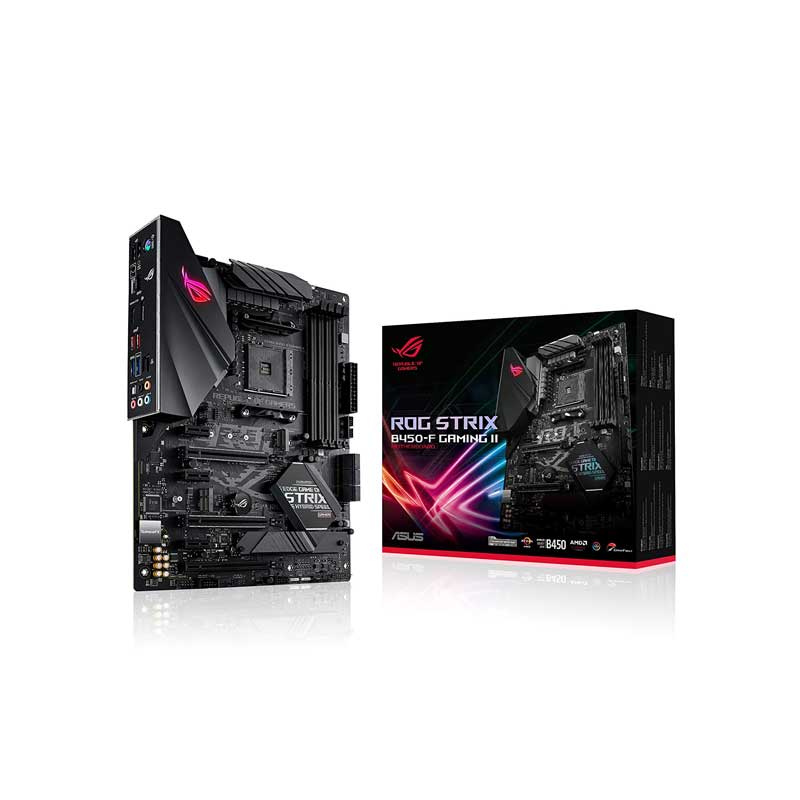

ASUS ROG STRIX B450-F GAMING II Motherboard

ASUS ROG STRIX B450-F GAMING II

AMD AM4 B450 Gaming ATX motherboard with DDR4 4400 MHz support, AI Noise-Canceling Microphone, M.2 with heatsink, USB 3.2 Gen 2, SATA 6 Gbps and Aura Sync RGB lighting

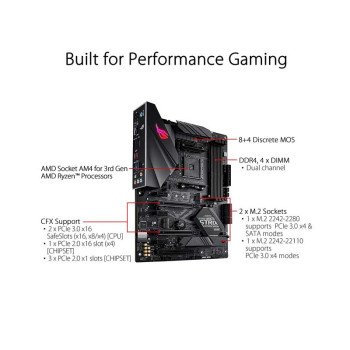

  • AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
  • Robust power solution: 8+4 discrete MOS with high-quality alloy chokes and durable capacitors
  • Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMI® 2.0 and DisplayPort™ 1.2 output support
  • Smooth networking: M.2 socket with E-key and Intel® Gigabit Ethernet with ASUS LANGuard
  • Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot

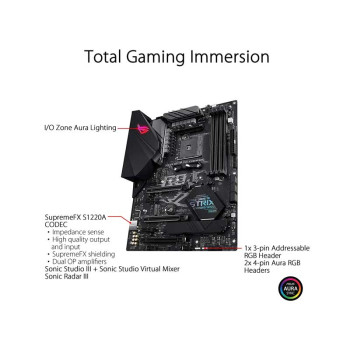

  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable RGB header
  • Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec and Sonic Studio III for immersive sound





Specification

CPU

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

* Refer to www.asus.com for CPU support list

Chipset

AMD B450

Memory

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Dual Channel Memory Architecture

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

1 x HDMI 2.0b

1 x DisplayPort 1.2

*Graphics specifications may vary between CPU types.

Integrated Graphics Processor

Expansion Slots

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1

Multi-GPU Support

Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0 x16 (x16 or x8/x4)

1 x PCIe 2.0 x16 (x4 mode) *

3rd/2nd/1st Gen AMD Ryzen™ Processors

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe 2.0 x1

AMD Athlon™ with Radeon™ Vega Graphics Processors

AMD B450 chipset

1 x PCIe 3.0 x16 (x8 mode)

Storage

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

3rd/2nd/1st Gen AMD Ryzen™ Processors :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :

1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

2 x SATA 3Gb/s port(s),

2 x SATA 6Gb/s port(s),

2 x SATA 6Gb/s port(s)

AMD Athlon™ with Radeon™ Vega Graphics Processors :

AMD B450 chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Intel® I211-AT 1Gb Ethernet

ASUS LANGuard

Audio

ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A

- Audio Shielding

- Premium Japanese audio capacitors

- Audio Cover

- Optical S/PDIF out header(s) at mid-board

- SupremeFX Shielding™ Technology

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- Supports up to 32-Bit/192kHz playback *

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Audio Feature :

Operating System

Windows® 10 64-bit

USB Ports

4 x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-C®)

Front USB Port ( Total 4 )

2 x USB 3.2 Gen 2 port(s)(2 x Type-A)

Rear USB Port ( Total 8 )

2 x USB 3.2 Gen 1 port(s)

2 x USB 2.0 port(s)

Software Features

ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- Aura Creator
- Aura Sync
Ai noise cancelling microphone
AI Suite 3:
- 5-Way Optimization by Dual Intelligent Processors 5
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
- EZ update
AI Charger
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features

Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot

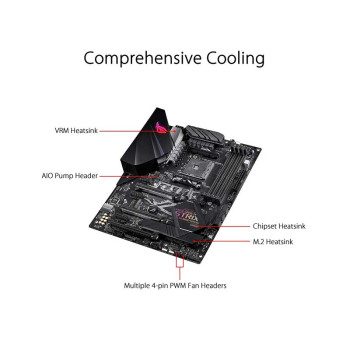

ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS FlashBack™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Pre-mounted I/O shield
- SafeSlot

Back I/O Ports

1 x Intel® I211-AT 1Gb Ethernet

2 x USB 3.2 Gen 2

3 x USB 3.2 Gen 1 Type-A

1 x USB 3.2 Gen 1 USB Type-C®

1 x BIOS FlashBack™ Button(s)

1 x DisplayPort

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x PS/2 keyboard/mouse combo port(s)

1 x HDMI

2 x USB 2.0

Internal I/O Ports

1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

1 x Addressable RGB header

1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x TPM header

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x AAFP connector

2 x Aura RGB Strip Header(s)

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

Accessories

1 x M.2 SSD screw package(s)

1 x M.2 Rubber Package(s)

4 x SATA 6Gb/s cable(s)

1 x ROG Strix stickers

1 x Cable ties pack(s)

1 x Extension Cable for RGB strips (80 cm)

1 x ROG Thank you card

User´s manual

1 x Supporting DVD

1 x Extension cable for Addressable LED

BIOS


256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ATX Form Factor

Warranty

3 Years

Note*

* PCIe x16_3 slot share bandwidth with PCIe x1_1, PCIe x1_2 and PCIe x1_3
* When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled.
*When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode.

Price, feature and specifications are subject to change without notice.
