- Model: ROG-STRIX-RTX3060-12G-V2-GAMING
ROG-STRIX-RTX3060-12G-V2-GAMING

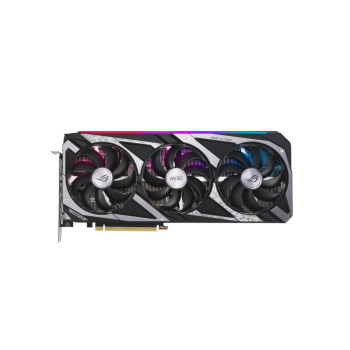

- ROG Strix GeForce RTX™ 3060 V2 12GB GDDR6 buffed-up design
with chart-topping thermal performance.
- NVIDIA Ampere Streaming Multiprocessors: The building blocks
for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X
the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st
gen RT Cores, plus concurrent RT and shading for a whole new level of ray
tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput
with structural sparsity and advanced AI algorithms such as DLSS. These cores
deliver a massive boost in game performance and all-new AI capabilities.
- Axial-tech fan design has been newly tuned with a reversed
central fan direction for less turbulence.
- 2.7-slot design expands cooling surface area to make the
most of the three powerful Axial-tech fans.
- Super Alloy Power II includes premium alloy chokes, solid
polymer capacitors, and an array of high-current power stages.
- GPU Tweak II provides intuitive performance tweaking,
thermal controls, and system monitoring.
Specification |
|
Graphic Engine |
NVIDIA® GeForce RTX™ 3060 |
Bus Standard |
PCI Express 4.0 |
OpenGL |
OpenGL®4.6 |
Video Memory |
12GB GDDR6 |
Engine Clock |
OC Mode - 1807 MHz
(Boost Clock) Gaming Mode - 1777
MHz (Boost Clock) |
CUDA Core |
3584 |
Memory Speed |
15 Gbps |
Memory Interface |
192-bit |
Resolution |
Digital Max Resolution 7680 x 4320 |
Interface |

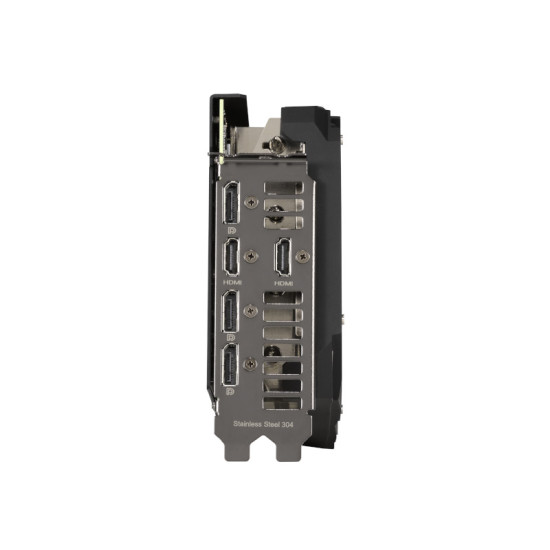

Yes x 2 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
Maximum Display Support |
4 |
NVlink/ Crossfire Support |
No |
Accessories |
1 x ROG Velcro Hook & Loop |
Software |
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio
Driver: please download all software from the support site. |
Dimensions |
11.81 " x 5.26 " x 2.11 " Inch |
Recommended PSU |
650W |
Power Connectors |
1 x 8-pin |
Slot |
2.7 Slot |
AURA Sync |
ARGB |
Warranty |
3 Years |
Note* |
* Our wattage recommendation is based on a fully
overclocked GPU and CPU system configuration. For a more tailored suggestion,
please use the “Choose By Wattage” feature on our PSU product
page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html Price, feature and specifications
are subject to change without notice |
