- Model: ROG STRIX HELIOS GX601 BLACK

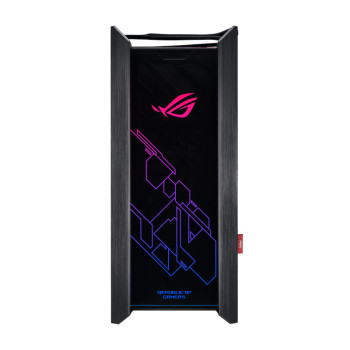

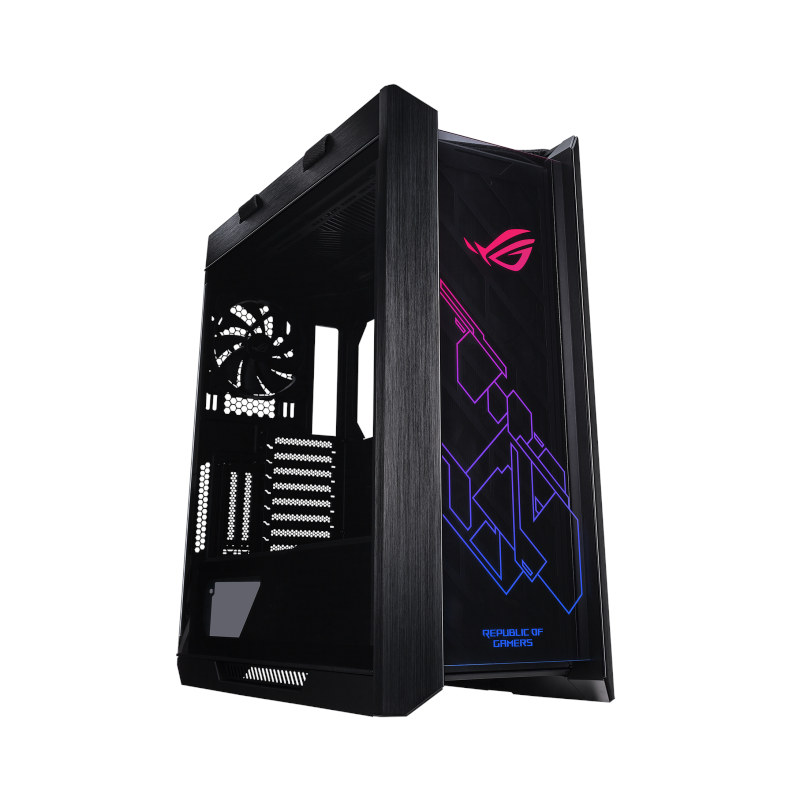

ROG Strix Helios (GX601)
ROG Strix Helios
RGB ATX/EATX mid-tower gaming case with tempered glass, aluminum frame, GPU
braces, 420mm radiator support and Aura Sync
- Premium design
& aesthetics: Made for showcase builds with three tempered-glass panels,
brushed-aluminum frame and integrated Aura Sync RGB front lighting
- Clean build made
easy: A multifunction cover with graphics card holders, a PSU shroud and a
translucent rear cable cover offer effortless cable management
- Versatile GPU
mounting: Install three graphics cards in standard orientation, or two
vertically for extra showcase flair using a bundled bracket
- Ready for serious
cooling: Supports an up to EATX motherboard, with room for 420mm front
radiators and water-cooling pump and reservoir
- Advanced I/O panel:
USB 3.1 Gen 2 Type-C™ port, four USB 3.0 ports, an RGB-lighting control button
and a fan-speed control button
- Comfortable case
handles: Easily carry your prized build to LAN parties with ergonomic and
stylish fabric handles
|
Specification |
|
|
Model |
ROG Strix Helios (GX601) |
|
Case Size |
Mid Tower |
|
Motherboard Support |
EATX (12"x10.9") ATX Micro-ATX Mini-ITX |
|
Drive Bays |
4 x 2.5" Bay 2 x 2.5"/3.5" Combo Bay |
|
Expansion Slots |
8 2 (additional vertical) |
|
Front I/O Port |
1 x Headphone 1 x Microphone 4 x USB 3.1 Gen1 1 x USB 3.1 Gen2 Type C LED Control Button Fan Control Button Reset Button |
|
Tempered Glass |
Front Side Left Side Right Side |
|
Radiator Support (Front) |
120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
|
Radiator Support (Top) |
120 mm 140 mm 240 mm 280 mm 360 mm |
|
Radiator Support (Rear) |
120 mm 140 mm |
|
Cooling Support (Front) |
3 x 120 mm 3 x 140 mm Radiator + Fan Thickness: Max. 90 mm |
|
Cooling Support (Top) |
3 x 120 mm 2 x 140 mm Radiator + Fan Thickness: Max. 60 mm |
|
Cooling Support (Rear) |
1 x 120 mm 1 x 140 mm |
|
Pre-installed Fans (Front) |
3 x 140 mm |
|
Pre-installed Fans (Rear) |
1 x 140 mm |
|
Maximum CPU Cooler Height |
190 mm |
|
Maximum GPU Length |
450 mm (Riser Cable above 200mm in length is
required for one GPU install in vertical position) |
|
Maximum PSU Length |
220 mm |
|
Removable Dust Filters |
Front Top Bottom |
|
Maximum Cable Management Space |
33 mm |
|
Dimensions |
250 x 565 x 591 mm |
|
Weight |
18Kg |
|
AURA Sync |
ARGB |
|
Warranty |
1 Year |
|
Note* |
Price,
feature and specifications are subject to change without notice |
