- Model: ROG-STRIX-RX6700XT-O12G-GAMING
ROG-STRIX-RX6700XT-O12G-GAMING

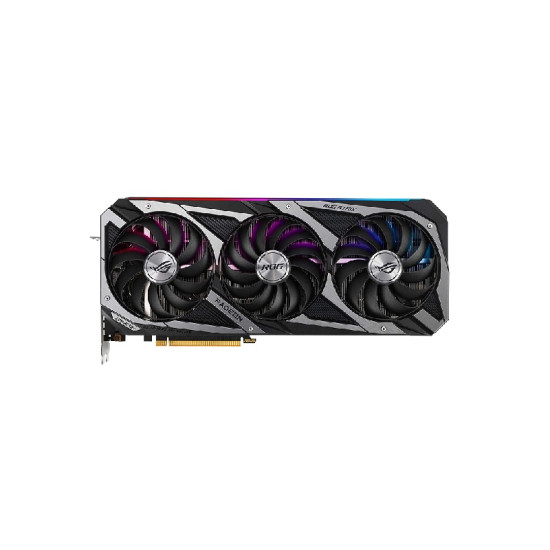

ROG Strix Radeon™ RX 6700 XT OC Edition 12GB GDDR6 is a cooling and power-performance juggernaut.
- Axial-tech Fan Design has been enhanced with more fan
blades and a new rotation scheme.
- 2.9-slot design expands cooling surface area
compared to last gen for more thermal headroom than ever before.
- Super Alloy Power II includes premium alloy chokes,
solid polymer capacitors, and an array of high-current power stages.
- MaxContact heat spreader allows 2X more contact with
the GPU chip for improved thermal transfer.
- A reinforced frame prevents excessive torsion and
lateral bending of the PCB.
- FanConnect II equips a hybrid-controlled fan header for
optimal system cooling.
- A vented backplate prevents hot air from
recirculating through the cooling array.
Specification |
|
Graphic Engine |
AMD Radeon RX 6700 XT |
Bus Standard |
PCI Express 4.0 |
OpenGL |
OpenGL®4.6 |
Video Memory |
12GB GDDR6 |
Engine Clock |
OC mode : Up to 2622 MHz (Boost Clock)/Up to 2568 MHz
(Game Clock) |
Stream Processors |
2560 |
Memory Speed |
16 Gbps |
Memory Interface |
192-bit |
Resolution |
Digital Max Resolution 7680 x 4320 |
Interface |
Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
Maximum Display Support |
4 |
NVlink/ Crossfire Support |
Yes |
Software |
ASUS GPU Tweak II & Drivers: please download all
software from the support site. |
Accessories |
1 x ROG Velcro Hook & Loop |
Dimensions |
322 x 141 x 56.5 mm |
Recommended PSU |
650W |
Power Connectors |
2 x 8-pin |
Slot |
2.9 Slot |
Warranty |
3 Years |
Note* |
Price, feature and specifications
are subject to change without notice |
