CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 192GB, DDR5

Supports up to

8000+MT/s(OC) with Ryzen™ 9000 Series Processors,

8400+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x HDMI™ port**

2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slots (supports x16 mode)

AMD X870E Chipset**

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**

AMD X870E Chipset

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.

** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.

Ethernet

1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

USB

Rear USB (Total 13 ports)

2 x USB4® (40Gbps) ports(2 x USB Type-C®)

1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**

10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)

Front USB (Total 11 ports)

1 x USB 20Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support additional 4 USB 5Gbps ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

* USB Type-C® power delivery output: 5V/3A

** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- Audio Shielding

- Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

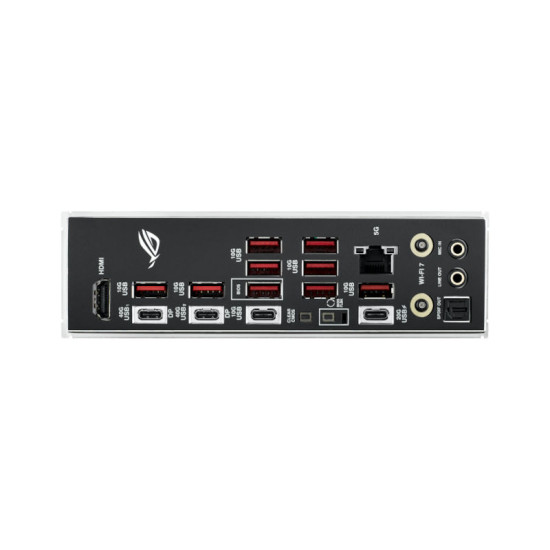

Back I/O Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C®)

1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)

10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)

1 x HDMI™ port

1 x Wi-Fi Module

1 x Realtek 5Gb Ethernet

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

Internal I/O Ports

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Code

- Q-Dashboard

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsinks

- M.2 heatsink backplate

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen 2 headers

Special Features

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- GameFirst

- HWiNFO

- Power Saving

ASUS Driver Hub

ASUS GlideX

TurboV Core

USB Wattage Watcher

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI

BIOS EZ Mode

- ASUS

MyHotkey

Dynamic OC Switcher

FlexKey

Software Features

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- GameFirst

- HWiNFO

- Power Saving

ASUS Driver Hub

ASUS GlideX

USB Wattage Watcher

TurboV Core

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

Dynamic OC Switcher

FlexKey

BIOS

256 Mb  Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Q-Latch package

2 x M.2 Q-Slides

1 x ROG key chain

1 x ROG Strix stickers

5 x M.2 Rubbers

Documentation

1 x Quick start guide

Operating System Support

Windows® 11 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
