- Model: ROG-THOR-850P
ROG-THOR-850P

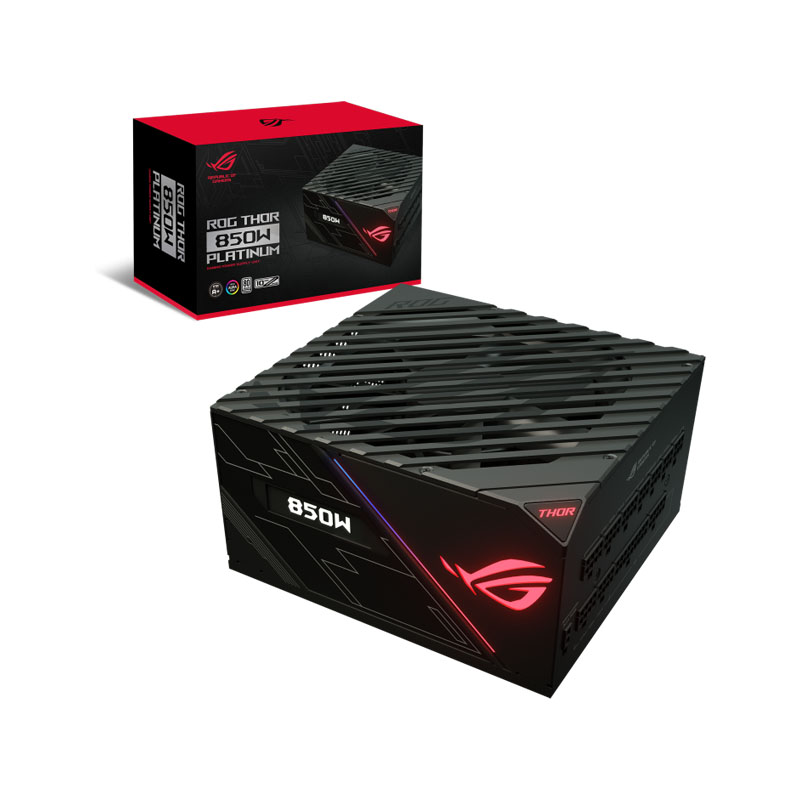

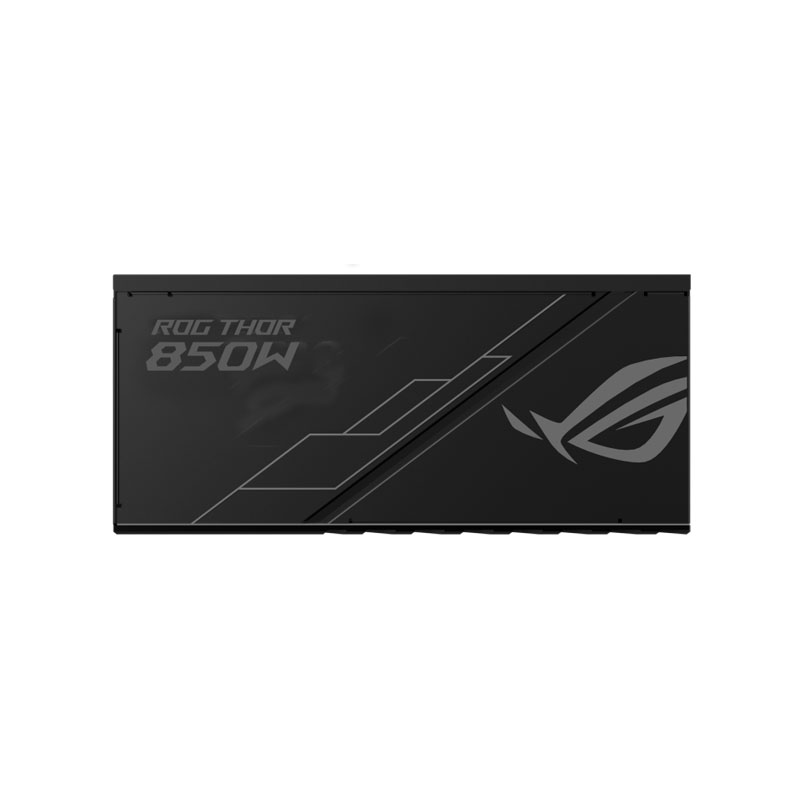

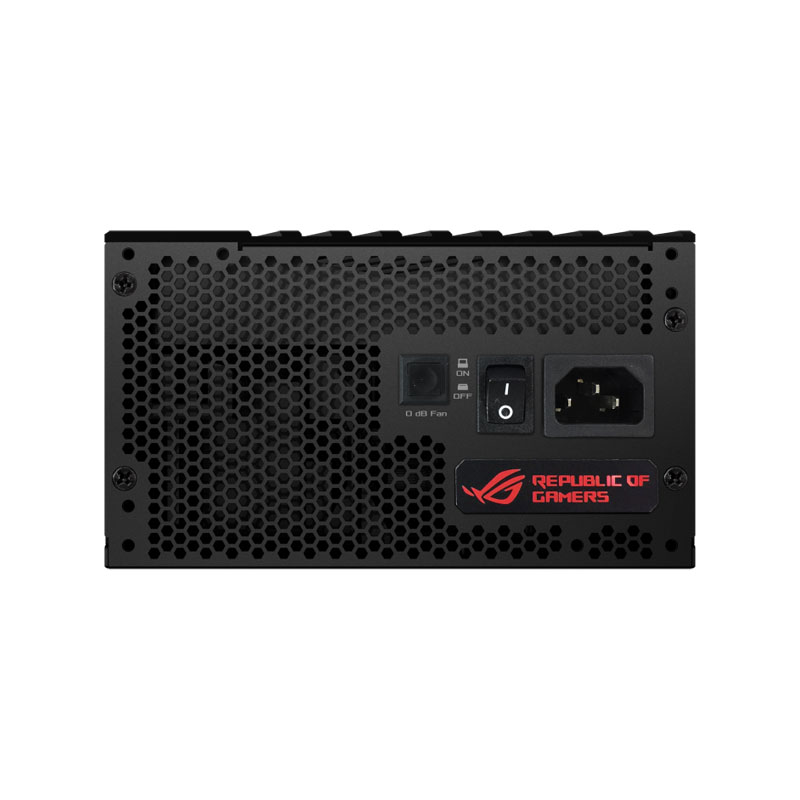

ROG Thor 850W Platinum Power Supply Unit stands out with Aura Sync and an OLED display
- Aura Sync : Advanced customization with addressable RGB LEDs
and Aura Sync compatibility
- OLED Power Display : Real-time power draw monitoring with
OLED Power Display
- ROG Thermal Solution : 0dB cooling with dustproof IP5X
Wing-blade Fan and ROG heatsink design
- 80 PLUS Platinum : Built with 100% Japanese capacitors and
other premium components
- Sleeved Cables : For easy building and superior aesthetics
|
Specification |
|
|
Intel Specification |
ATX12V |
|
Dimensions |
16 x 15 x 8.6
Centimeter |
|
Efficiency |
80Plus Platinum (At
20%/50%/100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is
90%/92%/89%.) |
|
Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
|
Hazardous Materials |
ROHS |
|
AC Input Range |
100-240Vac |
|
RGB Connector |
Aura Sync |
|
DC Output Voltage |
+3.3V +5V +12V -12V
+5Vsb |
|
Maximum Load |
20A 20A 71A 0.3A 3A |
|
Total Output |
850W |
|
Connectors |
MB 24/20-pin*1 CPU 8/4-pin*2 PCIE 8/6-pin*4 SATA *12 Peripheral 4-pin*5 Floppy*1 |
|
Package Contents |
Power Cord x 1 Motherboard Power
Cable (24-pin) x 1 CPU Cable (4+4-pin)
x 2 PCI-E Cable
(6+2-pin) x 3 SATA Cable x 3 Peripheral x 2 SATA to Peripheral
Cable x 1 Addressable RGB
Cables x 2 ROG Sticker x 1 ROG Cable Tie x 4 Sleeved Cable Combs
(6-pin) x 2 Sleeved Cable Combs
(8-pin) x 6 Sleeved Cable Combs
(24-pin) x 2 Chassis Screws
Package x 1 Cable Tie x 10 User Manual x 1 |
|
Warranty |
10 Year |
|
Note* |
Price, feature and
specifications are subject to change without notice. |
