CPU

Intel® Socket LGA1700 for 14th, 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory

4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI® port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel® B760 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x1 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

USB

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports*

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback "

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

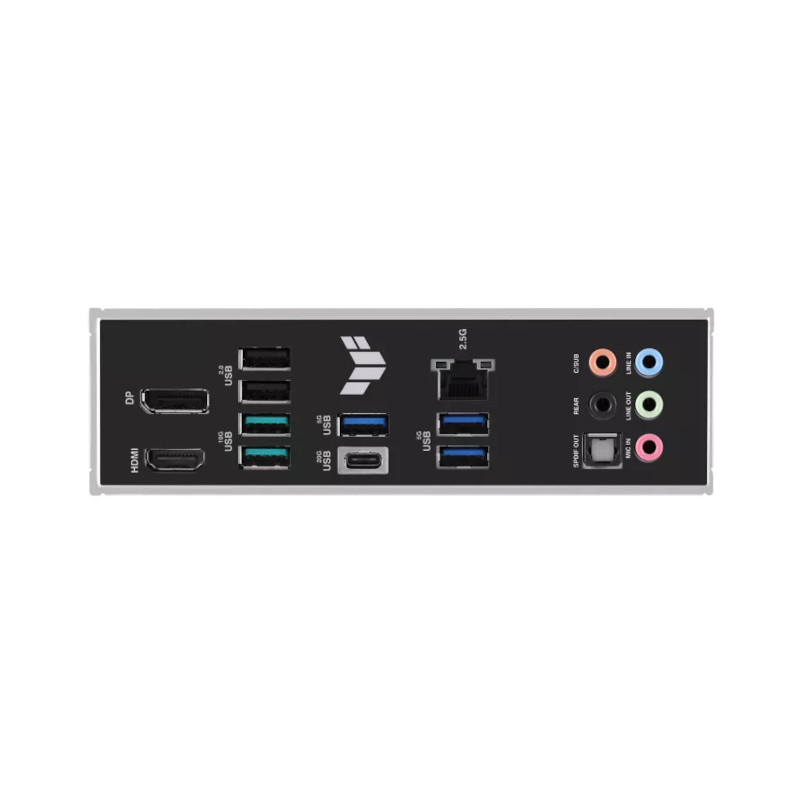

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Internal I/O Connectors

I/O Connectors  Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 2+

- Power Saving

- Two-Way AI Noise Cancelation

AI Suite 3

  DIGI+ VRM

- PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

Norton 360 for Gamers

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package

1 x Screw package for M.2 SSD

1 x TUF Gaming sticker

Documentation

1 x TUF Certification card

1 x User guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor

9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
