- Model: TUF RTX3060 O12G-GAMING/NON LHR

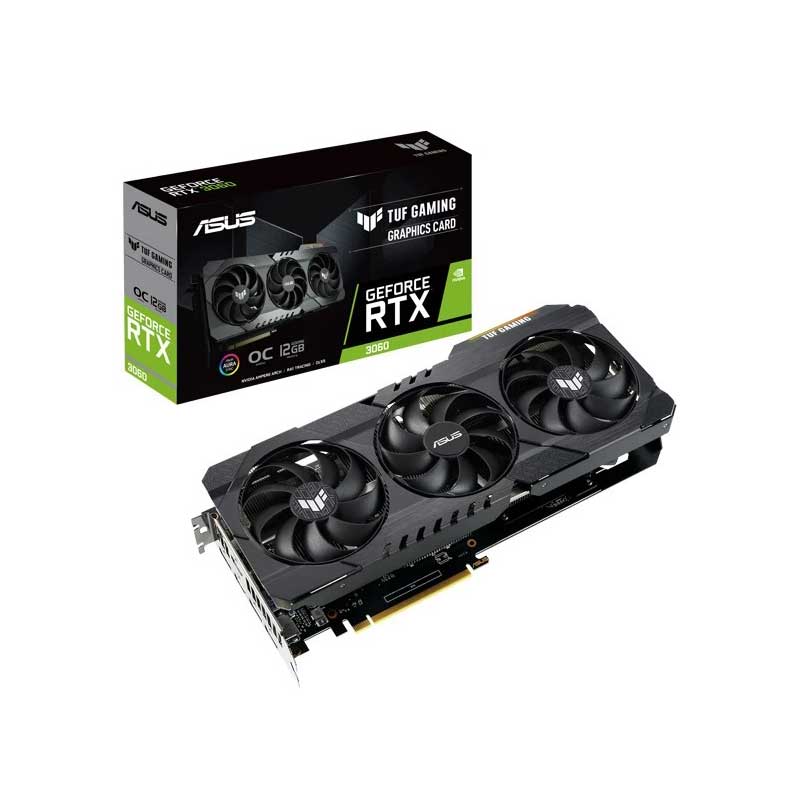

ASUS TUF Gaming GeForce RTX™ 3060 OC Edition 12GB GDDR6 buffed-up design with chart-topping thermal performance.
TUF Gaming GeForce RTX™ 3060 OC Edition
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- An all-aluminum shroud and metal backplate enhance durability.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
|
Specification |
|
|
Graphic Engine |
NVIDIA® GeForce RTX™ 3060 |
|
Bus Standard |
PCI Express 4.0 |
|
OpenGL |
OpenGL®4.6 |
|
Video Memory |
12GB GDDR6 |
|
Engine Clock |
OC Mode - 1882 MHz (Boost Clock) |
|
CUDA Core |
3584 |
|
Memory Speed |
15 Gbps |
|
Memory Interface |
192-bit |
|
Resolution |
Digital Max Resolution 7680 x 4320 |
|
Interface |
Yes x 2 (Native HDMI 2.1) |
|
Maximum Display Support |
4 |
|
NVlink/ Crossfire Support |
No |
|
Accessories
|
1 x TUF certificate of Reliability |
|
Software
|
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site |
|
Dimensions |
11.81 " x 5.63 " x 2.13 " Inch |
|
Recommended PSU |
750W |
|
Power Connectors |
1 x 8-pin |
|
Slot |
2.7 Slot |
|
Warranty |
3 Years |
|
Note* |
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html Price, feature and specifications
are subject to change without notice |
