- Model: FOR-500-KKN1

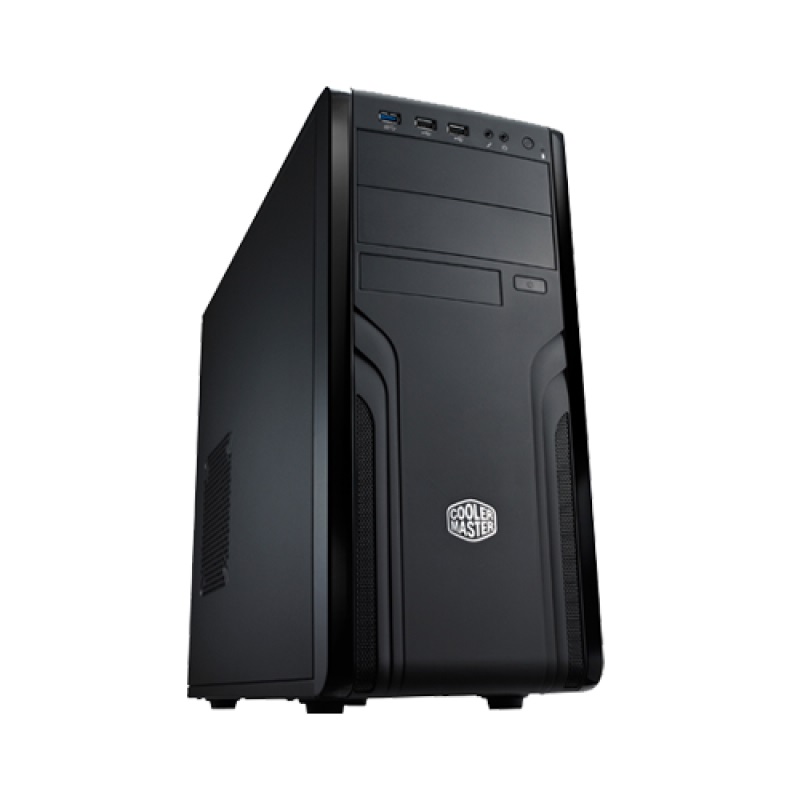

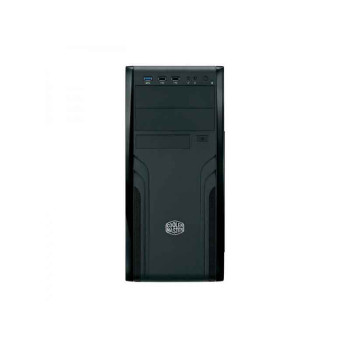

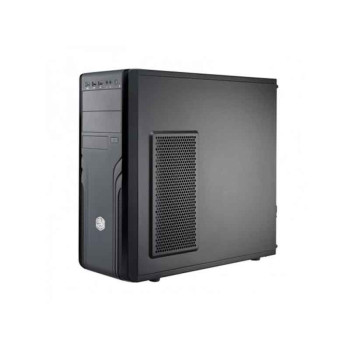

CM FORCE 500

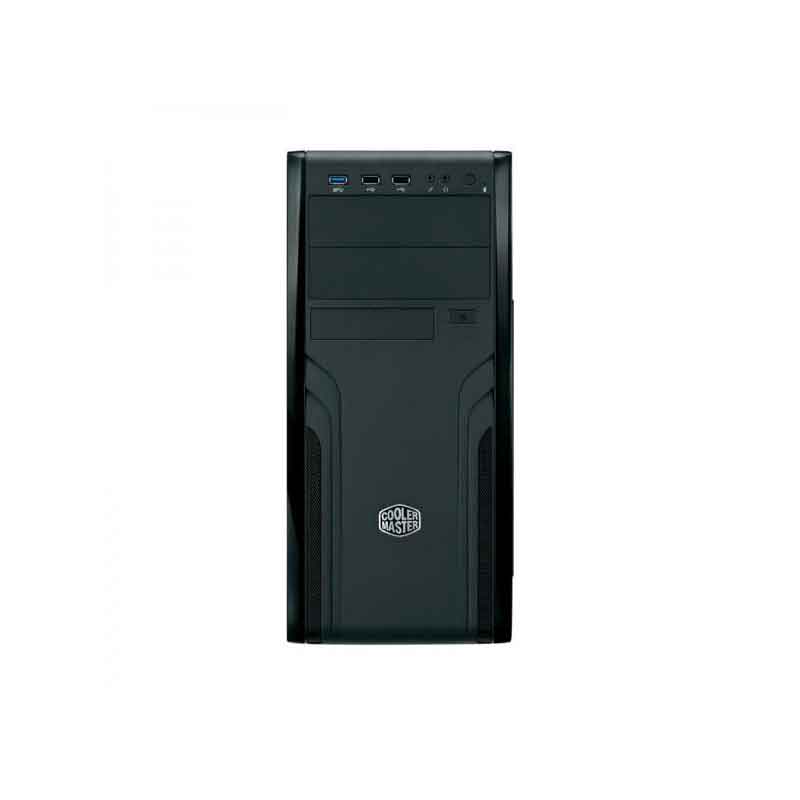

Classy and simplistic front panel design USB 3.0 super speed

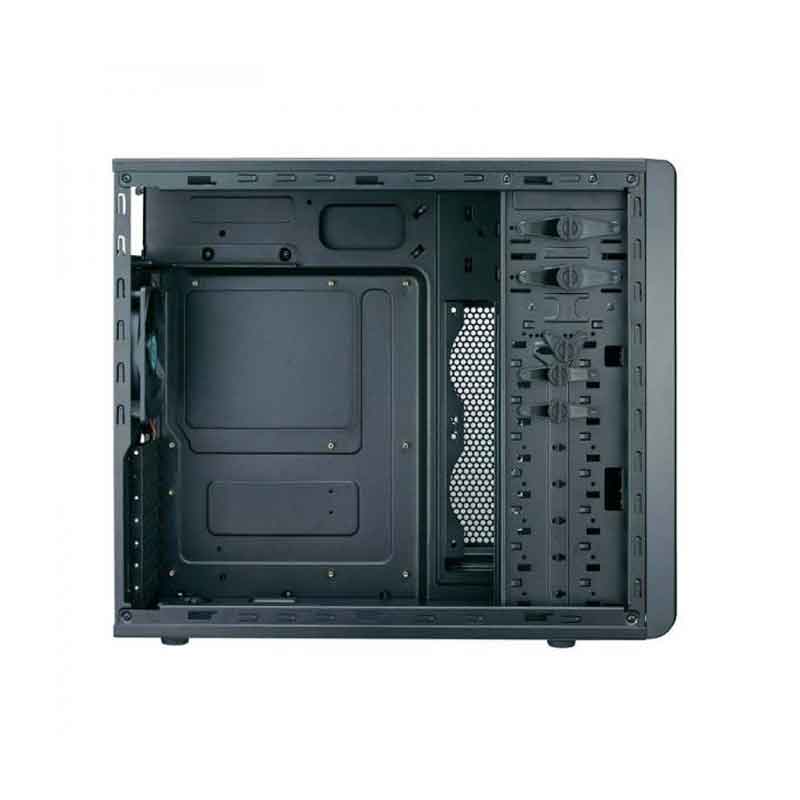

port (internal) Top mounted PSU slot for best PSU compatibility Large tray
cut-out for easy CPU cooler installation Supports all High-End VGAs including
the HD7990 Exposed 3.5” Slot for CardReaders Tool-free system for ODDs, card
reader and HDDs VGA cooling vent with 120/140 mm fan support HDD cooling vent
with 2x120mm fan support Supports up to 6 fans in total (1 pre-installed).
|
Specification |
|
|
Model Number |
FOR-500-KKN1 |
|
Color(s) |
Black |
|
Materials |
Steel body, Plastic |
|
Dimensions (L x W x H) |
190 x 426 x 491.5 mm / 7.5 x 16.8 x 19.4 inch |
|
Net Weight |
5.23 kg / 11.51 lbs |
|
Motherboard Support |
Micro ATX, ATX |
|
5.25" Drive Bays |
2 (exposed) |
|
3.5" Drive Bays |
8 (1 exposed, 7 hidden) |
|
2.5" Drive Bays |
1 (hidden) |
|
I/O Panel |
1x USB 3.0, 2x USB 2.0, 1x Mic, Audio In & Out
(Supports HD Audio) |
|

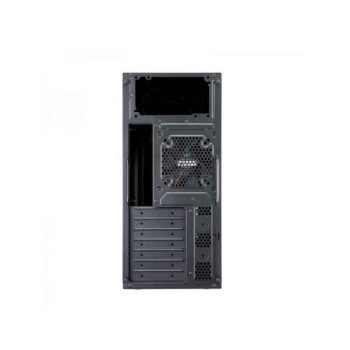

Expansion Slots |
7 |
|
Fan Support - Front |
1x 140mm Fan (optional) |
|
Cooling System - Front |
140mm fan x 1 (optional), or 120mm fan x 2 (optional) |
|
Cooling System - Rear |
120mm black fan x 1 (pre-installed) |
|
Cooling System - Left side |
120/140mm fan x 1 (optional) |
|
Cooling System - Right side |
120mm fan x 2 (optional) |
|
Power Supply Support |
ATX PS2, EPS 12V (Optional) |
|
Maximum Compatibility - VGA Card Length |
320mm / 12.6 inch (with HDD cage) |
|
Maximum Compatibility - CPU Cooler Height |
163.9mm / 6.5 inch |
|
Legacy |
Cases |
|
Warranty |
2 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
