- Model: H500-WGNN-S00
HAF 500 - White
H500-WGNN-S00
Cooler Master’s classic HAF series is making a return with
HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic
200mm large intake ARGB fans, ensuring unparalleled intake and cooling
efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU
lengths. Ample clearance for dual 360mm radiators on the top and front panel
accommodates the most advanced water cooling setups. Tool-less side panels and
a removable top panel facilitates simplified, hassle-free component
installation without the need to struggle with small spaces.
- Mesh Front Panel – Large filtered intakes promotes high
airflow, keeping internal components running at optimal temperature.

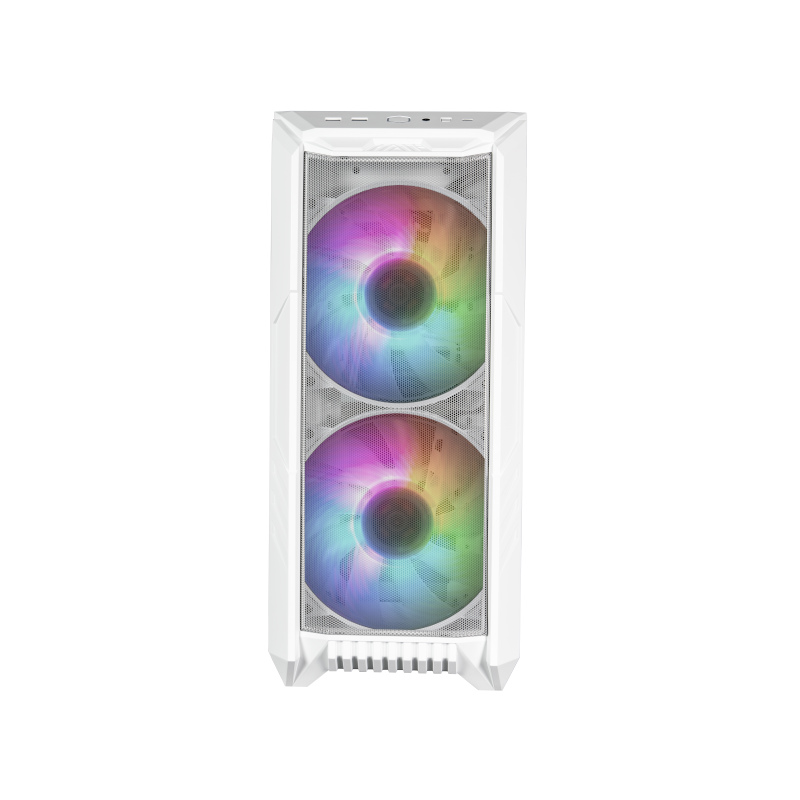

- Dual 200mm ARGB Fans – Iconic 200mm ARGB fans embedded in
the core of the HAF Series in design and function move high volumes of air
quietly and effectively due to their large size. Utilizing the included hub,
ARGB lighting can be customized to create a comprehensive theme to match your
build.
- Rotatable GPU Fan – A 120mm fan positioned on top of the HDD
cage, provides dedicated GPU cooling to ensure maximum performance. The fan
bracket can be rotated to accommodate various GPU size and configurations.
- USB 3.2 Gen 2 Type C Support – USB 3.2 Gen 2 Type C ports
built into the I/O panel allows multi-purpose, streamlined data transmission.
- Screwless & Tool-Free TG Side Panel Design– The tempered
glass side panel is secured with pins for easy removal, facilitating quick
access to the internals without the use of tools. An optional screw can be
installed to further secure the tempered glass side panel.
- Removable Top Panel – The top panel is entirely removable
for improved access to the components during assembly. Ease of use also
facilitates the mounting of cooling solutions such as fans and radiators.
- Versatile Cooling Options – Support for up to eight 120mm
fans and dual 360mm radiators on the top and front panel ensure high
compatibility for liquid-cooled systems.
Specification |
|
Product Name |
HAF 500 |
Product Code |
H500-WGNN-S00 |
Exterior Color |
White |
Materials |
Exterior: Steel, Mesh, Plastic Left Side Panel: Tempered Glass, Steel |
Dimensions(L x W x H) |
Incl. Protrusions: 516 x 224 x 510mm |
Motherboard Support |
ITX, M-ATX, ATX, SSI CEB, E-ATX* (*up to
12"x14.1", may impact cable management and case features) |
Expansion Slots |
7 |
Drive Bays |
5.25“ ODD: N/A 3.5” / 2.5” Combo: 2 2.5” SSD: 2 |
I/O Panel |
USB Ports: 2 x USB 3.2 Gen 1 (USB 3.0), 1 x USB 3.2 Gen2
type C Audio In / Out: 1 x single Audio jack Other: ARGB Hub |
Pre-installed Fan(s) |
Front: 2 x 200mm ARGB Fans Rear: 1 x 120mm SickleFlow PWM ARGB Internal: 1 x 120mm SickleFlow PWM |
Fan Support |
Top: 3 x 120mm / 2 x 140mm / 2 x 200mm Front: 3 x 120mm / 2 x 140mm / 2 x 200mm *200mm Mounting
Hole Spacing 154 x 154 w/ up to 30mm thickness Rear: 1 x 120mm Top on HDD cage: 1 x 120mm |
Radiator Support |
Top: 120 /140/240 /280 /360mm Front: 120 / 140 / 200 / 240 / 280 / 360mm Rear: 120mm |
Clearances |
CPU Cooler: 167mm / 6.5" Power Supply: 180mm / 7.1" Graphics Card: 410mm / 16.1” |
Cable Routing |
Behind MB Tray: 30mm |
Dust Filters |
Top, Bottom |
Power Supply Support |
Bottom mount, ATX |
Net weight |
9.5kg |
Gross weight |
11.2kg |
Carton dimension (L x W x H) |
588 x 315 x 605mm |
Warranty |
2 Years |
Note* |
Price, feature and specifications
are subject to change without notice. |
