- Model: MB520-KGNN-S00

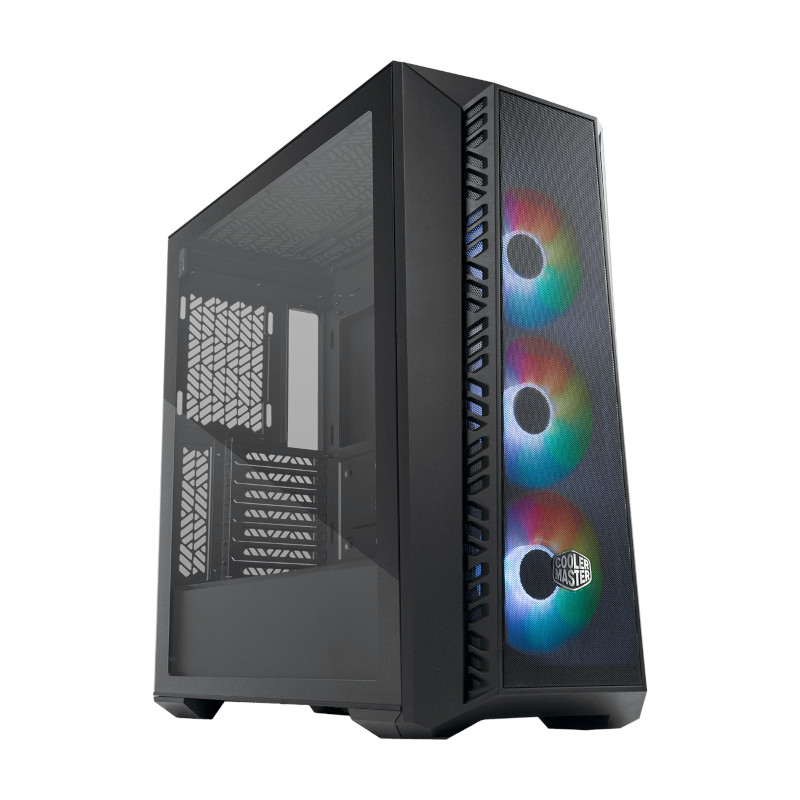

MasterBox 520 Mesh Black
Pick and Play – Pick and choose the best design for your
needs and tastes: tempered glass or FineMesh ventilated front panel designs?
Black or white colorways? Get ready to build, and we’ll take care of the rest.
Three 120mm ARGB Fans Included – Pre-installed ARGB fans
provide ample airflow, ensuring low temperatures, high performance, and eye
catching aesthetics during even the most intense gaming sessions. The included
ARGB/PWM Hub facilitates ease of cable management and allows users to tailor
light effects to match the theme of the build.
Removable Top Panel -The top panel is entirely removable for
improved access to the components during assembly. Ease of use also facilitates
the mounting of cooling solutions such as fans and radiators.
Screwless & Tool-Free TG Side Panel – The tempered glass
side panel is secured with pins for easy removal, facilitating quick access to
the internals without the use of tools. An optional screw can be installed to
further secure the tempered glass side panel.
Versatile Cooling Options – Support for up to seven 120mm
fans and dual 360mm radiators on the top and front panel ensure high
compatibility for liquid-cooled systems.
Removable HDD cage – The HDD cage is completely removable
for improved access during assembly and system upgrades.
Upgraded Removable Dust Filter Bracket – The bottom dust
filter bracket is robust and locked sturdily in place during travel, remaining
easy to remove for cleaning purposes.
Specification |
|
Model Number |
MB520-KGNN-S00 |
Exterior Color |
White |
Materials |
Exterior: Steel, ABS Plastic, Tempered Glass Left Side Panel: Tempered Glass |
Dimensions (L X W X H) |
Incl. Protrusions: 502 x 210 x 498mm Body Size: 443 x 210 x 498mm |
Volume |
50L |
Motherboard Support |
Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX |
Expansion Slots |
7 |
Drive Bays |
5.25” ODD: 0 3.5” HDD: 2 2.5” SSD: 3 |
I/O Panel |
1x USB 3.0 Gen1 Type-A, 1x USB 3.0 Gen2 Type-C, 1x 3.5mm
Headset Jack (Audio + Mic), 1x Reset/ARGB Button |
ARGB Controller |
ARGB/PWM Hub |
Pre-Installed Fans |
Front: 3x 120mm CF120 ARGB Fan |
Fan Support – Top |
3x 120mm, 2x 140mm |
Fan Support – Front |
3x 120mm, 2x 140mm |
Fan Support – Rear |
1x 120mm |
Radiator Support – Top |
120/140/240/280/360mm (recommended maximum thickness – 55mm) |
Radiator Support – Front |
120mm, 140mm, 240mm, 280, 360mm |
Radiator Support – Rear |
120mm |
Clearance - CPU Cooler |
165mm |
Clearance – PSU |
200mm (recommended up to 170mm) |
Clearance – GFX |
410mm |
Dust Filters |
Front, Top, Bottom |
Power Supply Support |
ATX |
Warranty |
2 Years |
Note* |
Price, feature and specifications
are subject to change without notice. |
