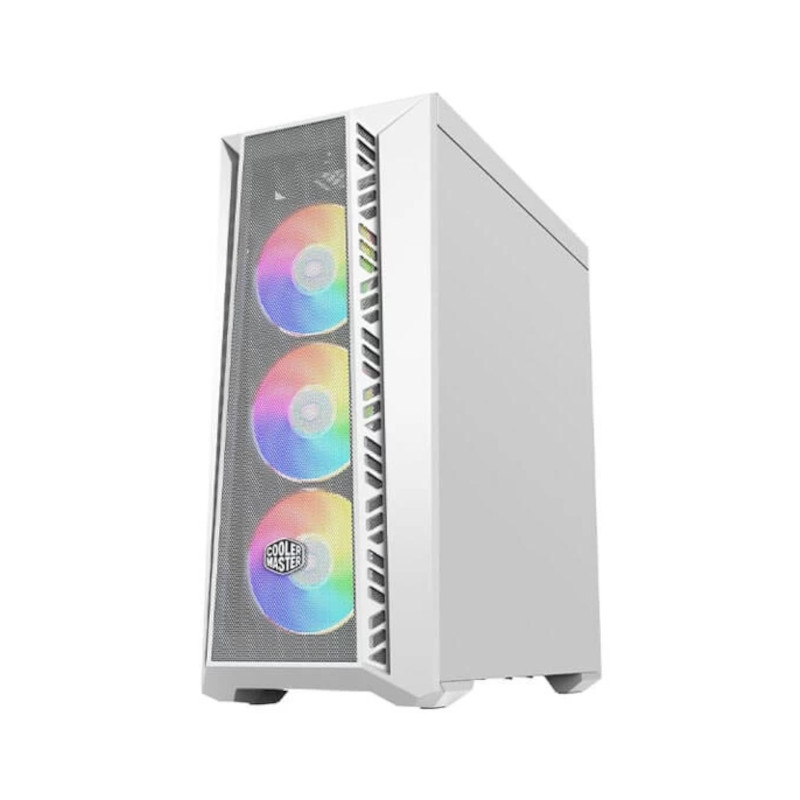

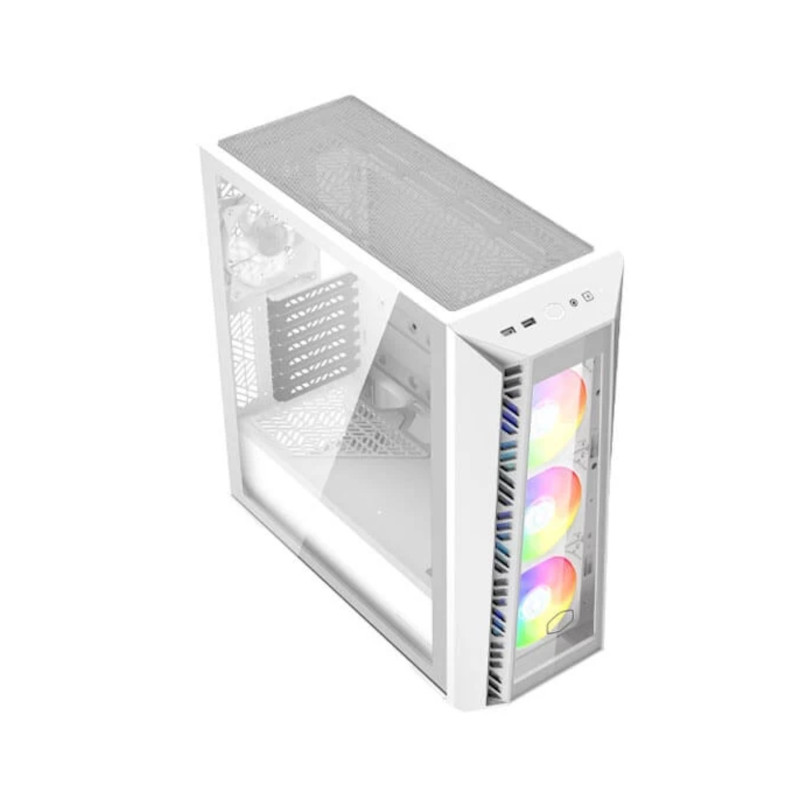

Cooler Master MasterBox 520 Mesh ARGB Mid Tower Cabinet - White

MasterBox 520 Mesh White

Pick and Play – Pick and choose the best design for your needs and tastes: tempered glass or FineMesh ventilated front panel designs? Black or white colorways? Get ready to build, and we’ll take care of the rest.

Three 120mm ARGB Fans Included – Pre-installed ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye catching aesthetics during even the most intense gaming sessions. The included ARGB/PWM Hub facilitates ease of cable management and allows users to tailor light effects to match the theme of the build.

Removable Top Panel -The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

Screwless & Tool-Free TG Side Panel – The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.

Versatile Cooling Options – Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

Removable HDD cage – The HDD cage is completely removable for improved access during assembly and system upgrades.

Upgraded Removable Dust Filter Bracket – The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.



Specification

Model Number

MB520-WGNN-S00

Exterior Color

White

Materials

Exterior: Steel, ABS Plastic, Tempered Glass

Left Side Panel: Tempered Glass

Dimensions (L X W X H)

Incl. Protrusions: 502 x 210 x 498mm

Body Size: 443 x 210 x 498mm

Volume

50L

Motherboard Support

Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX

Expansion Slots

7

Drive Bays

5.25” ODD: 0

3.5” HDD: 2

2.5” SSD: 3

I/O Panel

1x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C, 1x 3.5mm Headset Jack (Audio + Mic), 1x Reset/ARGB Button

ARGB Controller

ARGB/PWM Hub

Pre-Installed Fans

Front: 3x 120mm ARGB Fan

Rear: 1x 120mm Non-LED Fan

Fan Support – Top

3x 120mm, 2x 140mm

Fan Support – Front

3x 120mm, 2x 140mm

Fan Support – Rear

1x 120mm



Radiator Support – Top

120/140/240/280/360mm

(recommended maximum thickness – 55mm)

Radiator Support – Front

120mm, 140mm, 240mm, 280mm

Radiator Support – Rear

120mm

Clearance - CPU Cooler

165mm

Clearance – PSU

200mm (recommended up to 170mm)

Clearance – GFX

410mm

Dust Filters

Front, Top, Bottom

Power Supply Support

ATX

Warranty

2 Years

Note*

Price, feature and specifications are subject to change without notice.
