- Model: MCM-H500P-MGNN-S11

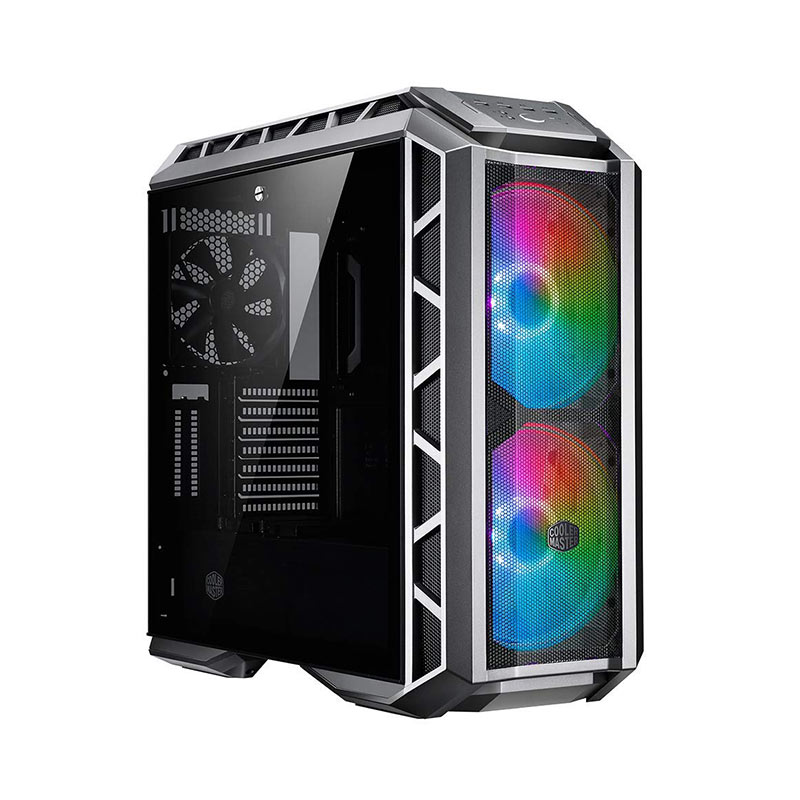

Mastercase H500P Mesh ARGB
- Mind-Blowing Design
- Dual 200mm ARGB Fans
- Mesh Front Panel
- Build By Design
- ARGB Lighting System
- Tempered Glass Side Panel
Specification | |
Model Number | MCM-H500P-MGNN-S11 |
Series | MasterCase Series |
Size | Mid Tower |
Available Color(S) | Gun Metal Grey |
Materials | Steel, Plastic, Tempered Glass, Mesh |
Dimensions (W x H x D) | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch |
Weight | 11.3 kg |
Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to
12" x 10.7", will limit cable management features) |
Expansion Slots | 7+2, (Supports vertical graphics card installation) |
5.25" Drive Bays | N/A |
2.5" / 3.5" Drive Bays (Combo) | 2 |
2.5" Drive Bays | 2 (Max.4) |
I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm
Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter |
Pre-Installed Fans – Front | 2x 200mm ARGB Fan |
Pre-Installed Fans – Rear | 1x 140mm, 1200RPM |
Fan Support – Top | 3x 120/140mm, 2x 200mm |
Fan Support – Front | 3x 120/140mm, 2x 200mm |
Fan Support – Rear | 1x 120/140mm |
Radiator Support – Top | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support – Front | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support – Rear | 120mm, 140mm |
Clearance - CPU Cooler | 190mm |
Clearance – PSU | 220mm |
Clearance – GFX | 412mm/16.2" |
Dust Filters | Top, Front, Bottom |
Power Supply Support | Bottom mount, ATX |
Warranty | 2 Years |
Note* | Price, feature and specifications
are subject to change without notice. |
