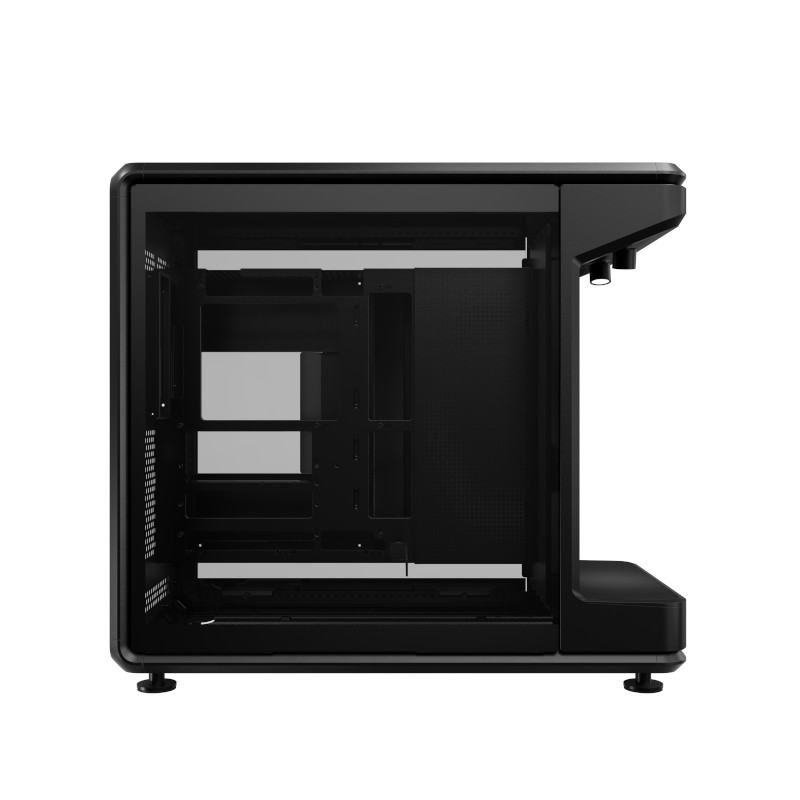

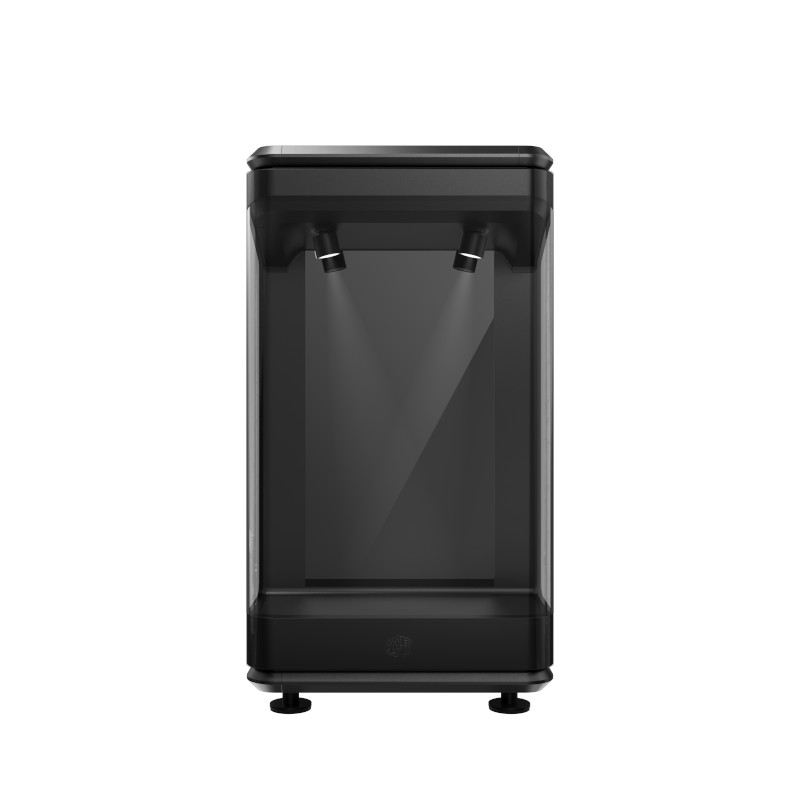

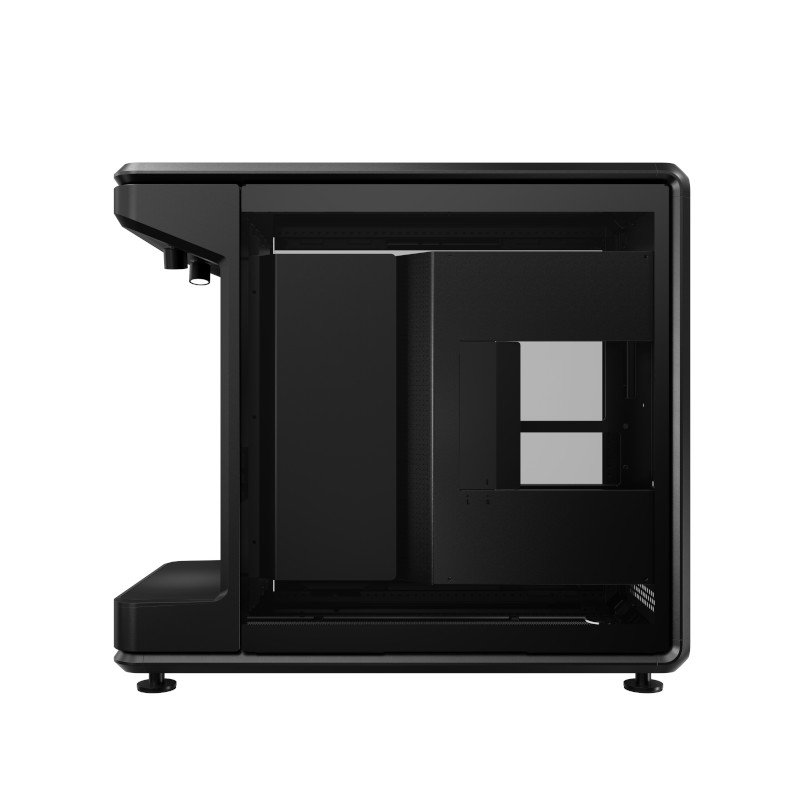

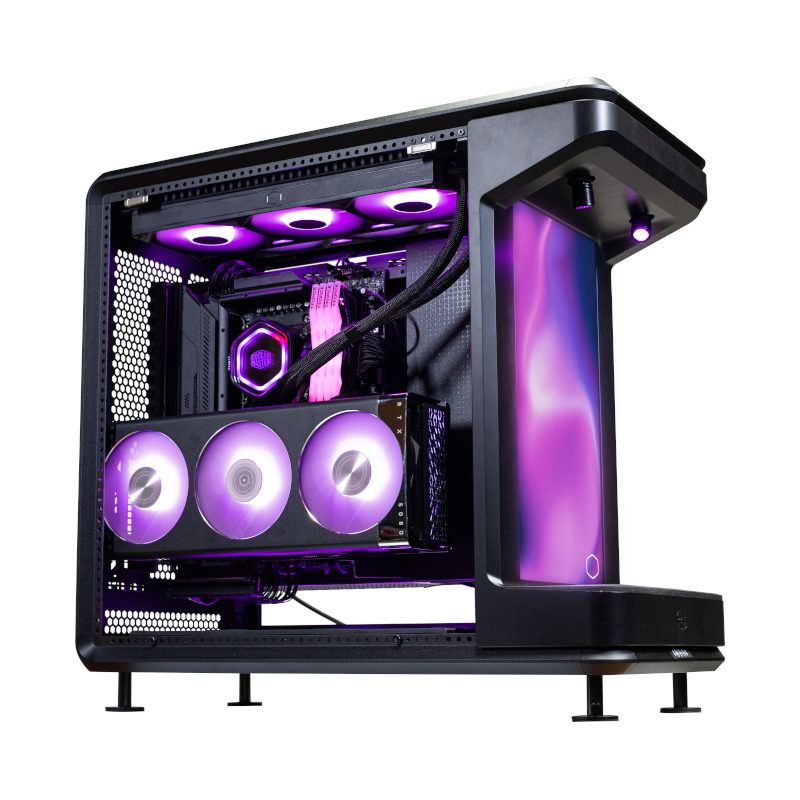

Model Number

MF360-KHNN-S02

Exterior Color

Black

Materials

Exterior: SGCC

Side Panel (Left / Right): TG / TG

Dimensions (L X W X H)

Incl. Protrusions: 549 x 291 x 581 mm

Excl. Protrusions: 511 x 291 x 581 mm

Volume (w/o panel, protrusions and feet): 86L

Volume (with panel, protrusions and feet): 93L

Hardware support

Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)

Power Supply Support: ATX

PCI Expansion Slots: 3.5

Drive Bays

3.5" Drive Bays: 0

2.5" / 3.5" Drive Bays (or SSD): 1x HDD or 2x SSD

Pre-installed Drive Bay

3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity): 1x HDD or 2x SSD

I/O Panel

USB Ports: 2x USB 3.2 Gen 1 Type-A 5G / 1x USB 4.0 Gen 2x2 Type-C 20G

Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

Fan Support

Top: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Radiator Support

Top: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Bottom: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Dust Filters

Removable Filters: Mesh Only

Other electronic components

1x 15.6-inch FHD Screen / 1x PCI-e 5.0 Riser Cable / 2x ARGB spotlight

Maximum Dimensions for Front Collectibles Display

328 x 290 x 110 mm  (H x W x D)

DIY tank & Pump support

Yes (Left side)

Toolbox

Yes

Clearances

CPU Cooler: 145 mm

Power Supply: 210 mm

Graphics Card: 430 mm

Cable Routing

Behind MB Tray: 110 mm

Warranty

2 Years

Note*

Price, features and specifications are subject to change without notice.
