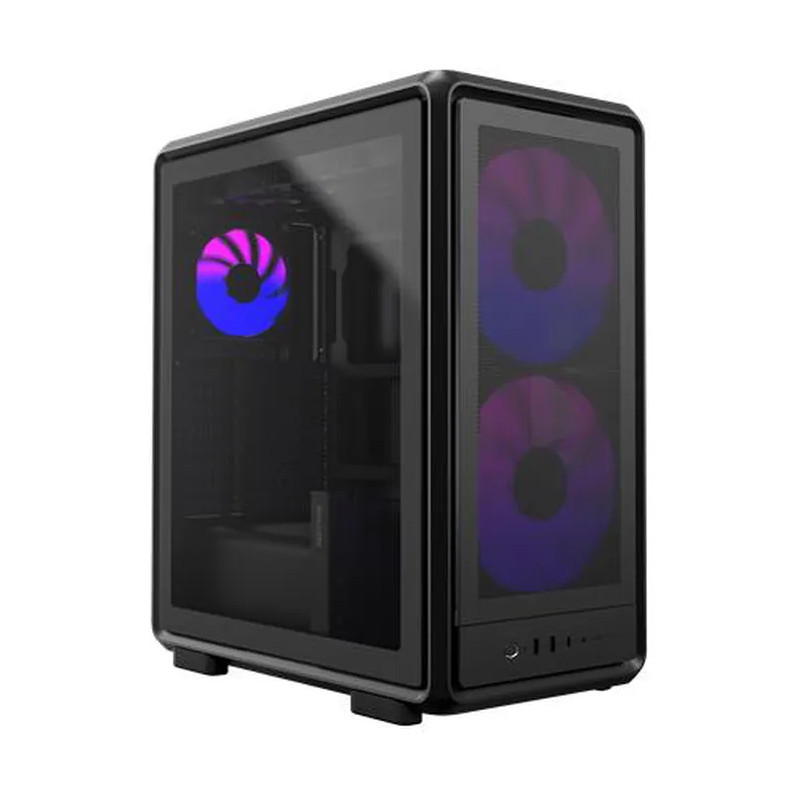

Model Number

MF500M-KHNN-S01

Exterior Color

Black

Materials

Exterior: SGCC Steel, Aluminum

Side Panel (Left / Right): Tempered Glass

Dimensions (L X W X H)

Incl. Protrusions: 471 x 261 x 544 mm

Excl. Protrusions: 454 x 261 x 514 mm

Volume (excluding protrusions): 60.9 L

Hardware support

Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)

Power Supply Support: ATX

PCI Expansion Slots: 8

Drive Bays

3.5" Drive Bays: 0

2.5" / 3.5" Drive Bays (or SSD): 1 (Bottom)

Pre-installed Drive Bay

3.5" Drive Bay (remark Tool-free quantity) / 2.5" Drive Bay(or SSD)(remark Tool-free quantity): 1x 2.5 or 1x 3.5

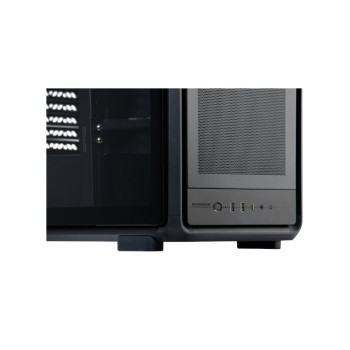

I/O Panel

USB Ports: 2x USB 3.2 Gen 1 Type-A 1x USB 3.1 Gen 2x2 Type-C

Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

Pre-Installed Fans

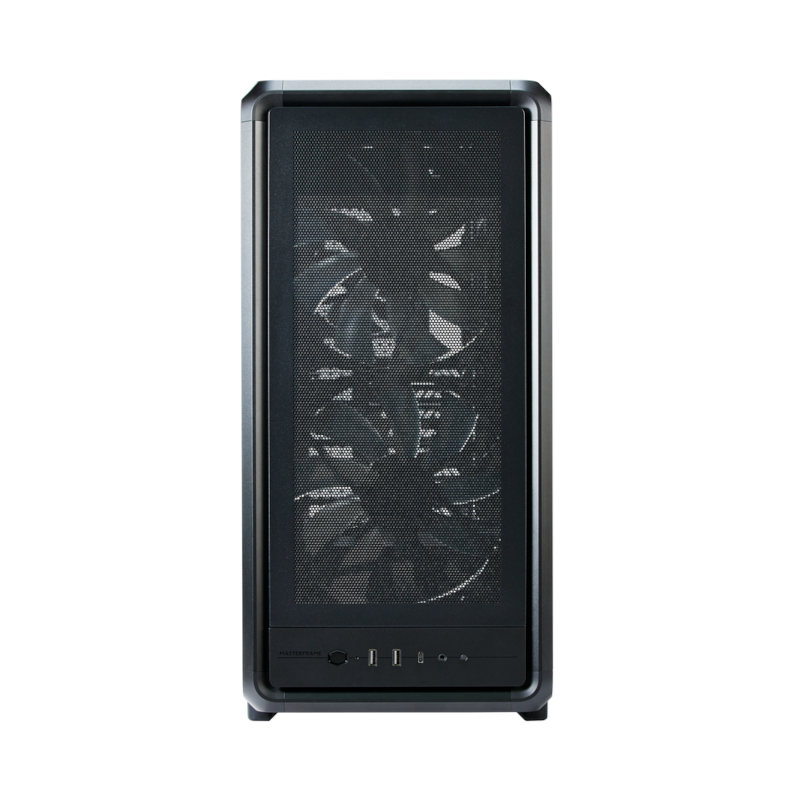

Front: 2x SickleFlow 200mm (ARGB)

Rear: 1x 120mm (ARGB)

Fan Support

Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Rear: 1x 120mm

Bottom: 1x 120mm

Radiator Support

Front: 120 / 140 / 240 / 280 / 360 mm

Top: 120 / 140 / 240 / 280 / 360 mm

Rear: 120 mm

Dust Filters

Removable Filters: Mesh Only

Clearances

CPU Cooler: 190 mm

Power Supply: 235 mm

Graphics Card: 390 mm

Cable Routing

Behind MB Tray: 43 mm

Included Accessories

GPU Support Bracket

Warranty

2 Years

Note*

Price, features and specifications are subject to change without notice.
