Product Name

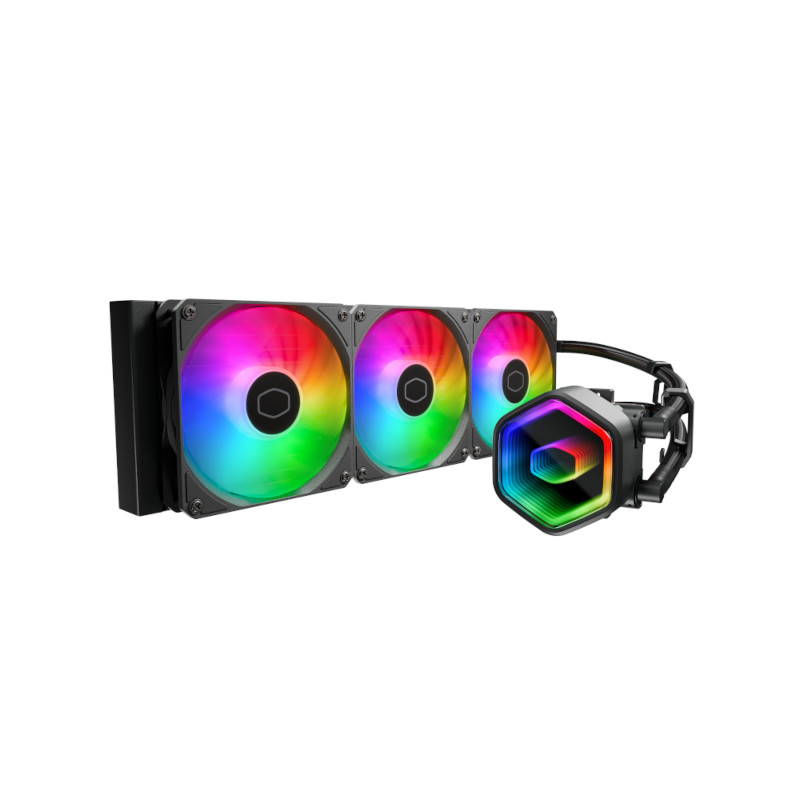

MasterLiquid 360 Core II

Product Number

MLW-D36M-A18PA-R1

Exterior Color

Black

CPU Socket

Intel LGA 1851 / 1700 /1200 /1151 / 1150 /1155 /1156 Socket

AMD AM5 / AM4 Socket

Waterblock Dimension

83 x 76.2 x 52.3 mm

Radiator Material

Aluminum

Radiator Dimensions

394 x 119.2 x 27.2 mm

(15.5 x 4.7 x 1.1 inch)

Tube Length

400 mm (15.75 inch)

Pump Dimension

83 x 76.2 x 52.3 mm

(3.3 x 3 x 2.1 inch)

Pump Profile

Addressable RGB

Pump Speed

3100 ± 300 RPM

Pump MTTF

>50,000 Hours

Pump Noise Level

25 dB(A)

Pump Connector

3-Pin

Pump Rated Voltage

12 VDC

Pump Power Consumption

3.6W

Fan Dimensions (L x W x H)

120 x 120 x 25 mm

(4.7 x 4.7 x 1 inch)

Fan Quantity

3 PCS

Fan LED Type

Addressable RGB

Fan Speed

650-1750 RPM ± 10%

Fan Airflow

120 m3/h (70.5 CFM)

Fan Noise Level

30 dB(A)

Fan Pressure

2 mmH₂O (Max)

Fan Bearing Type

Sleeve Bearing

Fan MTTF

>160,000 Hours

Fan Connector

7-Pin (PWM+ARGB)

Fan Rated Voltage

12 VDC

Fan Rated Current

0.23A

Fan Safety Current

0.45A

Power Consumption

2.76W

Warranty

5 Years

Note*

Price, feature and specifications are subject to change without notice
