- Model: MLX-D24M-A18P2-R1

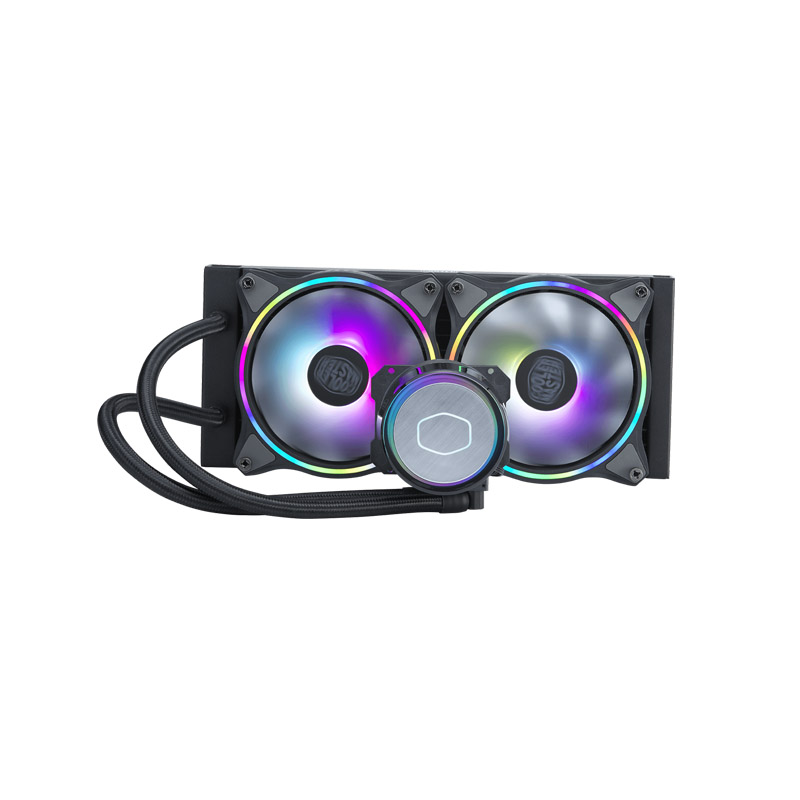

MASTERLIQUID ML240 ILLUSION (Black)
SEE IT TO BELIEVE IT
The MasterLiquid ML-Illusion series redefines lighting
visuals with all new design features to the MasterLiquid Series. With 12
Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the
color options are spectacularly customizable. Complemented with MasterFan MF120
Halo fans lighting features are more than even visual enthusiasts can handle.
The Illusion is not only elegant, but extremely capable as well, featuring the
3rd generation Dual Chamber Pump for excellent cooling performance.

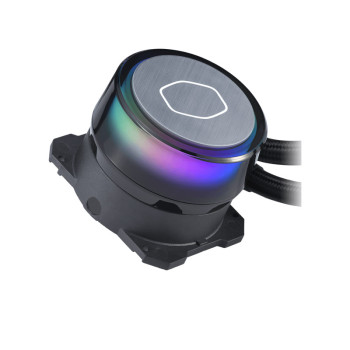

TRANSLUCENT DOME
Stunning lighting visuals with translucent water chamber
dome and rotatable logo. Compatible with software customization
NEW 3RD GEN DUAL CHAMBER PUMP
Experience a quieter cooling performance with an improved
design on the internal impeller and housing to enhance the cooling performance
and efficiency while lowering the noise level.
EXPANDED DISSIPATION SURFACE AREA
Widened radiator water channels for increased cooling
surface area.
MASTERFAN MF120 HALO
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB
LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant
display of color.
NEW ADDRESSABLE GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler
Master's MasterPlus+ software Customizing each individual LED in color, effect,
brightness, and more - all from an intuitive, convenient interface
Specification |
|
Product Number |
MLX-D24M-A18P2-R1 |
Exterior Color |
Black |
Series |
MasterLiquid |
Cooler Type |
Liquid Cooler |
CPU Socket |
LGA1700*, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
Radiator Size |
240 |
Radiator Dimensions |
277 x 119.6 x 27.2
mm / 10.9 x 4.7 x 1.1 inch |
Radiator Material |
Aluminum |
Fan Dimension |
120 x 120 x 25 mm
(4.7 x 4.7 x 1″) |
Fan Quantity |
2 PCS |
Fan LED Type |
Addressable Gen 2
RGB |
Fan Speed |
650-1800 RPM ± 10% |
Fan Airflow |
47.2 CFM (Max) |
Fan Air Pressure |
1.6 mmH2O (Max) |
Fan Noise Level
(dB-A) |
6 – 30 dBA |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.25A |
Fan Power Connector |
4-Pin (PWM) |
Fan Life Expentancy |
160,000 Hours |
Pump Dimension |
81.4 x 76 x 57.8 mm
/ 3.2 x 3 x 2.3 inch |
Pump MTTF |
70,000 Hours |
Pump Noise Level |
< 10 dBA |
Pump Connector |
3-Pin |
Pump Power
Consumption |
2.36W (LED 2.21W) |
Pump Rated Voltage |
12 VDC |
Warranty |
3 Years |
Note* |
Price, feature and specifications
are subject to change without notice |
