- Model: MLW-D24M-A18PA-R1

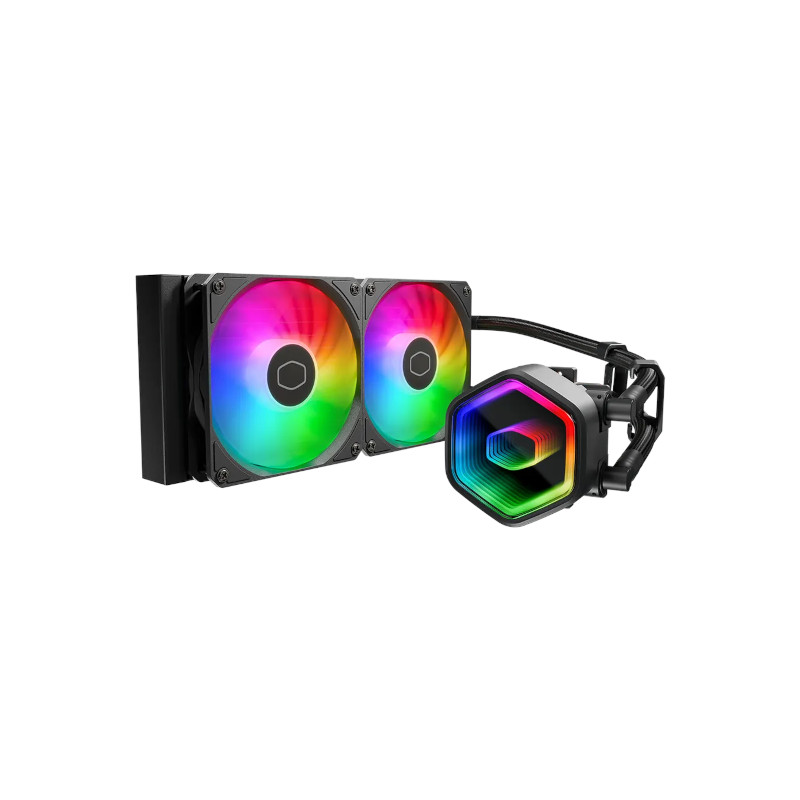

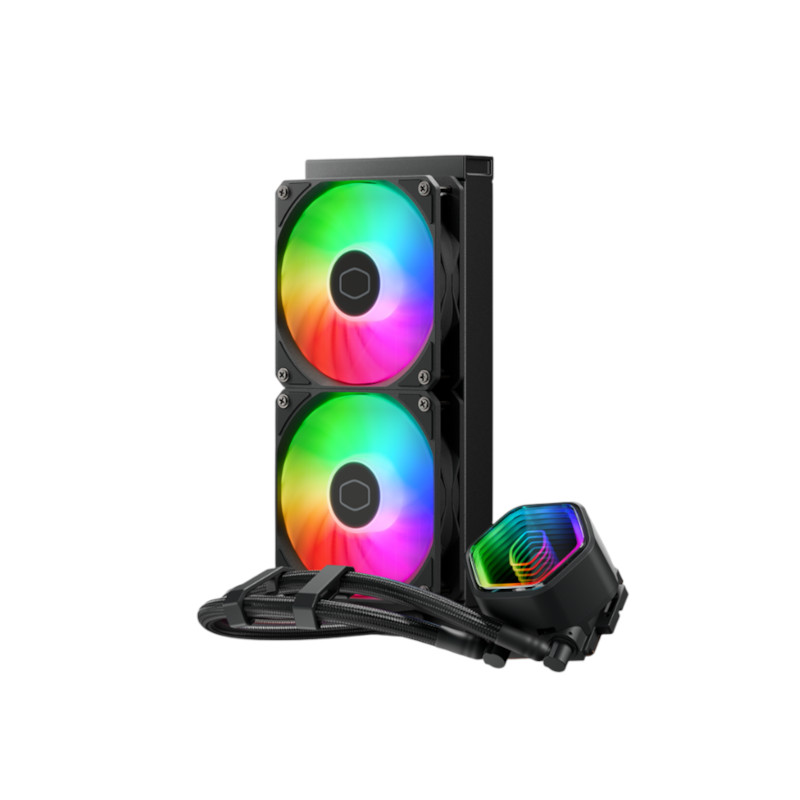

MASTERLIQUID 240 CORE II
MLW-D24M-A18PA-R1

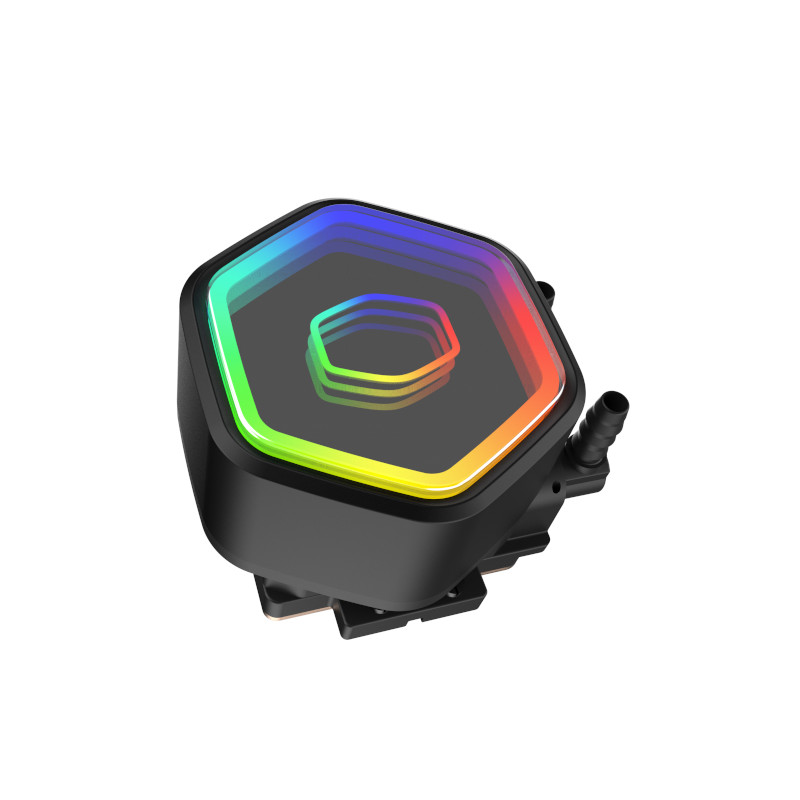

- DUAL CHAMBER PUMP - Upgraded design resulting in a compact
cooler with superior performance
- UPDATED CPU COMPATIBILITY - The Core II is compatible with
all of the latest AMD and Intel CPUs

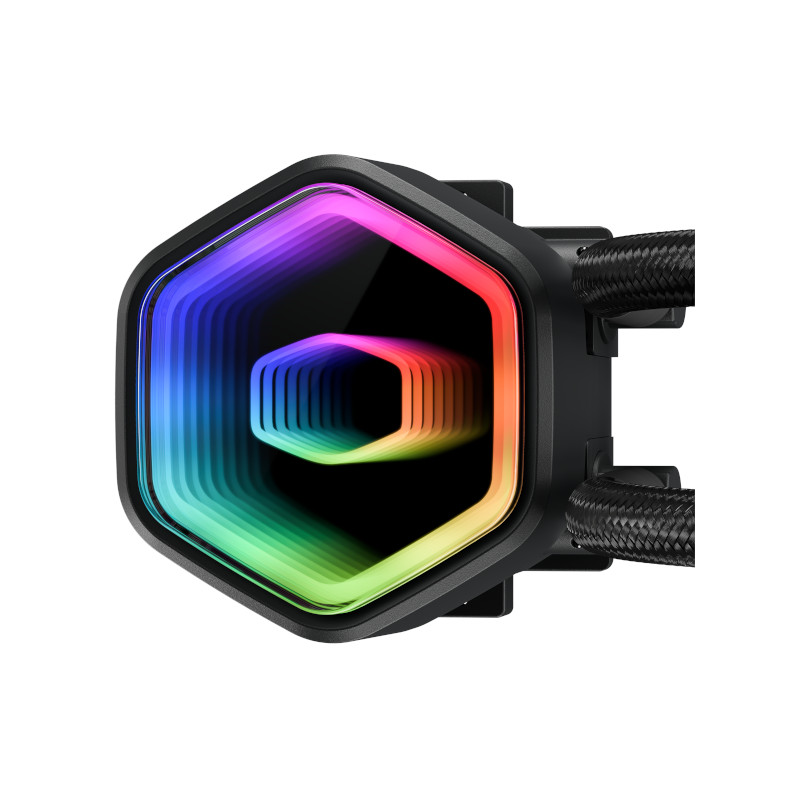

- INNOVATIVE DESIGN - An infinity mirror pump cover gives the
pump a stellar aesthetics
- REVAMPED FANS - The brand-new fan blades and revamped
aesthetics deliver outstanding performance and a fresh look
- EASY INSTALLATION - Now includes a quick-mount kit
compatible with all mainstream processor sockets, along with pre-installed fans
- OPTIMUM TUBING LENGTH - 400 mm long tubing enables
effortless mounting of the cooler in any orientation
Specification | |
Product
Name | MasterLiquid
240 Core II |
Product
Number | MLW-D24M-A18PA-R1 |
Exterior
Color | Black |
CPU
Socket | Intel
LGA 1851 / 1700 /1200 /1151 / 1150 /1155 /1156 Socket AMD AM5
/ AM4 Socket |
Radiator
Material | Aluminum |
Radiator
Dimensions | 277 x
119.2 x 27.2 mm / 10.9 x 4.7 x 1.1 inch |
Pump
Dimension | 83 x
76.2 x 52.3 mm (3.3 x
3 x 2.1 inch) |
Pump
Profile | Addressable
RGB |
Pump
Speed | 3100 ± 300
RPM |
Pump
MTTF | >50,000
Hours |
Pump
Noise Level | 25
dB(A) |
Pump
Connector | 3-Pin
ARGB + 4-Pin PWM |
Pump
Rated Voltage | 12 VDC |
Pump
Power Consumption | 3.6W |
Fan
Dimensions (L x W x H) | 120 x
120 x 25 mm (4.7 x
4.7 x 1 inch) |
Fan
Quantity | 2 PCS |
Fan LED
Type | Addressable
RGB |
Fan
Speed | 650-1750
RPM ± 10% |
Fan
Airflow | 120
m3/h (70.5 CFM) |
Fan
Noise Level | 30
dB(A) |
Fan
Pressure | 2 mmH₂O
(Max) |
Fan
Bearing Type | Sleeve
Bearing |
Fan
MTTF | >160,000
Hours |
Fan
Connector | 7-Pin
(PWM+ARGB) |
Fan
Rated Voltage | 12 VDC |
Fan
Rated Current | 0.23A |
Fan
Safety Current | 0.45A |
Power
Consumption | 2.76W |
Warranty | 5 Years |
Note* | Price, feature and
specifications are subject to change without notice |
