Product Name

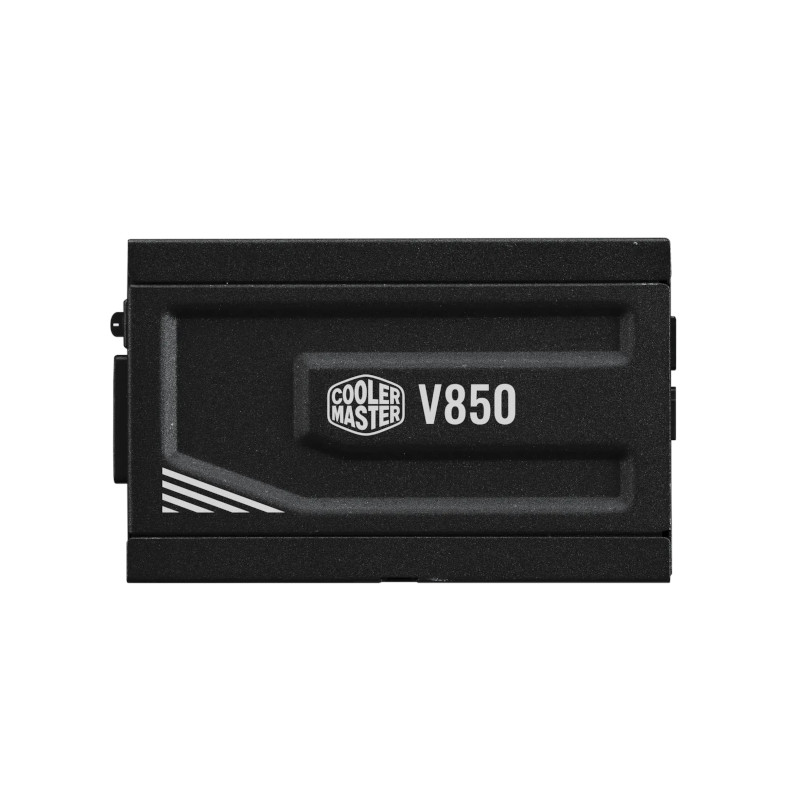

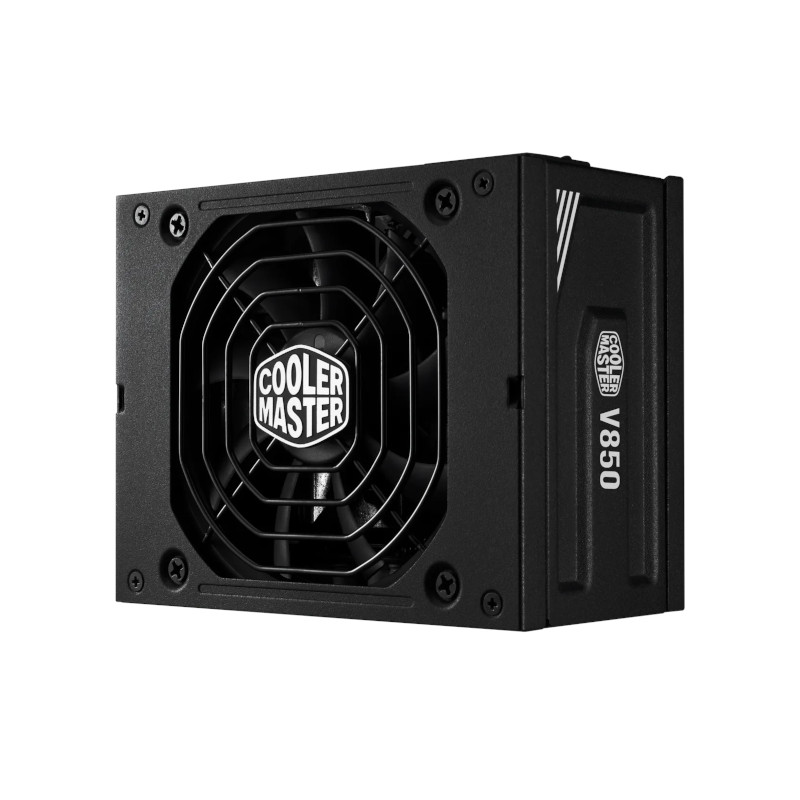

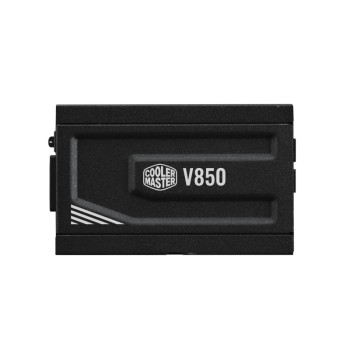

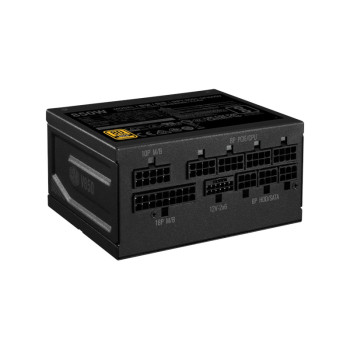

V SFX Gold 850 ATX 3.1

MODEL

MPY-8501-SFHAGV-3EIN

ATX VERSION

ATX3.1 & SFX 12V Ver. 3.42

PFC

Active PFC

INPUT VOLTAGE

100-240V

INPUT CURRENT

12-6A

INPUT FREQUENCY

50-60Hz

DIMENSIONS (L X W X H)

100 x 125 x 63.5mm

FAN SIZE

92mm

FAN BEARING

FDB

EFFICIENCY

90% @ Typical Load

80 PLUS RATING

80 PLUS Gold

ERP 2014 LOT 3

Yes

OPERATING TEMPERATURE

0~50°C

POWER GOOD SIGNAL

100-500ms

HOLD UP TIME

16ms

MTBF

>100,000 hours

PROTECTIONS

OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection

REGULATORY

TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA

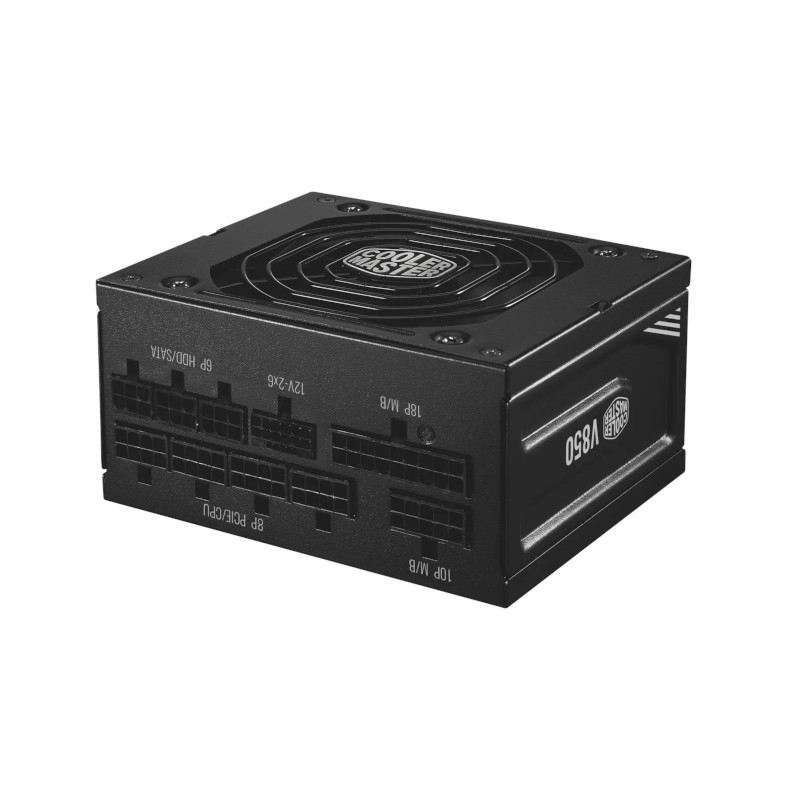

Connectors

ATX 24 Pin x1 = 1x (300mm)

EPS 4+4 Pin x1 = 1x (450mm)

EPS 8 Pin x1 = 1x (450mm)

SATA x8 = 2x (100+115+115+115mm)

Peripheral 4 Pin x4 = 1x (100+115+115+115mm)

PCI-e 6+2 Pin x4 = 2x (400+120mm)

12V-2x6 x1 = 1x (400mm)

Net Weight

1.42 kg

Gross Weight

1.86 kg

Package Dimensions

260 x 190 x 100mm (10.24 x 7.48 x 3.94")

Warranty

10 Years

Note*

Price, feature and specifications are subject to change without notice
