Product Name

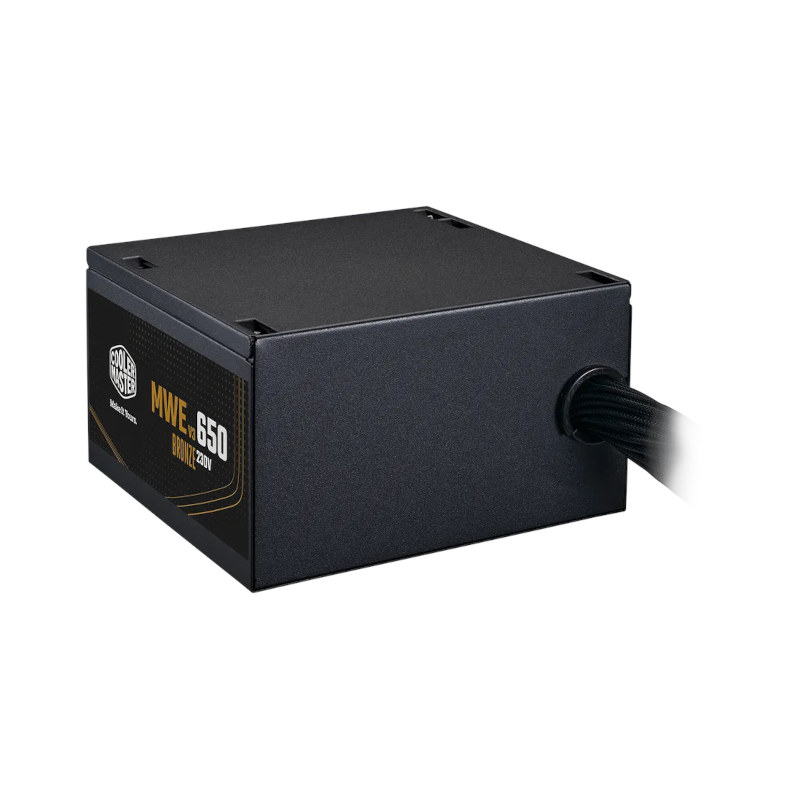

MWE Bronze 650 V3 230V

Item Code

MPE-6501-ACABW-3BIN

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

200 - 240V

Input Current

5A

Input Frequency

50 - 60Hz

Dimensions (L x W x H)

140 x 150 x 86mm

Fan Size

120 mm

Fan Bearing

HDB

Efficiency

≥ 88% @ Typical Load

80 PLUS Rating

80 PLUS Bronze

ErP 2014 Lot 3

Yes

Operating Temperature

0 ~ 40℃

Power Good Signal

100 - 150ms

Hold Up Time

≥ 16ms

MTBF

>100,000 hours @ 25℃ ambient

Protections

UVP / OVP / OPP / OTP / SCP

Regulatory

TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)

Connectors

ATX 24 Pin: x1 = 1x (500mm)

EPS 8Pin / 4+4 Pin: x2 = 1x (550+120mm)

SATA: x6 = 2x (400+150+150mm)

Peripheral 4 Pin: x3 = 1x (400+150+150mm)

PCI-e 6+2 Pin: x4 = 2x (500+120mm)

Weight

Net: 1.65 kg

Gross: 2.05 kg

Package Dimensions

245 x 190 x 110mm (9.65 x 7.48 x 4.33")

Warranty

5 years

Note*

Price, feature and specifications are subject to change without notice.
