Product Name

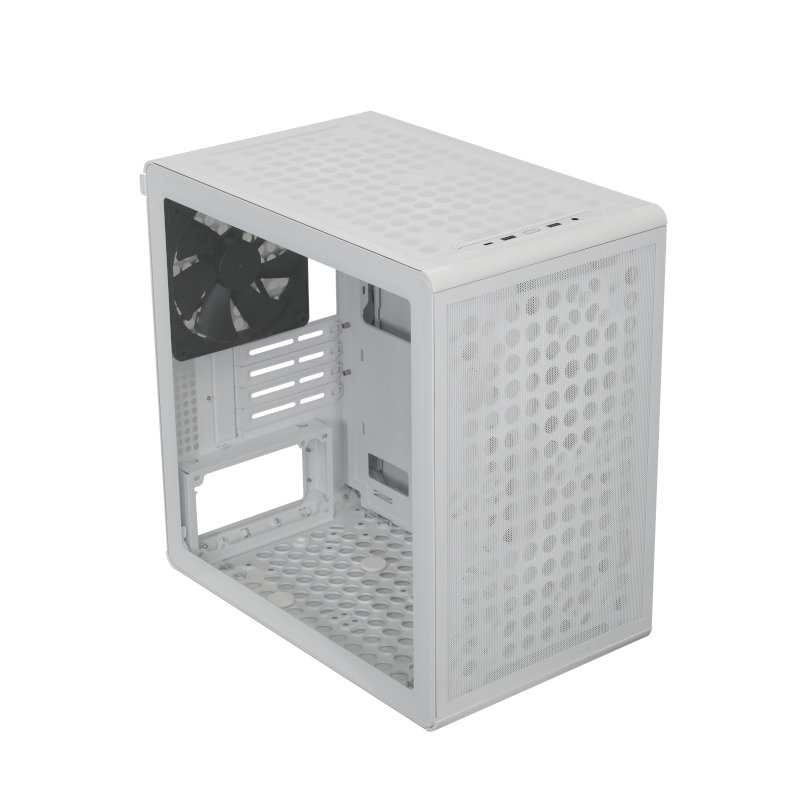

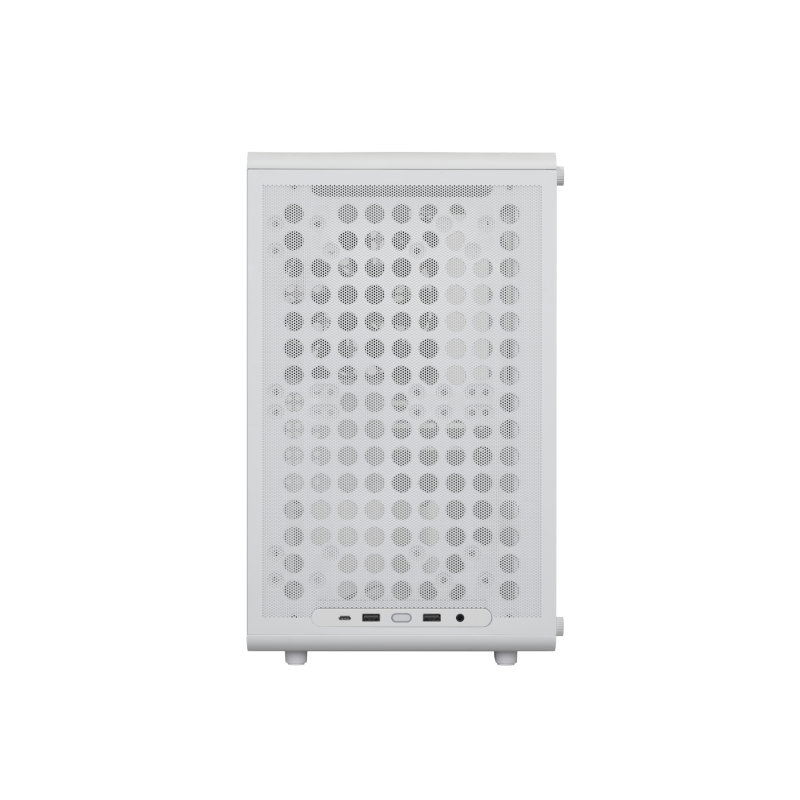

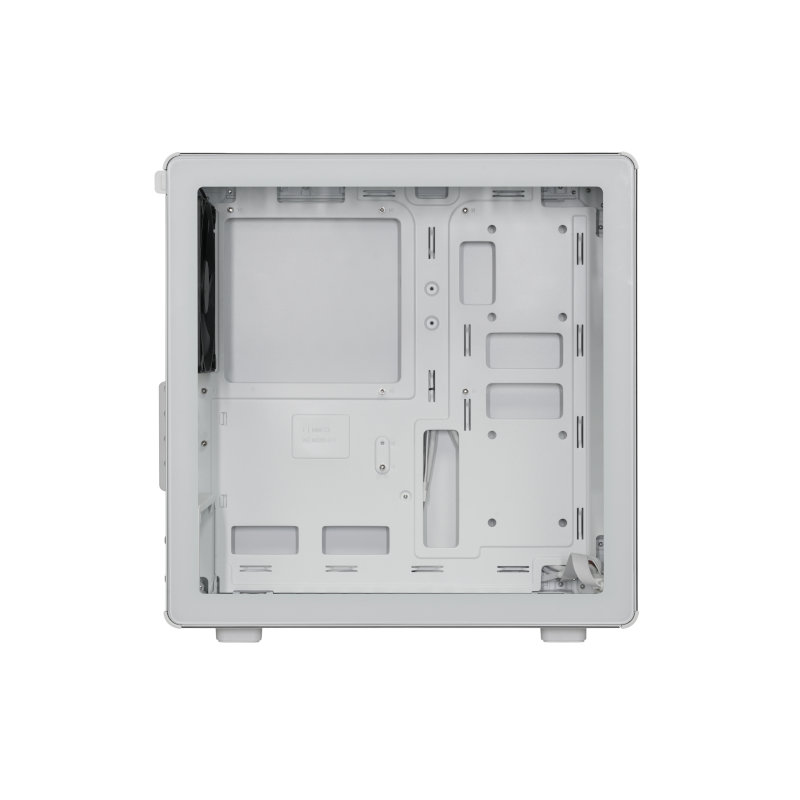

Q300L V3

Product Number

Q300LV3-WGNN-S00

Exterior Color

White

Materials

SGCC + TG / Mesh

Dimensions

(L x W x H)

Incl. Protrusions: 386.1 x 230 x 388.5 mm

Excl. Protrusions: 374 x 230 x 374 mm

Volume (incl. Protrusions): 34.5 L

Volume (excl. Protrusions): 32.17 L

Motherboard Support

Mini-ITX, Micro-ATX

Expansion Slots

4

Drive Bays

5.25” Drive Bay: NA

3.5” Drive Bay: 1

3.5”  / 2.5” Combo: 1

2.5” Drive Bay: 2 (max 4)

I/O Panel

2 x USB 3.2 Gen1 Type-A

1 x USB 3.2 Gen 2x2 Type-C

1 x 3.5 Mic / Audio Combo Jack x1

Fan Support

Front: 2 x 120mm / 2 x 140mm

Top: 2 x 120mm / 2 x 140mm

Rear: 1 x 120mm / 1 x 140mm

Bottom: 1 x 120mm / 1 x 140mm

Pre-installed Fans

Rear: 1 x 140 mm non-ARGB Black

Radiator Support

Front: 240 / 120 mm

Top: 240 / 120 mm

Rear: 120mm

Clearances

CPU Cooler: 178mm

Power Supply: 200mm (without bottom fan installed) / 140mm (with bottom fan installed)

Graphics Card: 366mm (without front fan installed)

Cable Routing (Behind MB Tray): 30mm

Power Supply Support

ATX

Dust Filters

Top / Front / Bottom

Warranty

2 Years

Note*

Price, feature and specifications are subject to change without notice.
