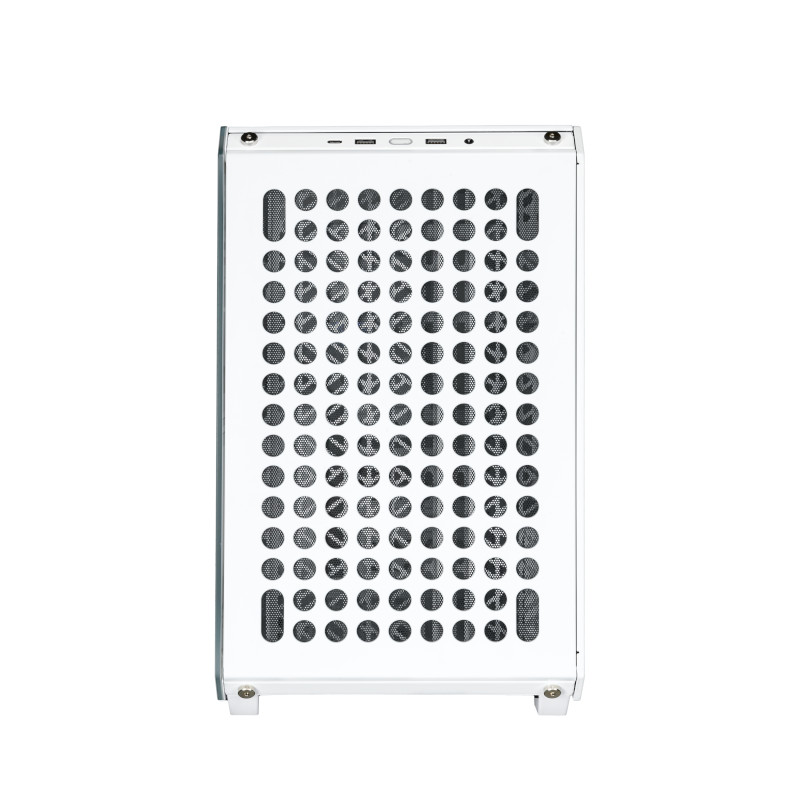

QUBE 500 FLATPACK WHITE
Q500-WGNN-S00
Introducing the all-new QUBE 500, a highly customizable flat
pack case from Cooler Master that allows you to emphasize your own personal
style and creativity. The QUBE 500 comes flat packed and
disassembled, designed to offer a fun, easy, and satisfying build
experience that starts from scratch. Plus, The QUBE 500's innovative packaging
greatly reduces its transportation carbon footprint and overall environmental
costs. From dual 280mm radiator slots and 8 fan locations to EATX support, this
case has all you need for a modern build, All at a super compact size of just
33L.
Due to the removable nature of the flat pack design, its super easy to open any
panel, plug or unplug cables, and close it again without issue. This level of
modularity is also great for customization, allowing you to adjust the case
however you want to. We intend to create a change in the industry with the
QUBE 500 by giving users an eco-friendly case solution that is easier to
build, has all the specs you could want, and is highly customizable.
- DIY for everyone - An efficient and eco-friendly flat pack
design allows for a fun and flexible build experience that both beginners
and long-time builders can enjoy.
- Build as you unbox - From the moment you open the box, the
build begins with fun and easy step-by-step instructions.
- Highly customizable - An unprecedented level of
customizability allows full creative expression.
- Fully modular - Features modular panels that simplify and
streamline the usual case prep process. Every panel is separately removable for
easy maintenance.
- Full-sized specs, pint-sized body - Despite its compact
size at 33L, the QUBE 500 can house almost anything you would expect from
a larger case, from EATX Motherboards and the latest GPUs to dual 280mm
radiators.
- Color your way - Fully express yourself with the multi-color
Macaron edition. It includes two sets of extra panels, an extra handlebar and
two accessory hooks. Because all the panels are modular you can create 3
different color cases or mix and match.
Specification |
|
Product Name |
QUBE 500 Flatpack White |
Product Number |
Q500-WGNN-S00 |
Exterior Color |
White |
Materials |
Exterior: Steel, Plastic, TG Left Side Panel: Grey TG + Steel |
Dimensions (L x W x H) |
Incl. Protrusions: 406 x 231 x 415mm Excl. Protrusions: 380 x 231 x 381mm |
Volume |
33.44 L |
Motherboard Support |
ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX
PSU, up to 273 w/ ATX PSU) |
Expansion Slots |
7 |
Drive Bays |
5.25“ ODD: NA 3.5” HDD: Max. 4x 3.5” HDD 2.5” SSD: Max. 3x 2.5” SSD |
I/O Panel |
USB Ports: 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2
Type C Audio In / Out: 3.5mm Combo x 1 |
Pre-installed Fan(s) |
Front: N/A Top: N/A Rear: 120mm x 1 (1800 rpm) SF White PWM |
Fan Support |
Front: 120/140mm x 1 (x2 if PSU is mounted in bottom) Top: 120/140mm x 2 Rear: 120mm x 1 Bottom: 120/140mm x 2 Left Side: 120/140mm x 2 |
Radiator Support |
Front: 120/140 mm (240/280mm w/ PSU in bottom) Top: 120/140/240/280mm (280mm can be used within 53mm
thickness) Rear: 120mm Bottom: 120/140/240/280mm Left Side: 120/140/240/280mm |
Clearances |
CPU Cooler: 164mm~172mm (Remove the water cooling bracket) Power Supply: 173mm to first GPU slot, 216 maximum space
(w/o cable management space) / 332mm space mounted in bottom (w/o cable
management space) Graphics card: 365mm |
Cable Routing space |
Behind MB Tray: 29~32mm |
Handle |
Grey x 1 |
Gem Mini |
Grey x 1 |
Accessory Hook |
NA |
Dust Filters |
Front, Top, Bottom, Right side |
Net weight |
7.80 kg |
Gross weight |
9.42 kg |
Carton dimension (L x W x H) |
513 x 453 x 146mm |
Power Supply Support |
SFX / SFX-L / ATX |
Warranty |
2 Years |
Note* |
Price, feature and specifications
are subject to change without notice. |
